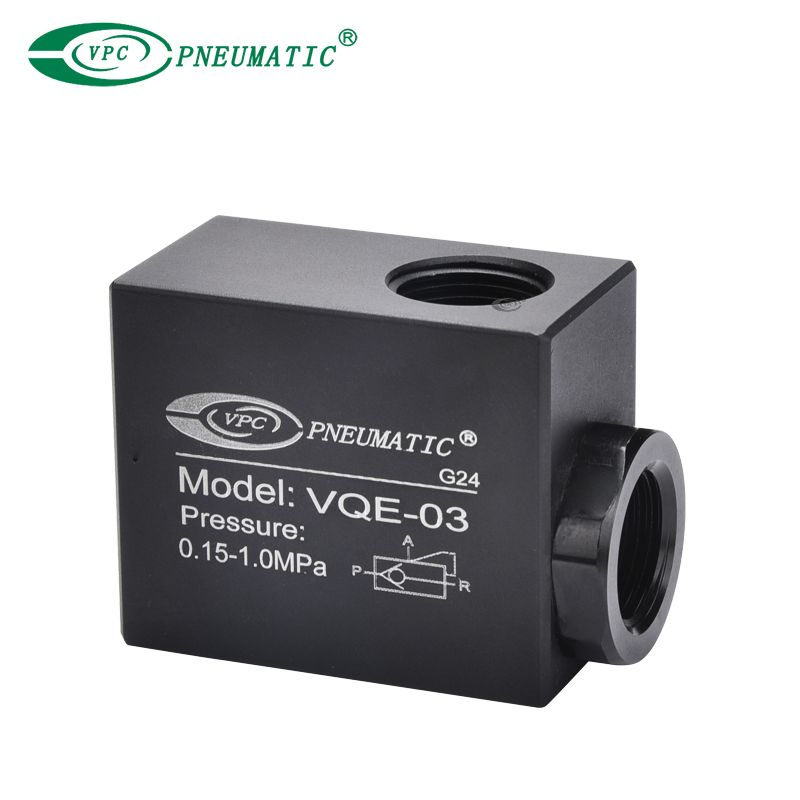

VQE Series Quick Exhausting Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
VQE Series Quick Exhausting valve widely use in the pneumatic system highest place ,Turning place or anywhere that air shut-in,It can Quickly exhausting shut-in air keep the system pipe through and keep the components motion smoothly,and safely.

  • VQE-02

  • VPC Pneumatic

  • 8412909000

Working medium:
Clean air
Working pressure:
0.05 to 0.9Mpa
Working temperature:
0 to 60℃
Body Material:
Aluminum
Quality Warranty:
1 year
Availability:
Inquire Add to Basket

Product Description

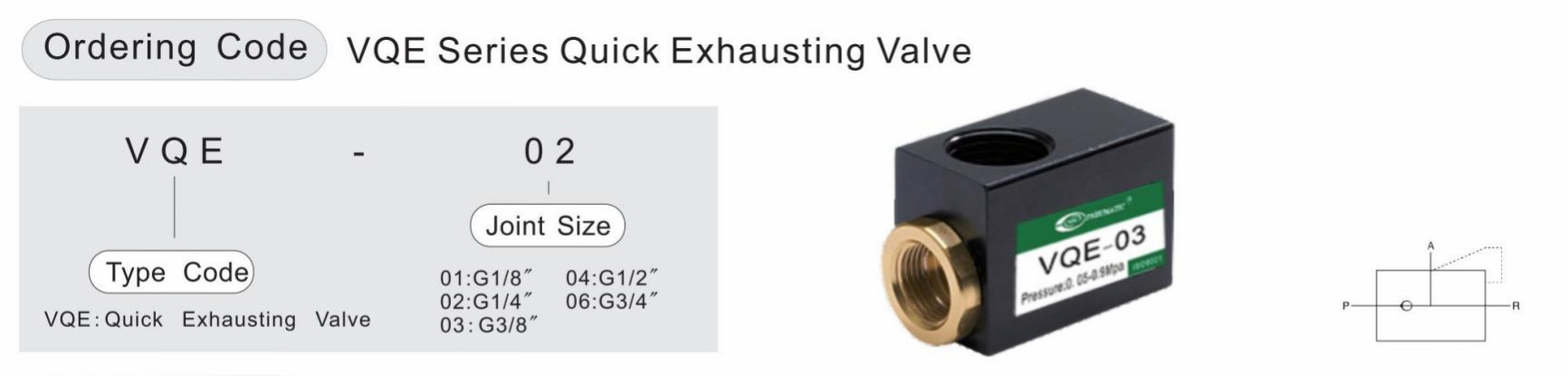

VQE 参数

Product Specifications

ModelVQE-01VQE-02VQE-03VQE-04VQE-06
Working MediumClean air(40μm Filteration)
MaterialAluminum
Working Pressure0.05 to 0.9Mpa
MAX. Pressure1.0Mpa
Working Temperature0 to 60℃
Sectional area
16mm227mm228mm271mm273mm2
Max.flow(L/min)
8861823230030003848
Joint SizeG1/8"G1/4"G3/8"G1/2"G3/4"

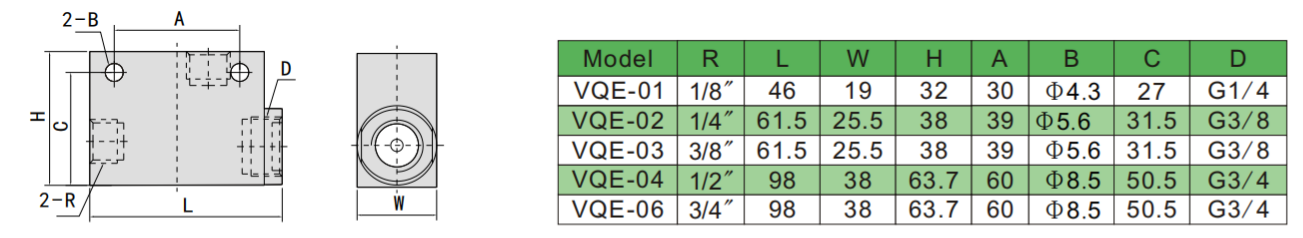

Main Dimensions

VQE参数-1
