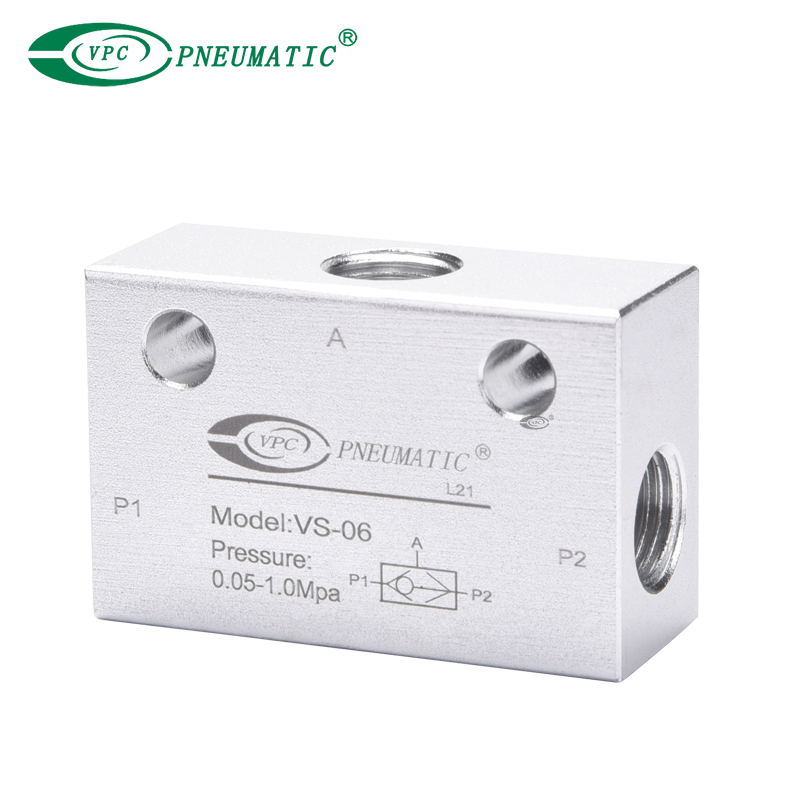

VS Series Shuttle Valve

  • HSV series shuttle valve can provide pressure for two different sources of fluid;
  • HSV series shuttle valve can be used in pneumatic system and hydraulic system;
  • The can operate multiple switches on one machine,achieve the effect of one machine with multiple uses;
  • Shuttle valve provides brake control in pneumatic winch applications;
  • Air pilot control: converting from air to oil results in locking of the cylinder.
Working medium:
Working pressure:
Working temperature:
Body Material:
Quality Warranty:
  • VS-06
  • VPC Pneumatic
  • 8412909000

Product Description

VS 参数

Product Specifications

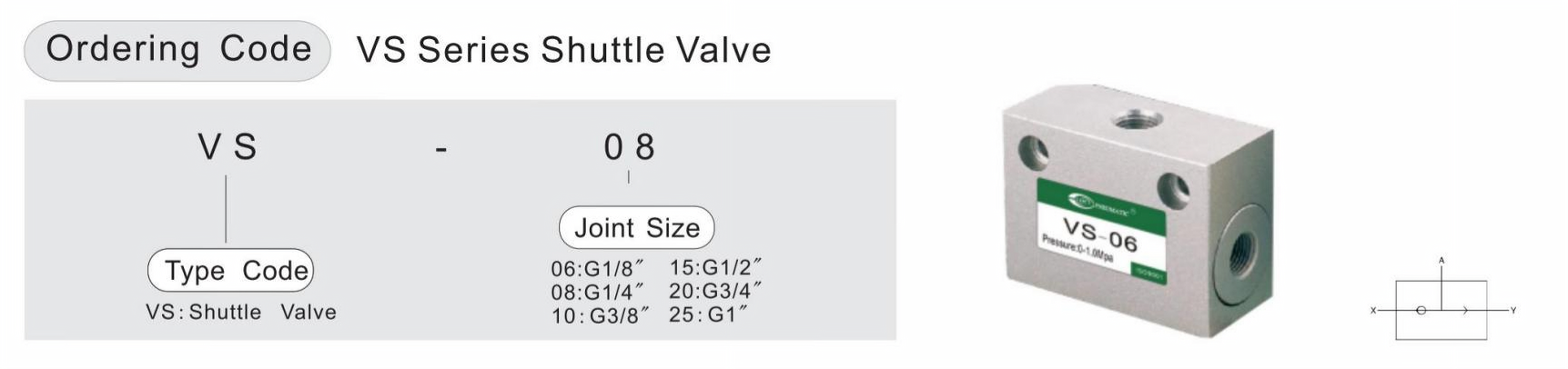

ModelVS-06VS-08VS-10VS-15VS-20VS-25
Working MediumClean air(40μm Filteration)
Acting typeExternal control
Working Pressure0.05 to 1.0Mpa
Max.Pressure1.2Mpa
Working Temperature-5 to 60℃
Joint SizeG1/8"G1/4"G3/8"G1/2"G3/4"G1"

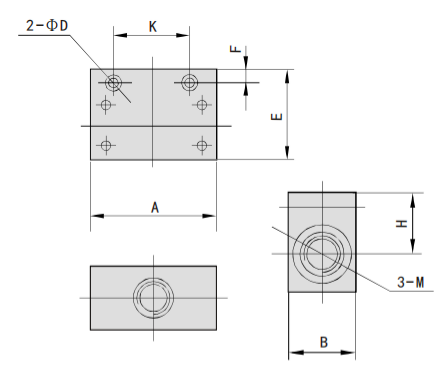

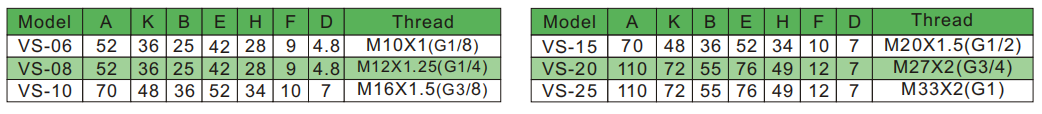

Main Dimensions

VS参数-1VS参数-2
