| Working medium: | |
|---|---|
| Applicable tube: | |
| Thread: | |
| Body color: | |

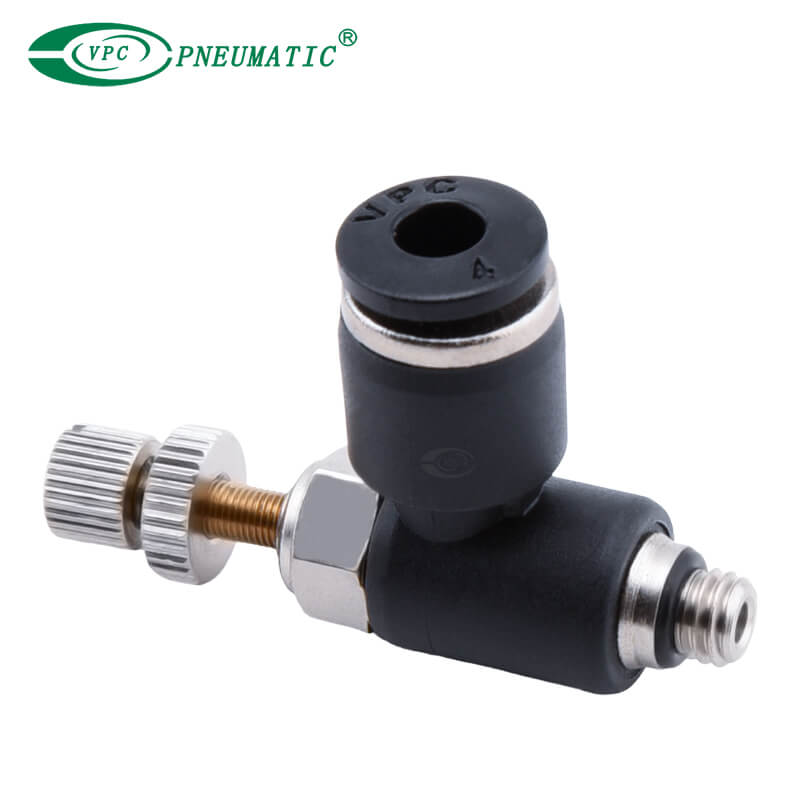

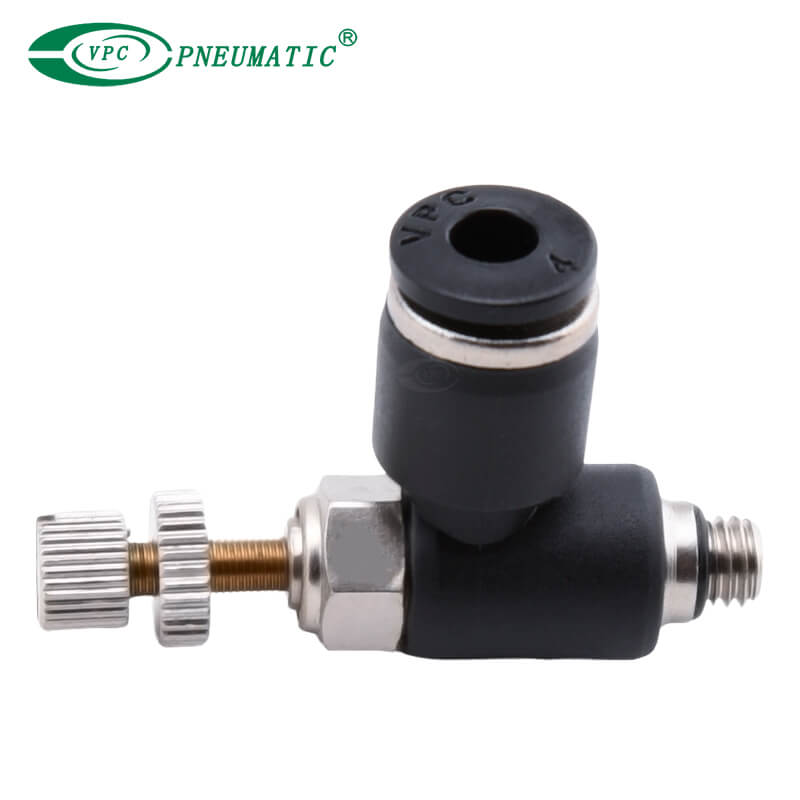

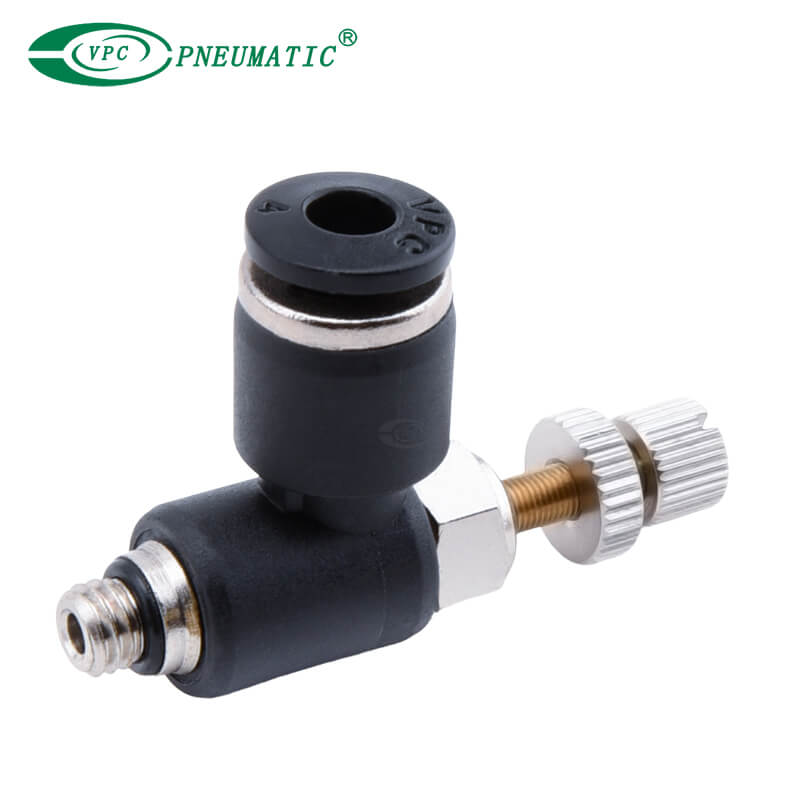

Product Description
■ Tube Size
| Tube (Metric) | Tube (Inch) | ||||||||||||
| Code | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/14 | 5/16 | 3/8 | 1/2 |
| Tube Outside | Ф4 | Ф6 | Ф8 | Ф10 | Ф12 | Ф14 | Ф16 | Ф5/32 | Ф3/16 | Ф1/14 | Ф5/16 | Ф3/8 | Ф1/2 |
■ Thread
| Thread (Metric) | ||||||||
| Code | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Thread | M5×0.8 | M6×1.0 | M8×1.0 | M10×1.0 | M12×1.25 | M14×1.5 | M16×1.5 | M20×1.5 |
| 55° Thread (R) | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Thread | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| Thread (UNF) | US Thread 60° | |||||
| Code | U10 | 01N | 02N | 03N | 04N | 06N |
| Thread | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
Product Specifications
| Working Medium | Air, Vacuum |
| Working Pressure Range | 0 to 0.8Mpa |
| Max. Pressure | 1.2Mpa |
| Working Temperature | 0 to 60℃ |
| Applicable Tube | Nylon, PU |
| Model (ФD-T) | |
| Tube (Metric) - Thread (R) | |
| VSC 04-G01 | VSC 10-G01 |
| VSC 04-G02 | VSC 10-G02 |
| VSC 06-G01 | VSC 10-G03 |
| VSC 06-G02 | VSC 10-G04 |
| VSC 06-G03 | VSC 12-G02 |
| VSC 06-G04 | VSC 12-G03 |
| VSC 08-G01 | VSC 12-G04 |
| VSC 08-G02 | - |
| VSC 08-G03 | - |
| VSC 08-G04 | - |
