VSPL Male Thread Elbow Stop Fitting VSPL Male Thread Elbow Stop Fitting

loading

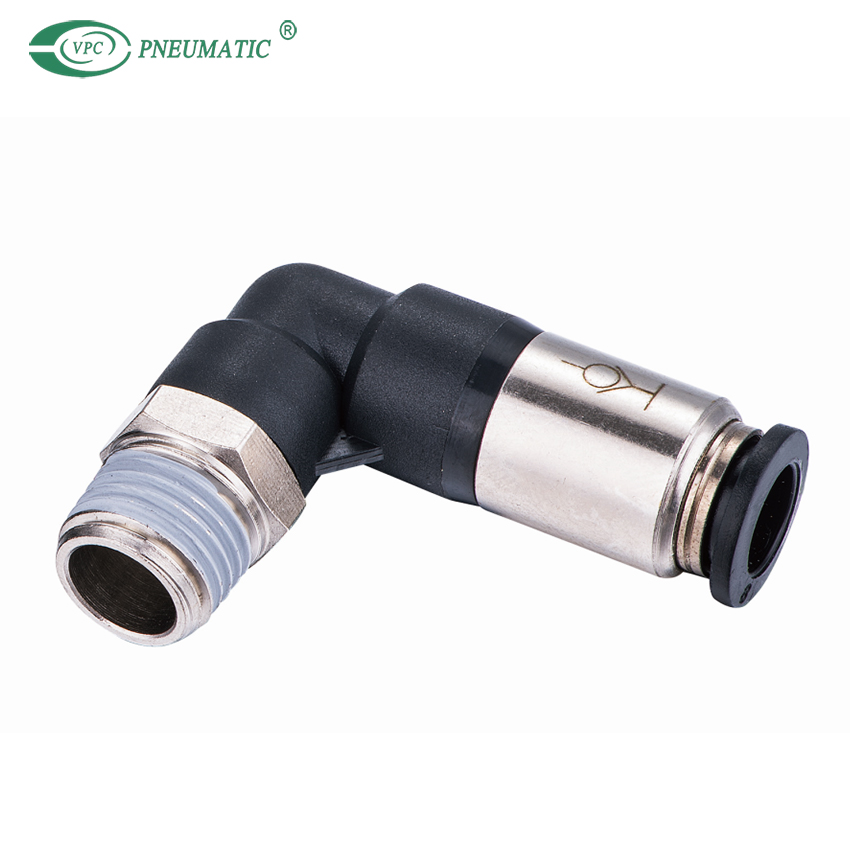

VSPL Male Thread Elbow Stop Fitting

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Stop fittings have the function of disconnecting valve.
  2. When the hose is connected with the stop fitting, air flow. When pulling out the hose from the stop fitting,air is completely blocked.

  • VSPL06-M5

  • VPC Pneumatic

  • 39174000

Applicable tube:
PA,PE,PU,FEP,PFA
Thread:
NPT or G
Body Material:
Brass
Availability:
Inquire Add to Basket

Product Description

■Specification

Applicable fluid typeCompresses Air, if liquid please ask for technical support
Proof Pressure1.32Mpa (1.35kgf/cm2)
Working Pressure Range0~0.9Mpa (0~9.2kgf/cm2)
Ambient Temperature0~60℃
Applicable PipePU,Nylon
MaterialBrass

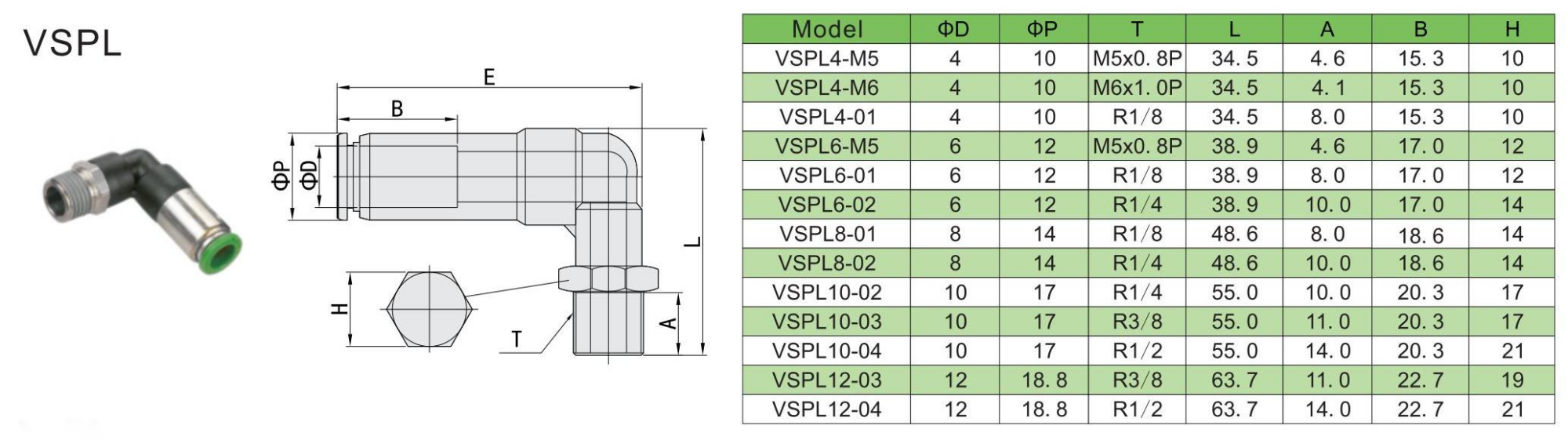

Product Specifications

SPL stop fitting

PDF Download

download Stop Fitting.pdf
