VSS-8
VPC Pneumatic
39174000
Working medium: | |
---|---|
Working temperature: | |
Working pressure: | |
Body material: | |
Availability: | |
Product Description

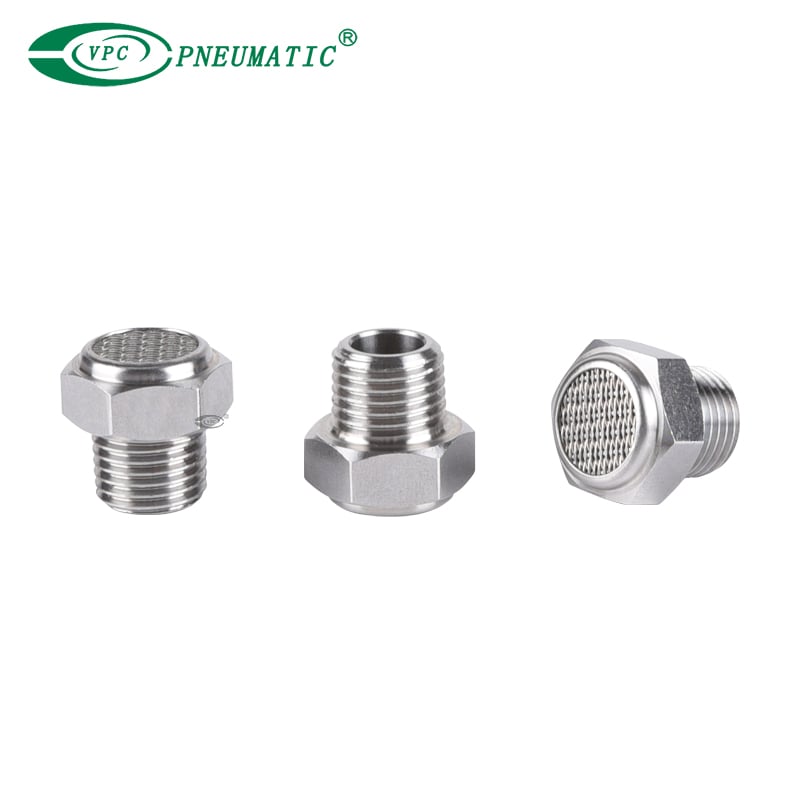

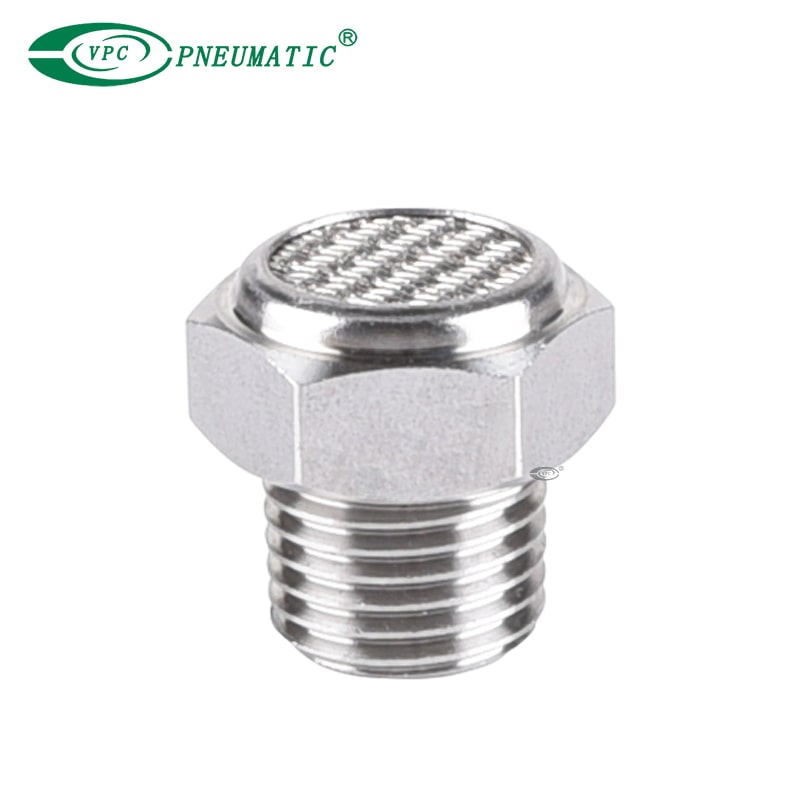

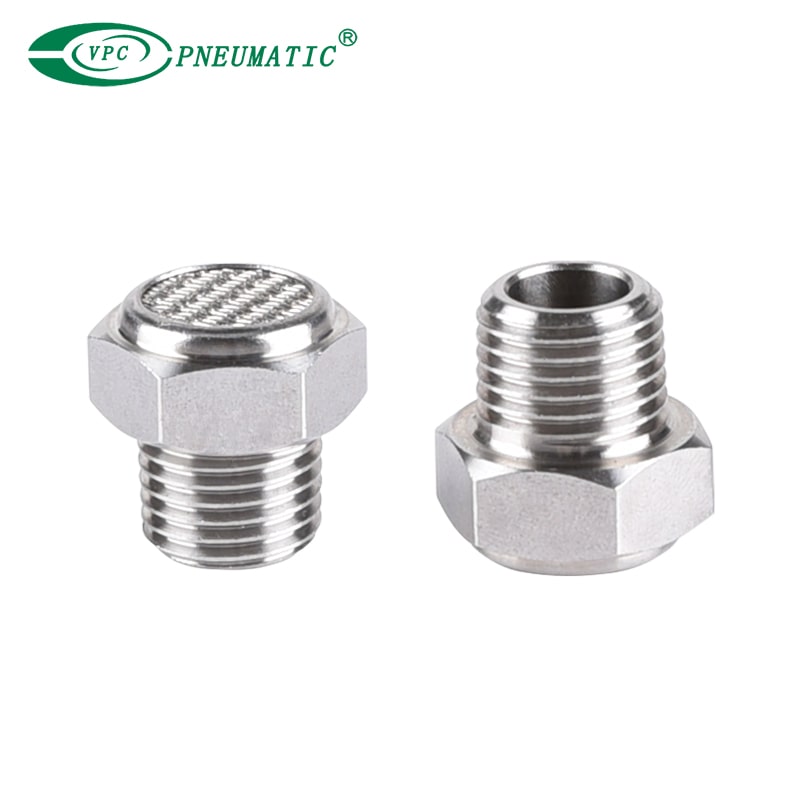

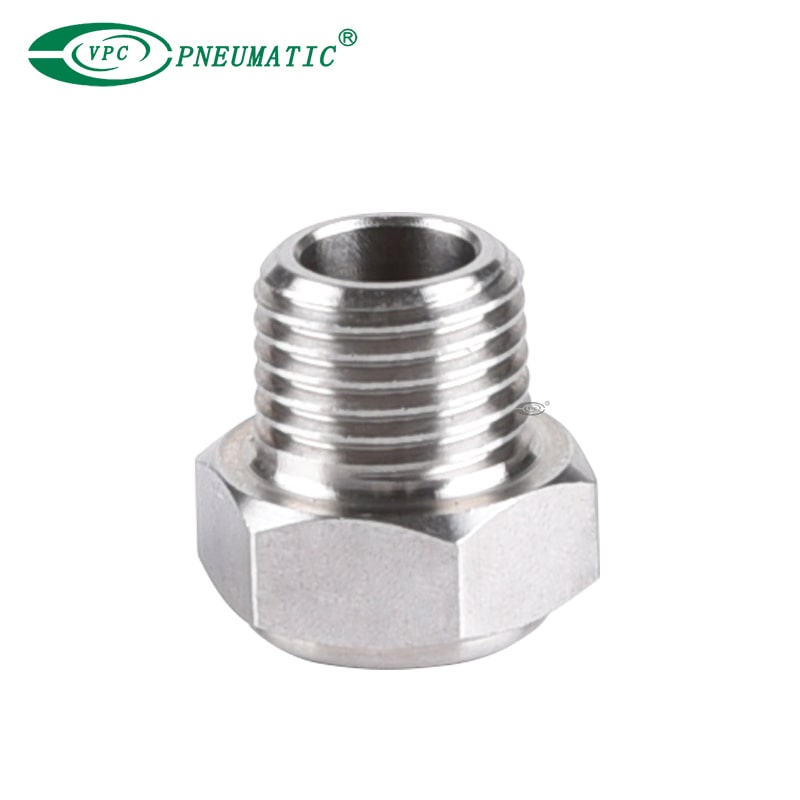

1. VSS mufflers are made of premium stainless steel with excellent corrosion resistance and are suitable for use in harsh environments or where safety and sterility are required.
2. The muffler, when equipped with a filter, prevents dust, metal shavings and other impurities from entering the exhaust port, thus protecting the ventilation quality of the pneumatic components.
3. The stainless steel silencer can be externally fastened using a flat wrench or socket wrench.
Product Specification
Model | VSS-6 | VSS-8 | VSS-10 | VSS-15 | VSS-20 | VSS-25 | VSS-40 |
Thread | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/2" |
Working medium | Compressed air | ||||||
Working pressure | 0 to 1.0Mpa | ||||||
Proof pressure | 1.5Mpa | ||||||
Negative pressure | ﹣100Kpa | ||||||
Temperature range | ﹣20℃ to 70℃ |
