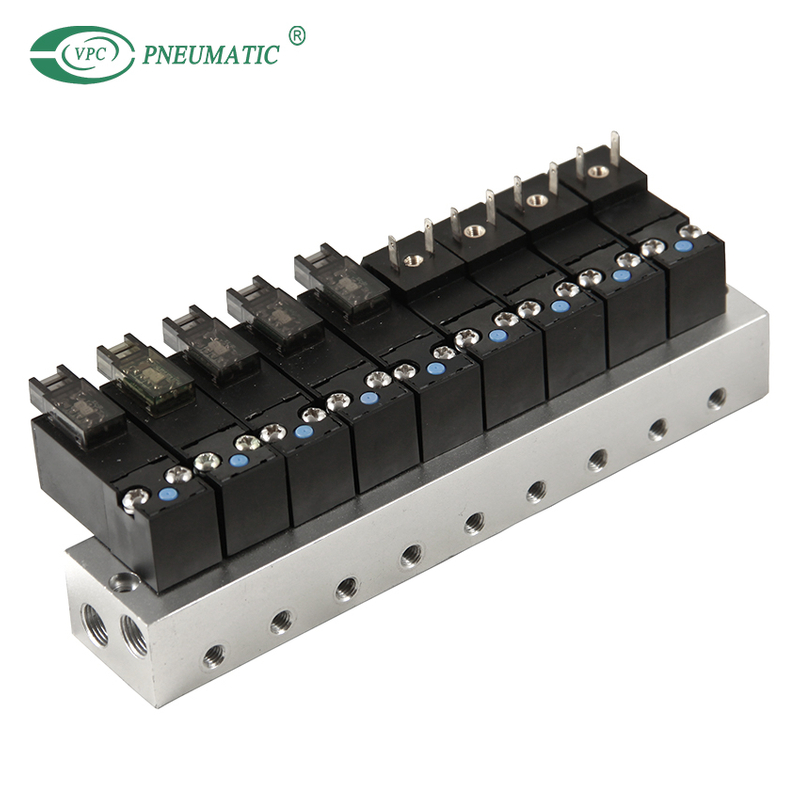

VSV Series 15mm Micro Solenoid Valve Combination
VSV Series 15mm Micro Solenoid Valve Combination VSV Series 15mm Micro Solenoid Valve Combination

loading

VSV Series 15mm Micro Solenoid Valve Combination

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • High molecular weight polyester material with memory performance;
  • High and low temperature resistance;
  • Long service life, reach more than 150 million times;
  • Widely used in the textile, medical, electronics, oxygen concentrated, lung ventilators, respirators and so on.

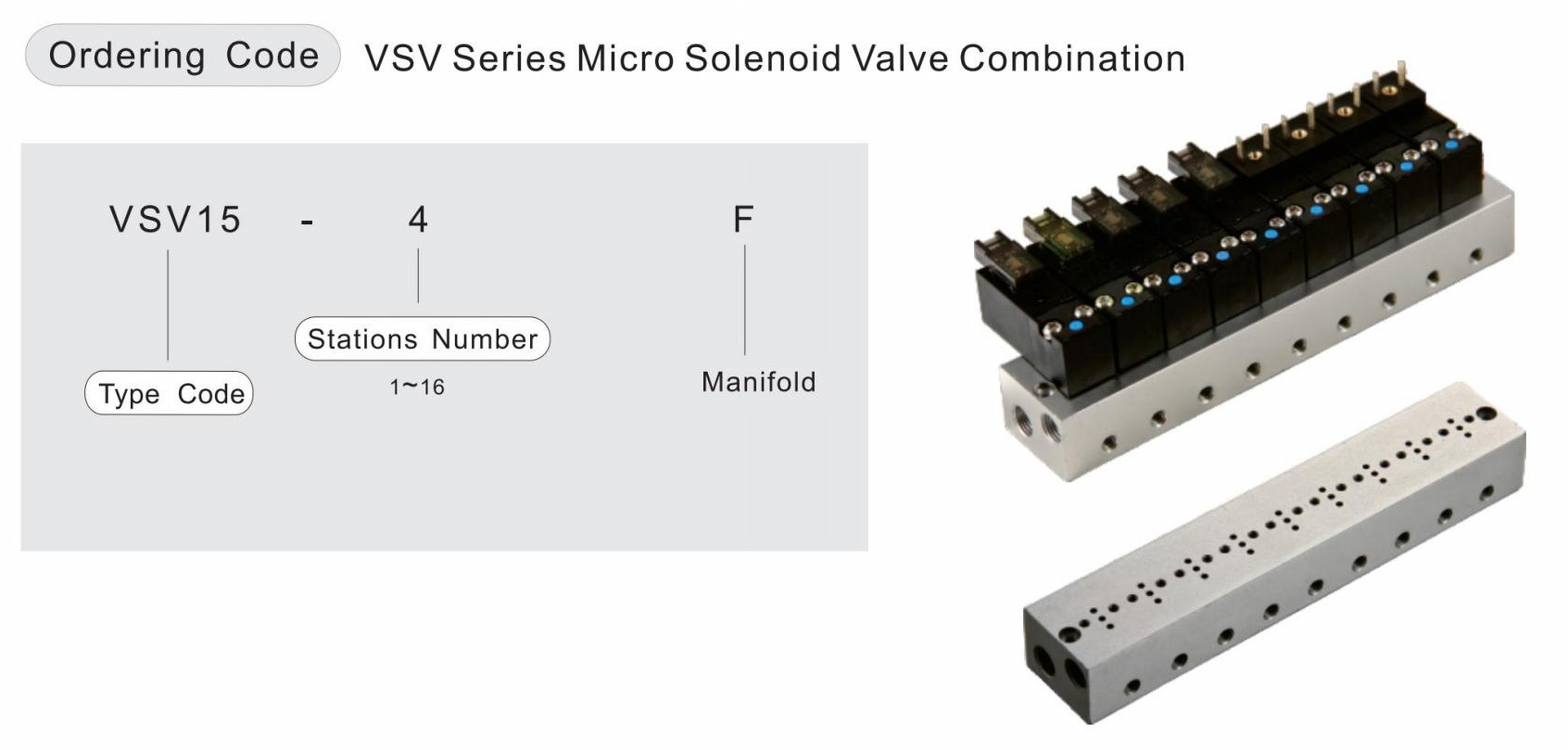

  • VSV15-4F

  • VPC Pneumatic

  • 8412909000

Acting type:
Normal close direction type
Working pressure:
0 to 0.7Mpa
Working temperature:
-5 to 50℃
Reflect time:
≤20m/s
Rated voltage:
DC24V
Availability:
Inquire Add to Basket

Product Description

VSV15 阀板参数

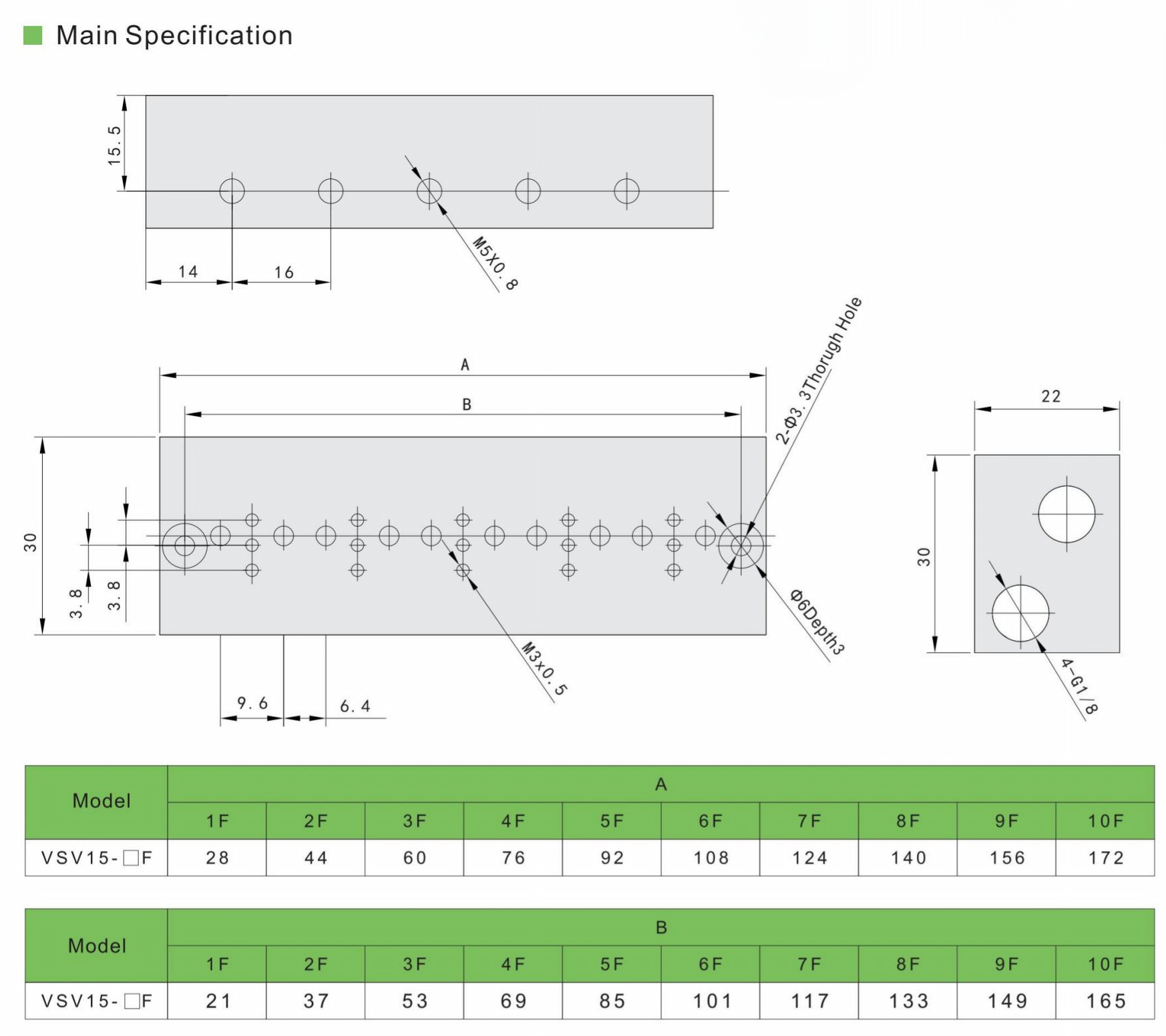

Main Dimensions

VSV15 阀板参数-2
