| Acting type: | |
|---|---|
| Working pressure: | |
| Working temperature: | |
| Reflect time: | |
| Rated voltage: | |
Product Description
Low power consumption, fast repsonse,import oils seals with longer sevice life.

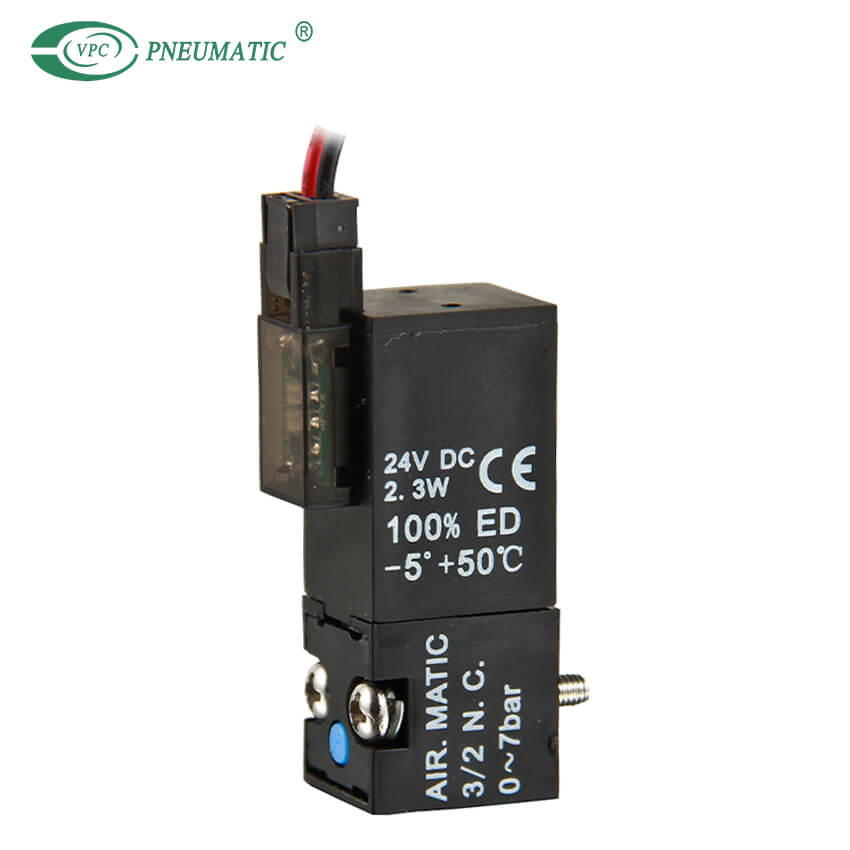

Coils with DIN connection or flying leads.
Custom designs are available.
Good replace Itlay FIM Valvole.
Pneumatics (pilots for valves or modular valves, vacuum pumps, etc.)
Textile (Socks Hosiery knitting machines, carpet, rug making machines, spoolers, winders)
Semiconductors (Pick & Place, Chip sorting machines)
Medical (Oxygen concentrators, ventilators)
Automotive (Wiper systems, Motorcycle air suspensions, etc.)
Chemical (Gas analysers, environmental sampling)
Water curtains (in luxury hotels, etc.)
Dental equipment (dentist chairs, pneumatic drilling, water dispensing)
Product Specifications
| Model | VSV15-1.4LV | VSV15-1.4LH | VSV15-1.4LC |
| Working medium | Clean Air(40µm filteration) | ||
| Acting type | Normal close direction type | ||
| Working pressure | 0 to 0.7Mpa | ||
| Working temperature | -5 to 50°c | ||
| Reflect time | ≤20m/s | ||
| Max working frequency | 20times/s | ||
| Manual mode | Button type | ||
| Lubrication | No | ||
| Heat-resistant class | F class | ||
| Protective class | IP65 | ||
| Rated voltage | DC24V/AC220v | ||
| Voltage Range | Rated Voltage:±10% | ||
| Orifice | 1.4mm | ||
| Power | 2.3W(with LED) | ||

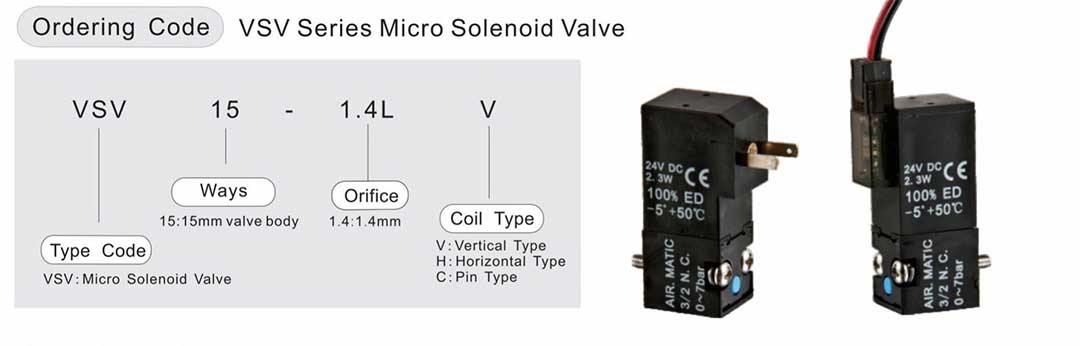

| Coil Type | Vertical Type | Horizontal Type | Pin Type |

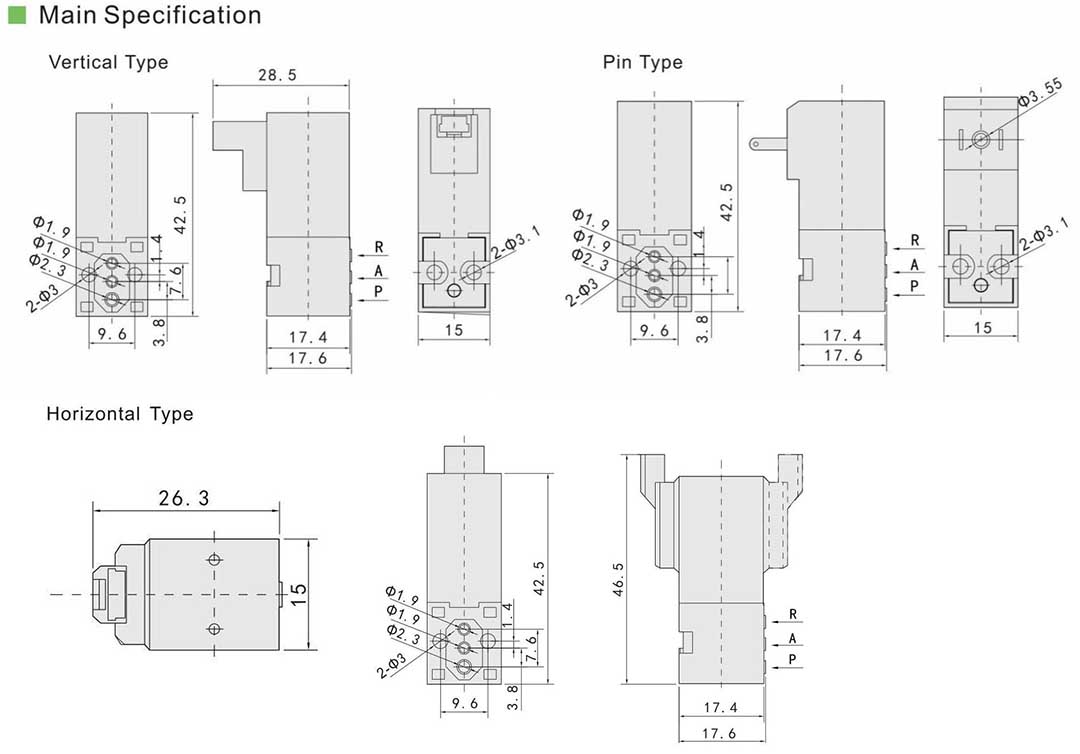

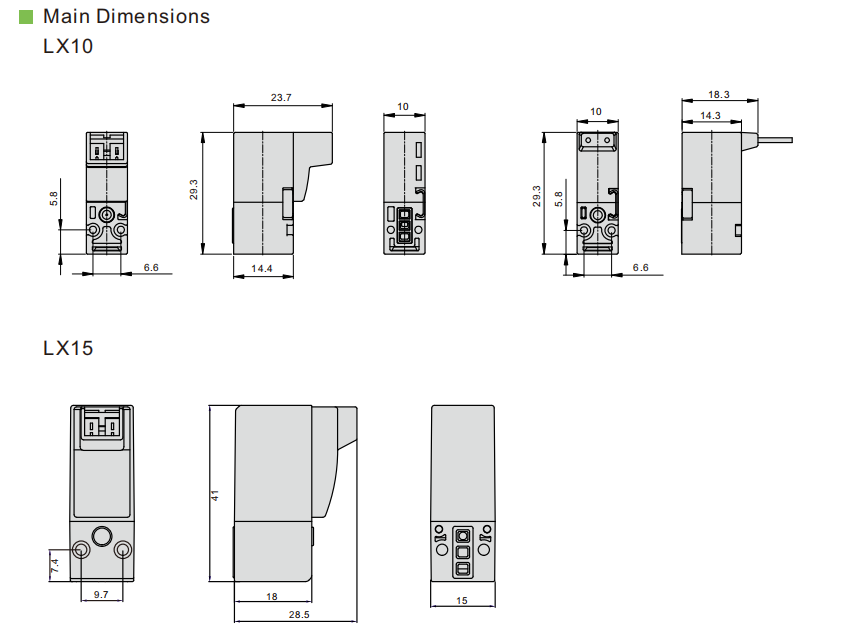

Main Dimensions
