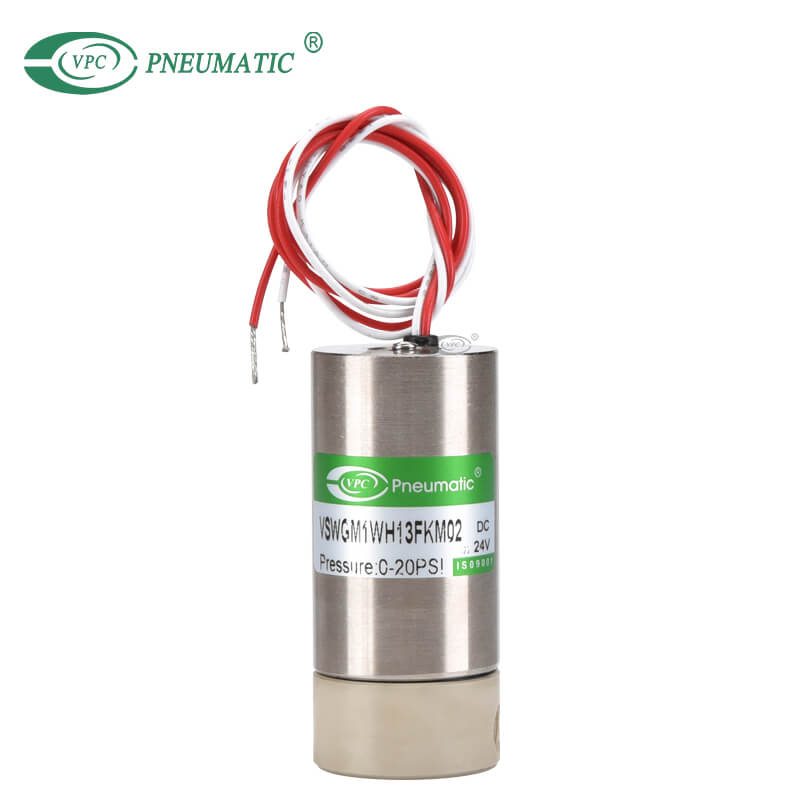

VSWGM Diaphragm solenoid valve separates the fluid passage and the actuator through the flexible diaphragm, and the actuator controls the flexible diaphragm to control the passage of fluid. Using high performance materials and polymers to ensure that the fluid handled by the valve is always in a highly inert environment, and the fluid does not come into contact with any metal surface when flowing in the valve.

  • VSWGM1WH13VKM02

  • VPC Pneumatic

  • 8412909000

Ways:
2 port 2 way valves
Stations on manifold:
Free combination
Availability:
Inquire Add to Basket

Product Description

■ Product Feature

VSWGM Miniature solenoid valve low power, small size, easy to integrate, can be widely used in medical, pharmaceutical, analytical instruments and other industries.


  Order Coder     VSWGM Series Miniature Solenoid Valve

  VSWGM    1①     W②    H③    13④    V⑤    K⑥    M⑦    02⑧     □


① Control style1: Normal close
② Coil typeW: Flying leads metal housing coil
③ Coil classH: H class
④ Standard voltage12: DC12V   13: DC24V
⑤ Seal materialV: VITON   E: EPDM   F: FFKM
⑥ Valve bodyK: PEEK   T: PTFE   3: SS316
⑦ Joint sizeM: M6
⑧ OrificeC2: 1.5mm   O2: 2.0mm   C3: 2.5mm   O3: 3.0mm


Product Specifications

Working mediumAcid, alkali, ultra-clean fluid, etc.
Working temperature0℃~65℃
Valve bodyPEEK, PTFE, SS316
Standard voltageDC24V, DC12V, etc.
Voltage range±10%
Power3.8W
Seal materialVITON, EPDM, FFKM, etc. can be used for different fluid switch control
Joint sizeM6
Coil typeFlying lead type (standard 350mm)
Installation methodAccording to the flow direction arrow on the valve, it is best to install the coil upward and horizontally to increase service life and reliability.


Main Dimensions

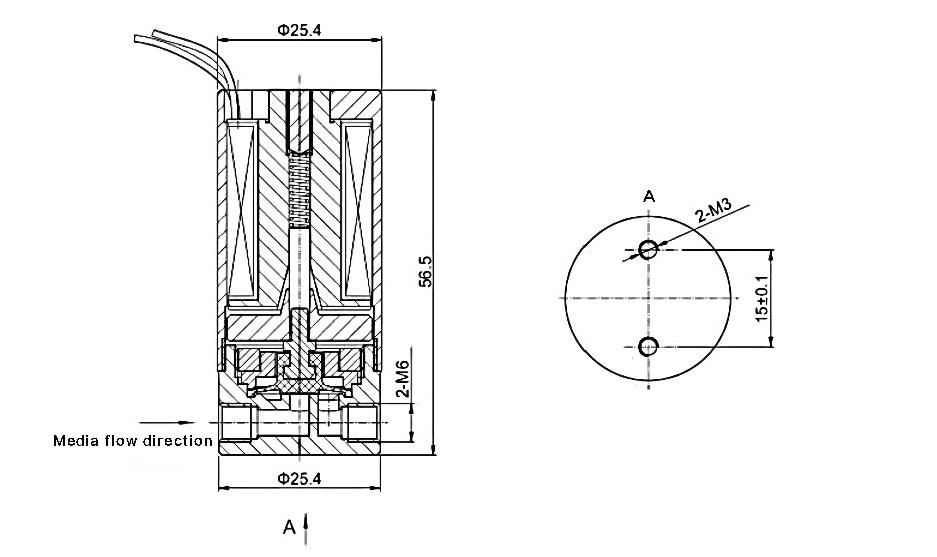

miniature solenoid valve dimensions

Port size
 Orifice (mm) CV value Pressure difference (PSI) Coil type
 Coil class Power (W) Model code (DC24V)
Min. pressure Max. working pressure
M6 1.5 0.04
 0 30
 W H 3.8 VSWGM1WH13VKMC2
VSWGM1WH13VTMC2
VSWGM1WH13V3MC2
VSWGM1WH13EKMC2
VSWGM1WH13ETMC2
VSWGM1WH13E3MC2
VSWGM1WH13FKMC2
VSWGM1WH13FTMC2
2.0 0.06 0 20 W H 3.8 VSWGM1WH13VKM02
VSWGM1WH13VTM02
VSWGM1WH13V3M02
VSWGM1WH13EKM02
VSWGM1WH13ETM02
VSWGM1WH13E3M02
VSWGM1WH13FKM02
VSWGM1WH13FTM02
2.5 0.08
 0 15 W H 3.8 VSWGM1WH13VKMC3
VSWGM1WH13VTMC3
VSWGM1WH13V3MC3
VSWGM1WH13EKMC3
VSWGM1WH13ETMC3
VSWGM1WH13E3MC3
VSWGM1WH13FKMC3
VSWGM1WH13FTMC3
3.0
 0.1
 0 10 W H 3.8 VSWGM1WH13VKM03
VSWGM1WH13VTM03
VSWGM1WH13V3M03
VSWGM1WH13EKM03
VSWGM1WH13ETM03
VSWGM1WH13E3M03
VSWGM1WH13FKM03
VSWGM1WH13FTM03
