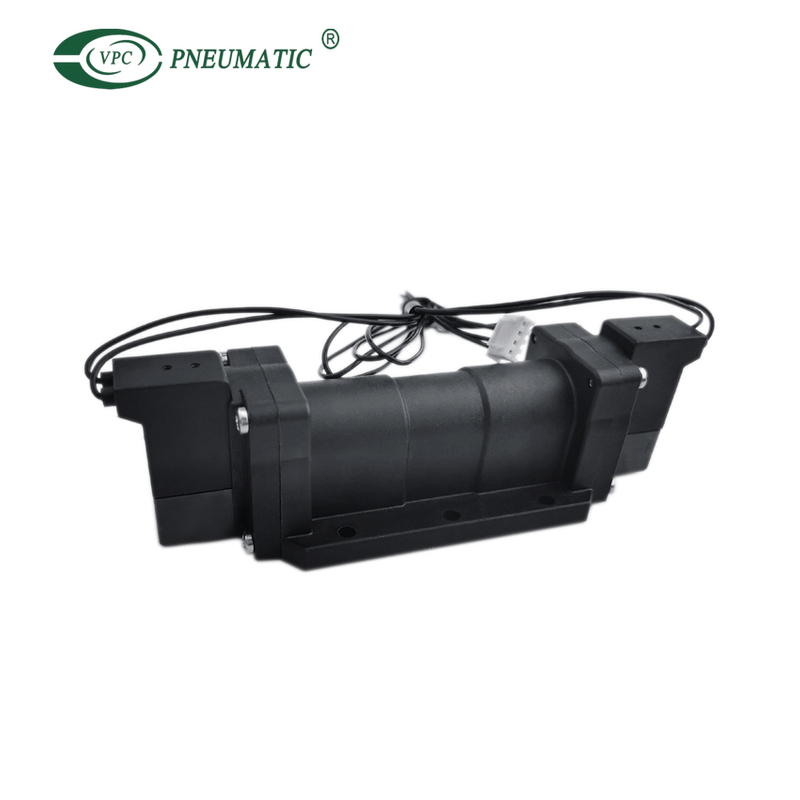

VSZ Series 2/4 Way Plastic Oxygen Concentrator Valves

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Suitable for 15L oxygen generators;
  2. Energy saving and environmental protection with big low rate,safety and precision;
  3. Can work at the low pressure,smartness for on and off,good seal performance.

  • VSZ15-10LDP

  • VPC

  • 8412310090

Power:
Solenoid
Standard voltage:
DC 12v
Availability:
Inquire Add to Basket

Product Specifications

Model
VMP-06-15L
Working medium
Compressed 40 micron filtered air
Body material
Aluminum alloy
Ways
Two position - four way
Port Size
G1/4
Motion Pattern
Internal pilot type
Working Pressure
0.1 to 0.4MPa
Operating Temperature
-30 to 80℃ No freezing
Voltage Tolerance
±25%
Insulation&Protection Class
F Class, IP65
