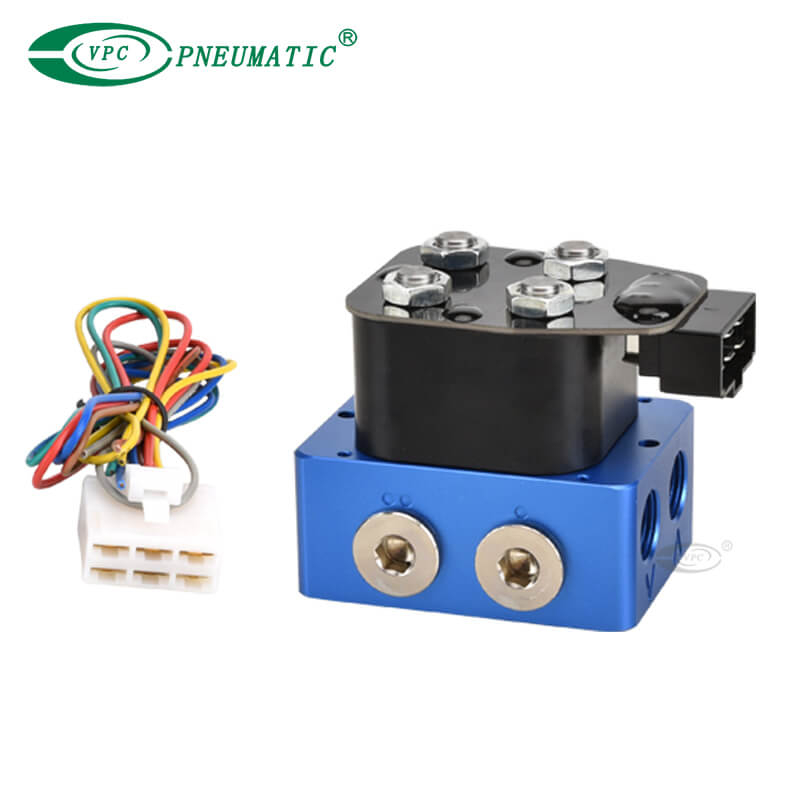

Product Description
| Compatiable suspension type | 2-Corner full air suspension |
| Voltage requirements | 12 Volt |
| Current requirements | 1.1Amps (for each of the (4) Valves) |
| Connectors | IP67 certified (immersion up to 3 ft) |
| Fitting size | 3/8"NPIT, 1/4NPT, 3/8"PT, 1/4"PT |
| No.of inlet ports | 2 |
| No.of exhaust ports | 2 |
| Max. working pressure | 200 Psi |
| Cv flow factor | 0.33 |
| Average adjustment time | 2.2 Seconds (from 10% to 50% of travel) |
Red Valve Block
Blue Valve Block
Green Valve Block
※ Please contact us if you need to customize other color valve block.
