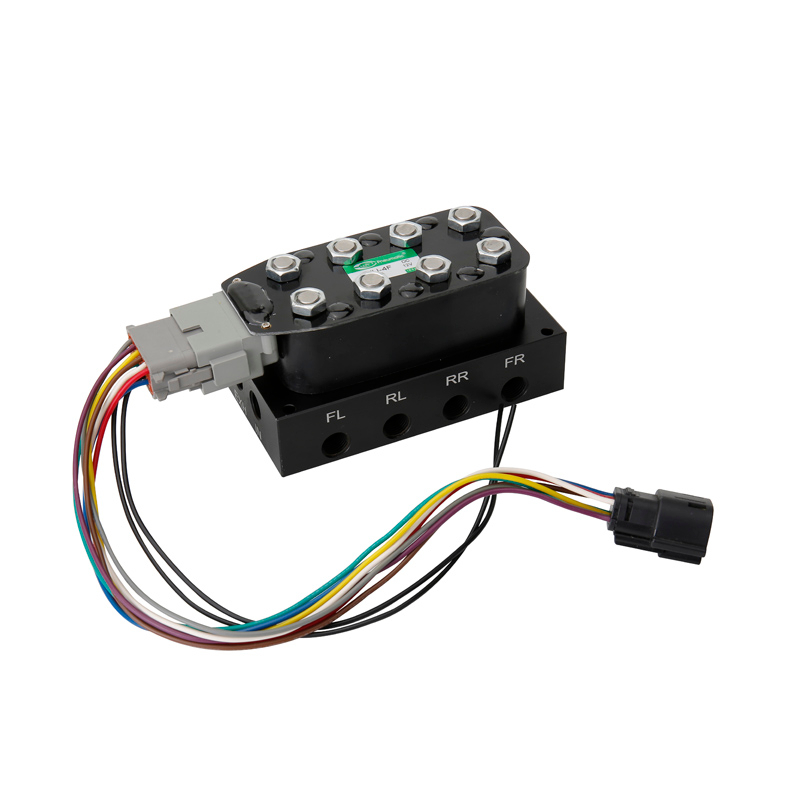

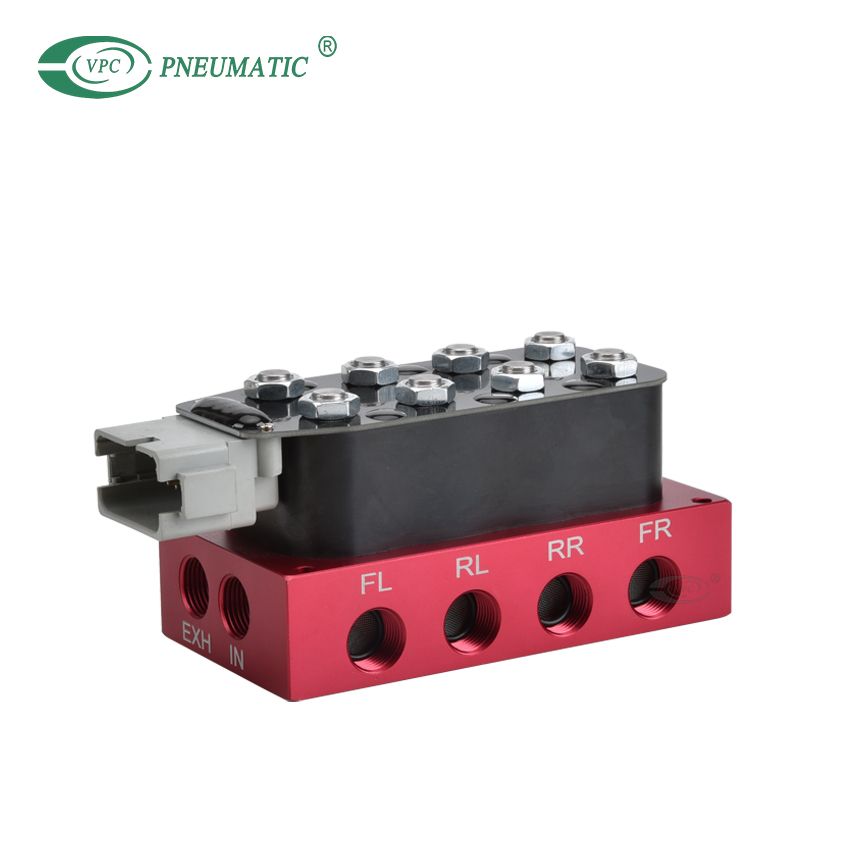

VU4 Air Suspension Valve

1. The VU4 manifold is outfitted with NPT or G thread fittings on all ports to easily install your air suspension system plumbing.
2. Using the import Deutsch & Molex connector and Pre-wiring;
3. Inflates and deflates up to (4) individual Air Springs;
4. Factory Direct, Support logo, colour, size, package customization;
5. Good replacement to Accuair AA-VU4 Air suspension valve block and Robbion Type solenoid valve.

Model:
VU4
Brand:
VPC Pneumatic

Availability:



Inquire Add to Basket

Product Description

Product Description

■ Product Specifications

Compatiable Suspension Type	4-Corner Full Air Suspension
Voltage Requirements	10.5 to 16 Volts
Current Requirements	1.1 Amps (for each of the (8) Valves)
Connectors	IP67 certified (immersion up to 3 ft)
Fitting Size	3/8”NPT x 4 , 1/4” NPT x 2
No. of Inlet Ports	2
No. of Exhaust Ports	2
Max Operating Pressure	200Psi
Cv Flow Factor	0.33
Average Adjustment Time	2.2 Seconds (from 10% to 50% of travel)
