VX Series 2/2 Way Normally Closed Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • VX Series Brass Normal Closed Solenoid Valve, range from 1/8" to 1/2", equiped with flying leads type coil, zero-pressure start, normally closed, withstand the pressure up to 10 bar.
  • VX series solenoid valve diaphragm seal and direct acting design fast response NBR seal materials.
  • VX series solenoid valves are widely used in the air control system and water control system. Also can be suitable for steam if change the seal materials.

  • VX2120-06

  • VPC Pneumatic

  • 8481804090

Working medium:
Air/Water/Oil/Gas
Type:
Normal close
Working temperature:
-5 to 150℃
-5 to 80℃
Working pressure:
0 to 1Mpa
Body Material:
Brass
Acting type:
Direct acting
Availability:
Inquire Add to Basket

Product Description

2/2 way selonoid valve

Product Specifications

Model
VX2120-06
VX2120-08
VX2120-10
VX2120-15
Working Medium
Air,Water,Stream
Acting Type
Direct Operated
Control Style
Normal Closed
Working Pressure
0 to 1.0MPa
Orifice
3mm
13mm
Joint Size
1/8"
1/4"
3/8"
1/2"
Working Temperature
-5~150℃
-5~80℃
Seal material
Fluororubber
NBR

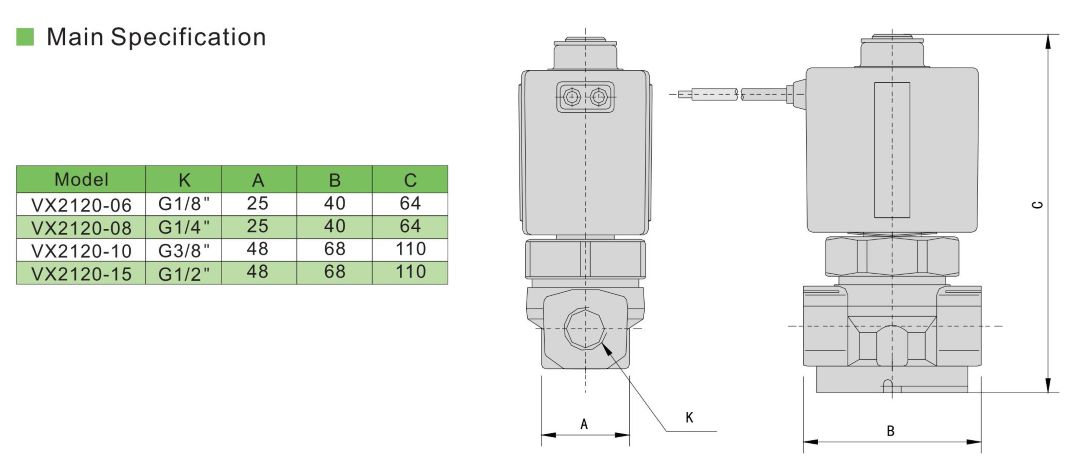

Main Dimensions

Direct Acting Solenoid Valve
