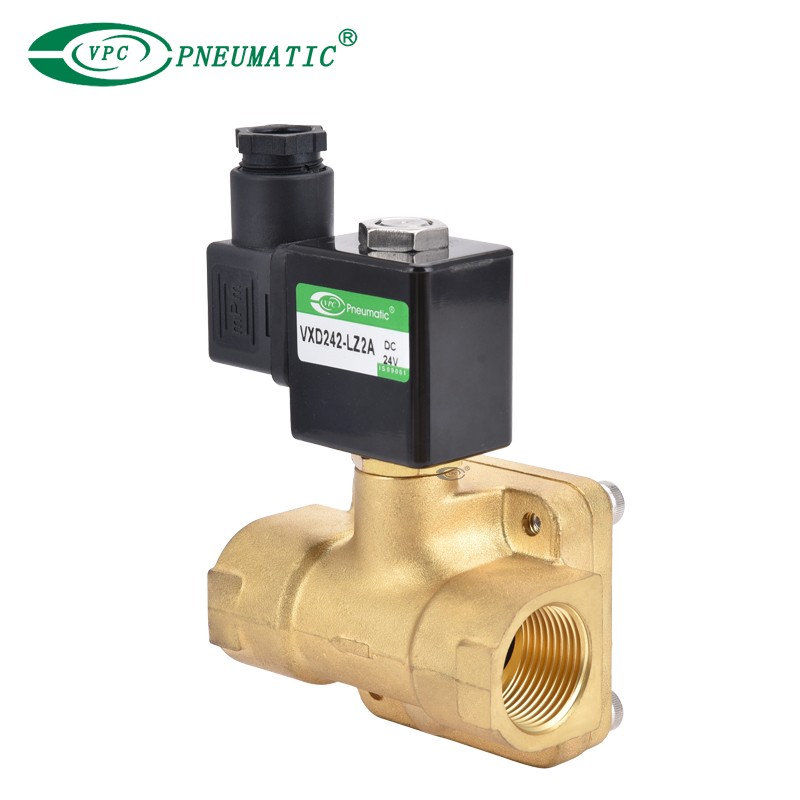

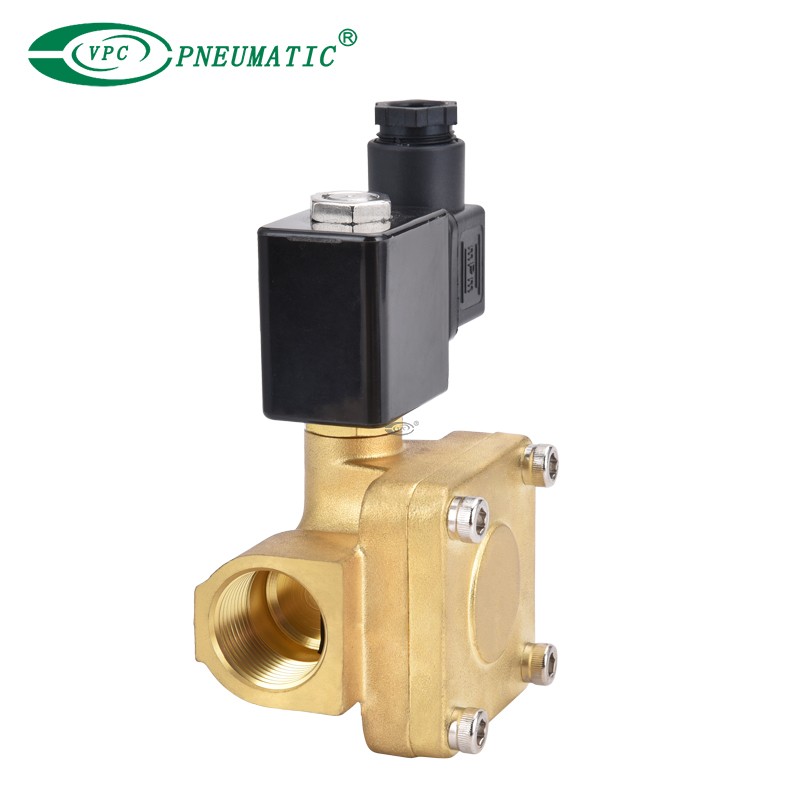

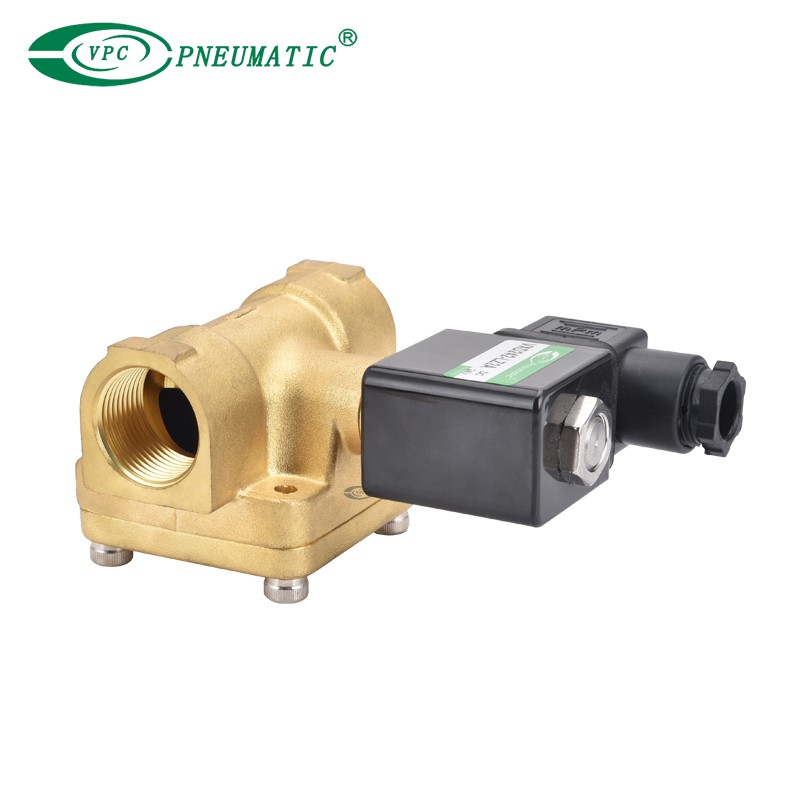

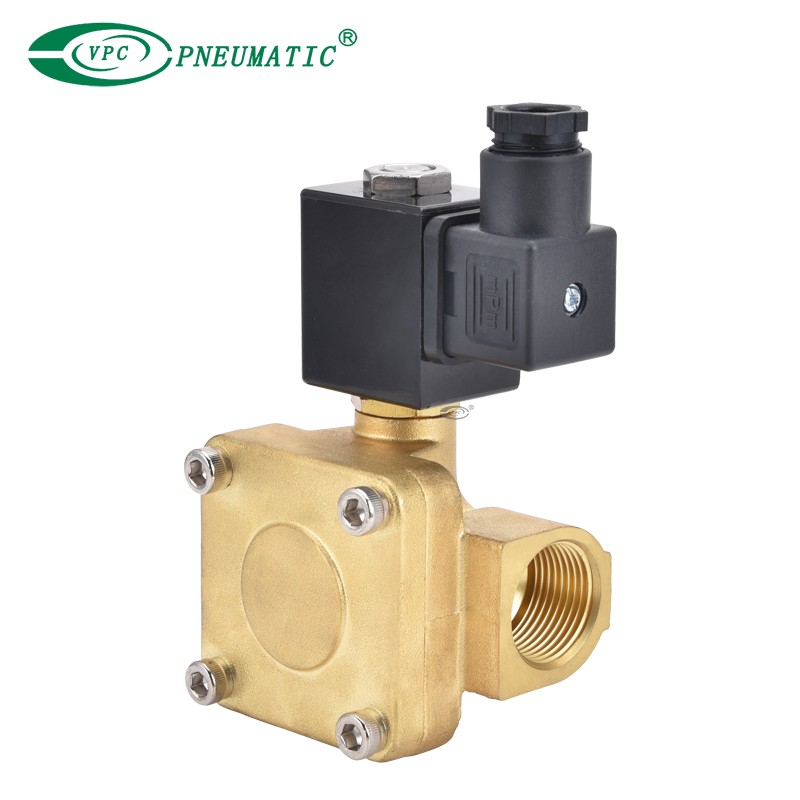

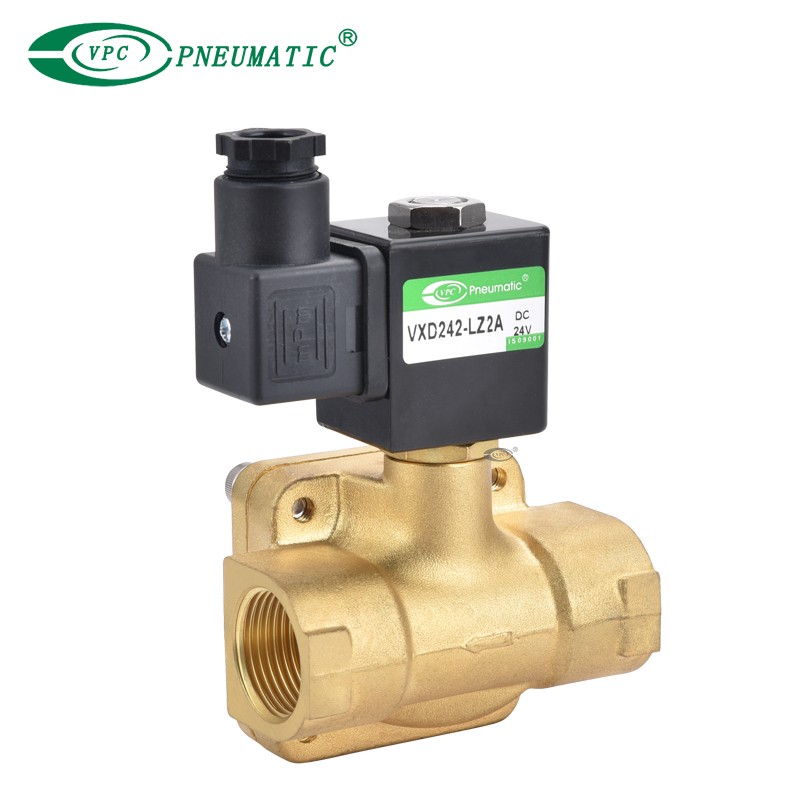

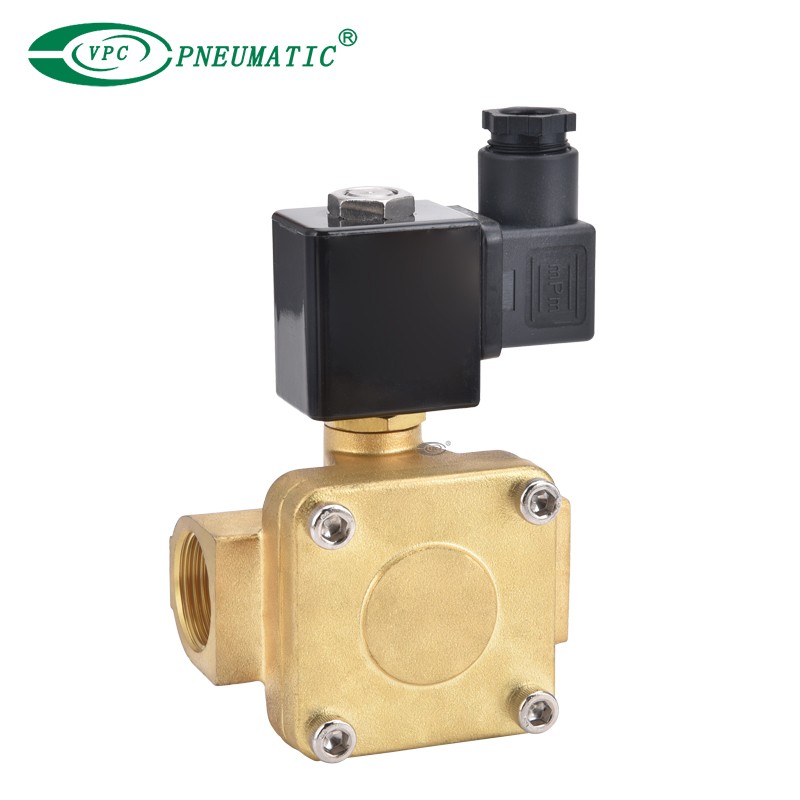

VXD Series Pilot Operated 2 Port Solenoid Valve for Heated Water
Share to:
VXD High-performance 2-port pilot operated solenoid valve for heated water, steam, and air. Handles up to 150°C with EPDM/VITON sealing and Class H coil insulation. Brass or stainless steel, IP65 protection, multiple port sizes and voltages.
1. This pilot operated 2-port solenoid valve is engineered for use in high-temperature fluid systems such as heated water, air, and oil. Designed for stability and durability, it supports fluid temperatures up to 150°C when equipped with high-performance sealing materials such as VITON or EPDM.
2. With Class H coil insulation, IP65 protection, and a wide selection of voltage and port size options, it is ideal for industrial automation, water treatment, HVAC, and boiler systems. This valve offers reliable flow control in demanding environments. 3. For projects requiring compatibility, this model also serves as an excellent alternative to the SMC VXD242 series.
Industries & Applications
1. Boiler and heating systems
2. Heated water and fluid control
3. Industrial automation equipment
4. Oil and steam piping systems
5. Water treatment facilities
6. Packaging and filling machines
Product Specifications
Model
VXD232
VXD242
VXD252
VXD262
working medium
Heated water, air, oil
Acting type
Pilot operated
Control type
Normally Closed Normally Open (NO)
Orifice size
10 mm
12 mm
20 mm
25 mm
Joint size
1/4, 3/8, 1/2
3/8, 1/2
3/4"
1
Working pressure
0.07 to 1.6 MPa
Working Temperature
-5 to 80℃ for NBR, -5 to 150℃ for VITON,EPDM
Effective Section
40 mm²
60 mm²
10 mm²
190 mm²
Voltage
AC: 220v, 110v DC: 24v,12v
Valve body
Brass
Seal material
NBR, EPDM, VITON
※ If you need drawings or more detailed technical specifications of VXD solenoid valves, please contact VPC.
