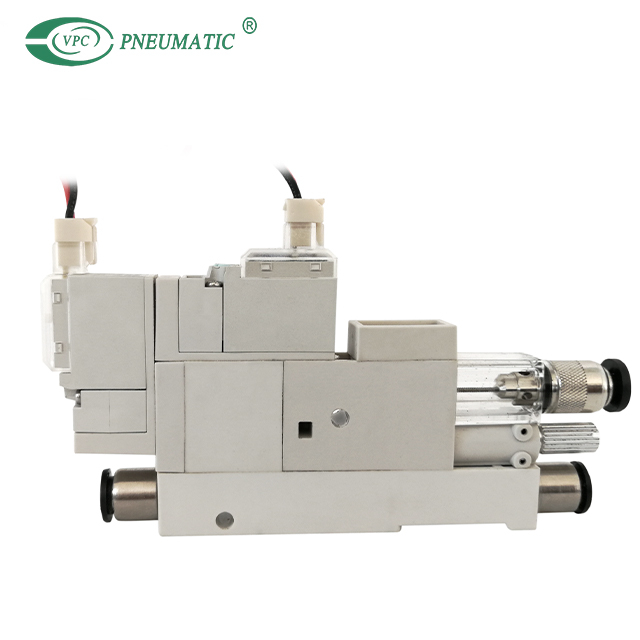

VXH Series Vacuum Generator

Share to:
VXH Vacuum Generator: High-efficiency, Light weight, Compact size, High Negative Pressure and Fast response.
  1. Input only 0.35Mpa positive pressure can get -93kpa negative pressure;
  2. Reasonable Configuration design increases air circulation speed, fast response, making repair or replacement of parts easier ;
  3. Applied with two Solenoid valves, One controls vacuum generation, Another controls vacuum destruction, can be used in more applications.
  • VXH
  • VPC Pneumatic
  • 8481804090
Working medium:
Lubrication Accuracy:
Working Pressure:
Working Temperature:
Working Vacuum:
Applied Tubes:
Availability:

Product Description

  Order Coder    VXH Series Vacuum generator

VX  H  05  D - 4  4  S  -  D24  -  AO  -  D  □

① H → Vacuum characteristics

CodePerformance
H

High-vacuum type(Rated supply pressure:0.5Mpa)

LLarge-flow type (Rated supply pressure:0.5Mpa)
EHigh-vacuum at low air supply pressure type(Rated supply pressure:0.35Mpa)


② 05 → Nozzle bore

CodeNozzle bore(mm)Vacuum level   Suction flowAir consumption

H type

L type

E type
050.5

-90.4kPa

7L/min(ANR)

-66.5kPa

12L/min(ANR)

-90.4kPa

3L/min(ANR)

11.5L/min(ANR)

(8L/min(ANR))

070.7

-93.1kPa

13L/min(ANR)

-66.5kPa

24[22]L/min(ANR)

-90.4kPa

10.5L/min(ANR)

23L/min(ANR)

(17L/min(ANR))

101.0

-93.1kPa

24[20]L/min(ANR)

-66.5kPa

26L/min(ANR)

-90.4kPa

20[19]L/min(ANR)

46L/min(ANR)

(34L/min(ANR))

※ⅰSupply pressure is 0.5MPa for H and L type and 0.35MPa for E type.

※ ⅱ The values in [ ] are for suction flow of tube exhaust type.

※ ⅲ Air consumption values in ( ) are for E type.

※ ⅳ The values in the table are reference values only. Suction flow varies according to the vacuum system conditions; vacuum port dia. or tube length. are reference values only. Suction flow changes according to the vacuum system conditions; vacuum port dia. or tube length.


③ D → Valve unit type

CodeDNo code
Valve unit typeDouble solenoid type(Vacuum retention type)Normally closed


④ 4 → Vacuum(V)Port (Applicable tube O.D)

Code346
Tube dia.(mm)Φ3(Push-In Fitting)Φ4(Push-In Fitting)Φ6(Push-In Fitting)


⑤ 4 → Air supply (PS)Port (Applicable tube O.D)

Code46
Tube dia.(mm)Φ4(Push-In Fitting)Φ6(Push-In Fitting)


⑥ S → Exhaust (EX) port

CodeSJ
Exhaust methodSilencer ventTube exhaust (Φ6 Push-In Fitting)

※ Tube exhaust is not selectable for nozzle bore ø1mm of L (Large-flow type).


⑦ D24 → Solenoid valve type

CodeDWDAAONo code
Switchpressure sensor with LED display (2 switch outputs)pressure sensor with LED display (Analog switch outputs)Analog output pressure sensor (No LED)Without vacuum switch


⑧ AO → Vacuum switch

CodeD24A100
VoltageDC24VAC100V


⑨ D → Installation method

Code
DNo code
Installation methodDIN rail typeDirect-Installation type


⑩ □ → Material option

CodeNo code-S3
MaterialStandardNo copper alloy & HNBR seal
Exhaust method
SilencerTube exhaust

※ -S3 specification is only for where air flow through but not corresponding to electrical parts, wires or vacuum port size with ø3mm.



Product Specification

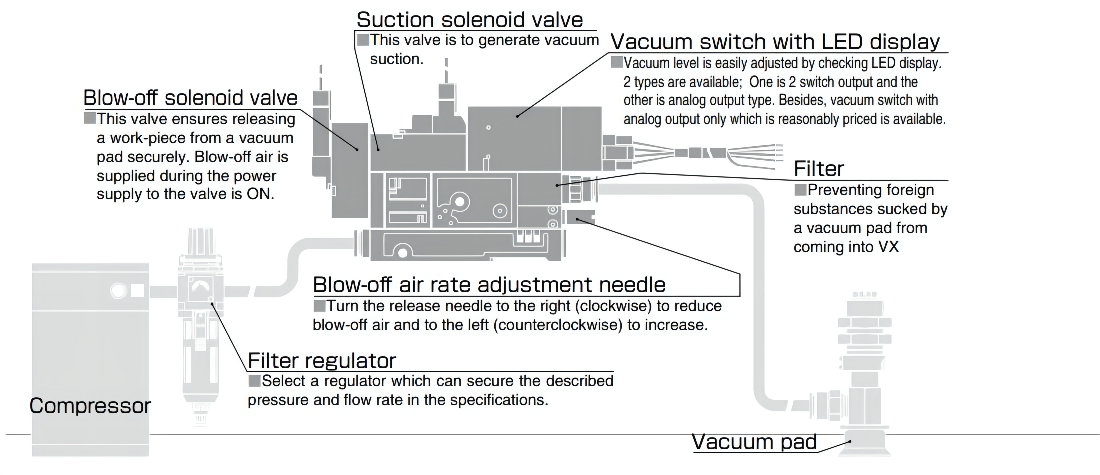

vacuum generator main dimension-1vacuum generator main dimension-2vacuum generator valve


Main Dimensions

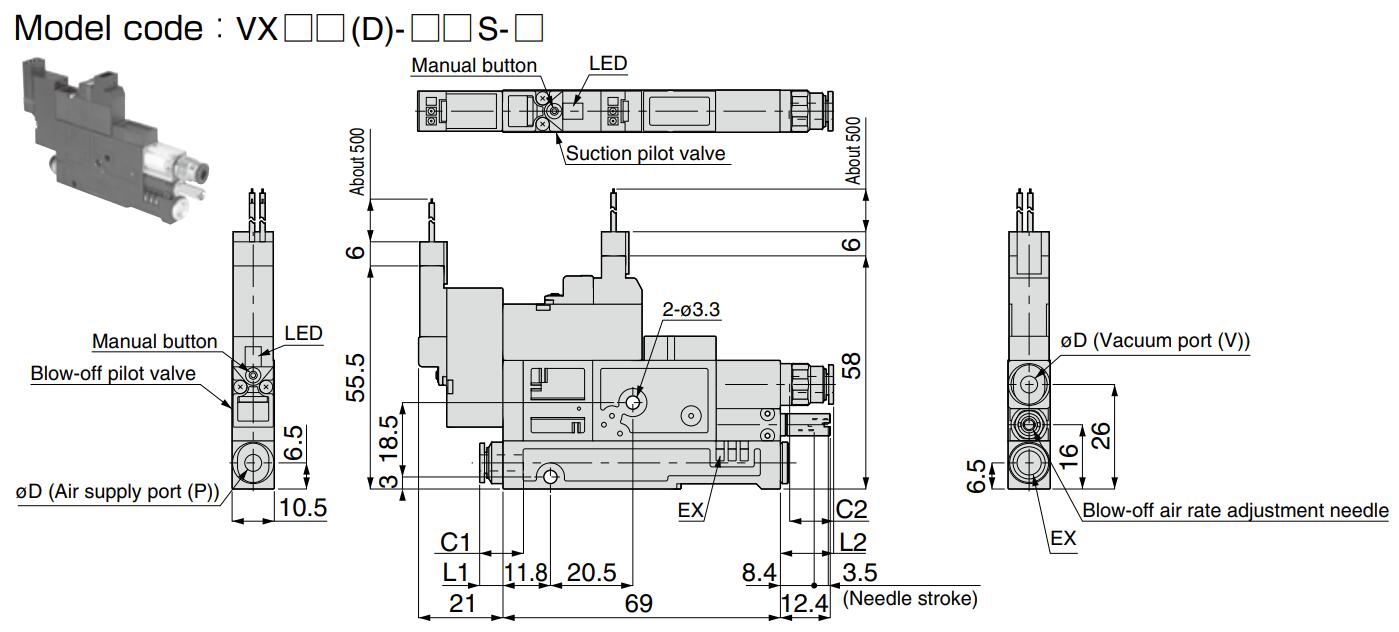

 Silencer vent, Direct-installation type

vacuum generator main dimension-3

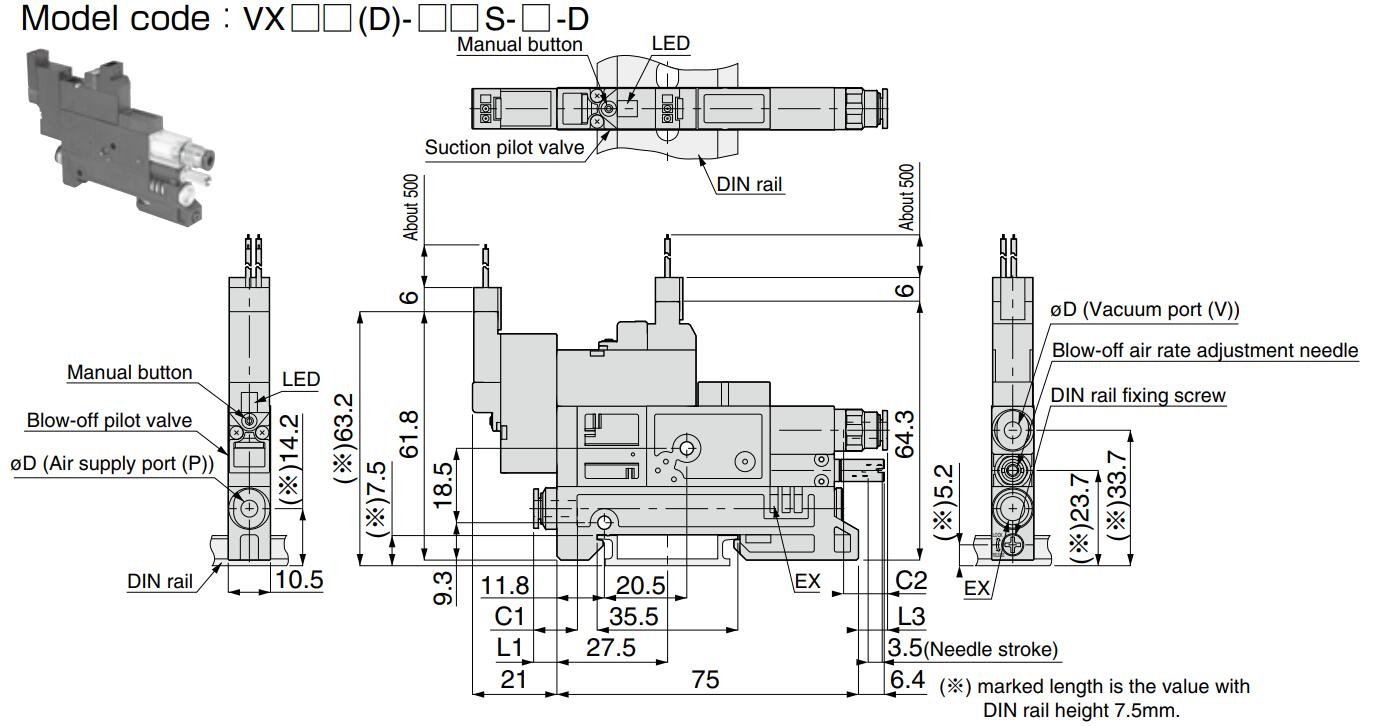

Silencer vent, DIN rail type

vacuum generator main dimension-4


Applicable tube O.D.(ΦD)
C1 C2 L1 L2 L3
3 - 10.4 - 13.2 7.2
4 10.9 10.9 5.8 13.2 7.2
6
11.7
11.7 8.7 13.5 7.5
