Product Description

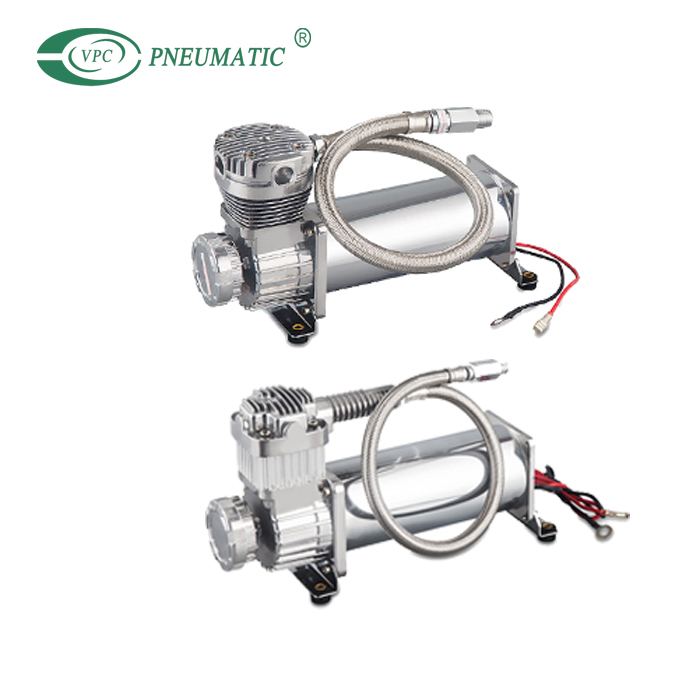

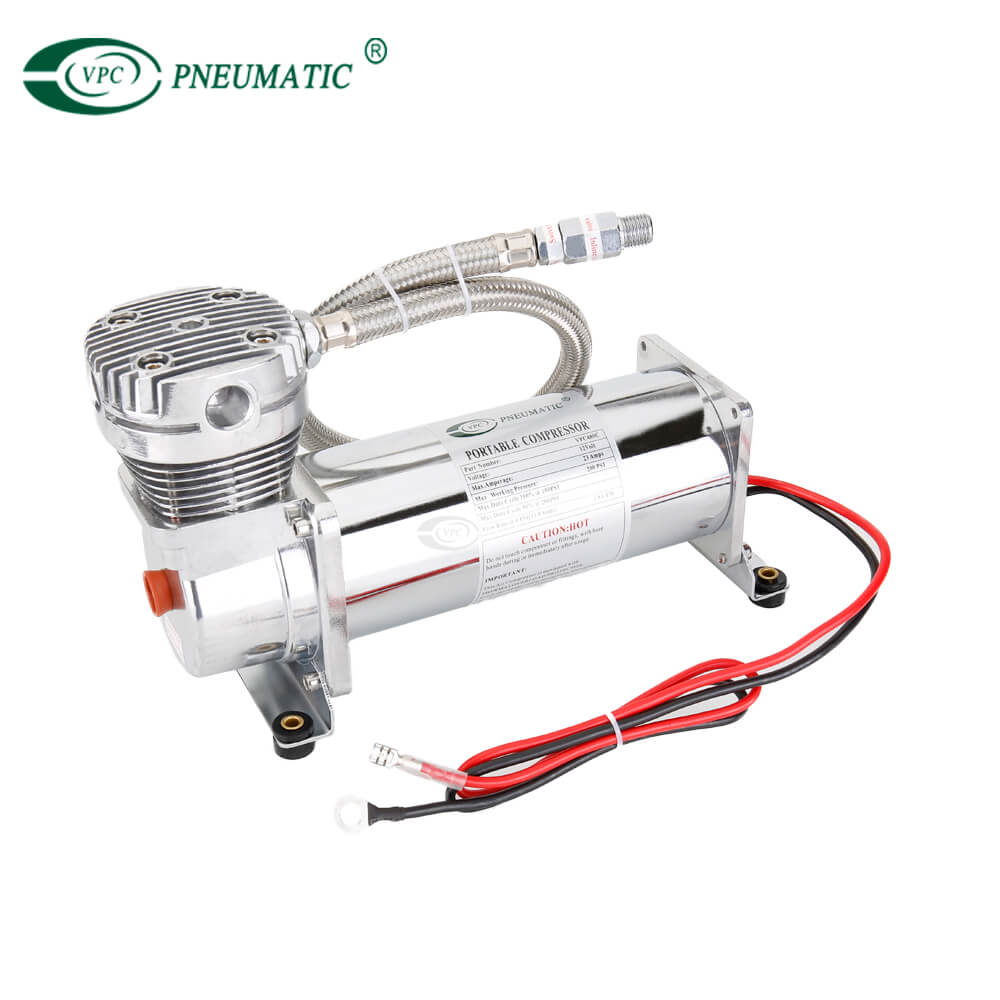

480C 444C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8" stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.
Included Parts: Installation instructions,Mounting hardware,Vibration isolators,Remote mount air filter assembly,Stainless steel braided leader hose.Check valve.
Product Specifications
| PERFORMANCE DATA | |||||
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.86 | 10 | 0 | 52.7 | 10 |
| 10 | 1.75 | 12 | 1 | 47.5 | 13 |
| 20 | 1.59 | 14 | 2 | 43.2 | 15 |
| 30 | 1.52 | 15 | 3 | 40.7 | 16 |
| 40 | 1.45 | 16 | 4 | 38.1 | 18 |
| 50 | 1.41 | 17 | 5 | 35.3 | 18 |
| 60 | 1.33 | 18 | 6 | 32.6 | 19 |
| 70 | 1.26 | 18 | 7 | 30 | 20 |
| 80 | 1.2 | 19 | 8 | 27 | 22 |
| 90 | 1.13 | 19 | 9 | 25 | 22 |
| 100 | 1.07 | 20 | 10 | 22.3 | 21 |
| 110 | 0.99 | 21 | 11 | 20.1 | 21 |
| 120 | 0.93 | 23 | 12 | 18.3 | 21 |
| 130 | 0.88 | 22 | 13 | 16 | 20 |
| 140 | 0.82 | 22 | 14 | 14 | 19 |
| 150 | 0.75 | 21 | - | - | - |
| 160 | 0.71 | 21 | - | - | - |
| 170 | 0.67 | 21 | - | - | - |
| 180 | 0.61 | 21 | - | - | - |
| 190 | 0.55 | 20 | - | - | - |
| 200 | 0.51 | 19 | - | - | - |
Notes: Supply Voltage: 13.8 Volts
| FILL RATES | |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 9 min. 45 sec. (± 15 sec.) |
| 165 to 200 PSI | 2 min. 25 sec. (± 05 sec.) |
Notes: Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
