ZFC Series In-line Vacuum Filters

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

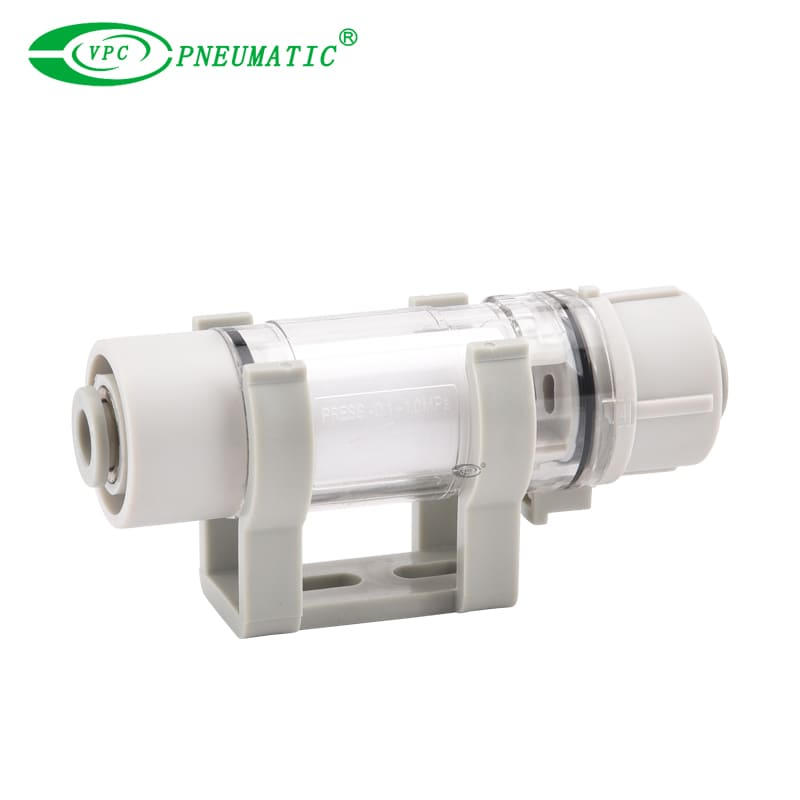

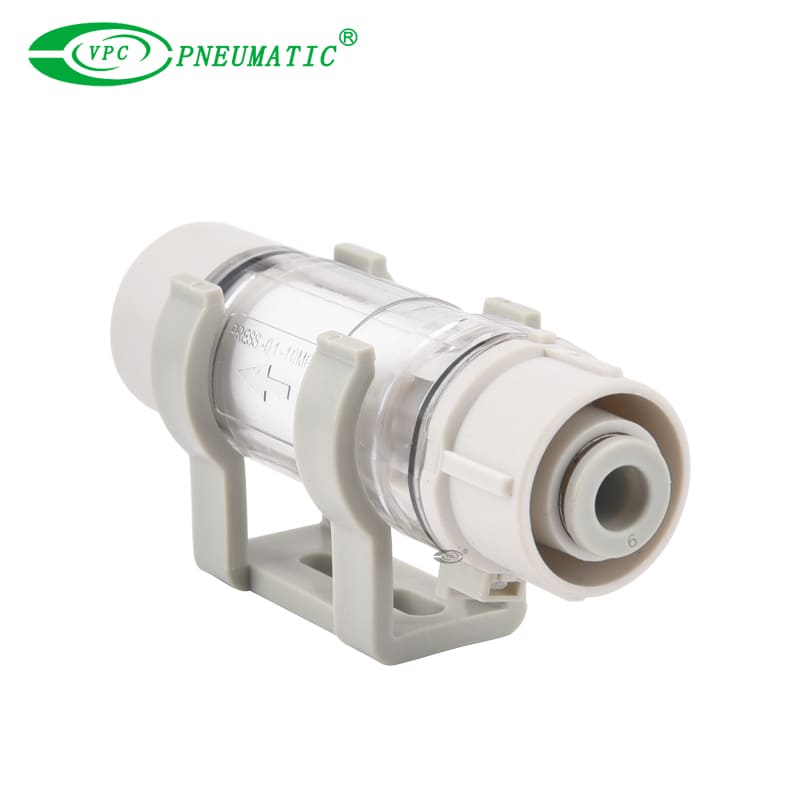

ZFC series is compact and lightweight with a high-flow design, ensuring optimal system performance. Its integrated cartridge and clear body allow for quick, tool-free replacement and visual inspection. With standard push-in fittings for easy in-line installation, it's the perfect choice to protect your vacuum components.
  • ZFC5

  • VPC Pneumatic

  • 8481804090

Fluid:
Thread sizes:
Availability:

Product Description

 Product Feature

1. Quick Installation & Integration
In-line design allows direct installation into the vacuum line, saving valuable space.
Equipped with standard one-touch (push-in) fittings for rapid, tool-free tube connection, significantly improving setup efficiency.
2. Tool-Free, Easy Maintenance

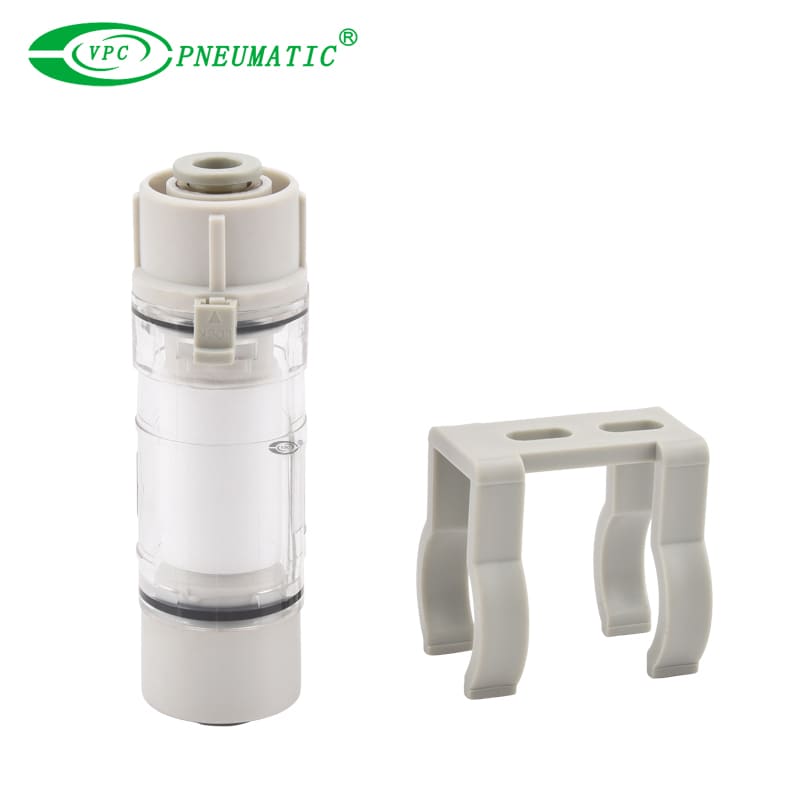

The integrated filter element and body design allows for a simple, one-step replacement process.
Replacement is entirely tool-free; a simple press of the release mechanism minimizes maintenance downtime.
3. Compact Design, High Flow Rate
Achieves high-efficiency filtration within an extremely compact and lightweight body, perfect for space-constrained automation.
The optimized internal flow path of this air filter ensures low pressure drop and maintains a high flow rate, preventing any loss of vacuum suction power.
4. Visual Monitoring
A highly transparent body allows operators to visually inspect the filter element's condition at any time.
This facilitates preventive maintenance, helping to avoid unexpected system shutdowns caused by a clogged filter.


Applications
1. Vacuum System Front-End Protection
Installed upstream from vacuum generators, pumps, or solenoid valves, this core vacuum filter effectively traps dust and impurities, extending the life of key vacuum components.
2. Automated Pick & Place Systems
Ideal for automated pick-and-place systems, it's placed between the suction cup and the vacuum line to prevent dust or debris from the workpiece from entering the system and ensuring reliable gripping.
3. Electronics & Semiconductor Handling
Essential in high-cleanliness applications like handling electronic components or semiconductors, preventing micro-particles from contaminating products or clogging delicate vacuum passages.
4. General Industrial Parts Handling
Perfect for general industrial handling in environments with airborne contaminants like dust, wood chips, or paper scraps, common in packaging, woodworking, and printing industries.


 Symbol

inline vacuum filters

pneumatic inline air filter

Product Specification

 Specifications

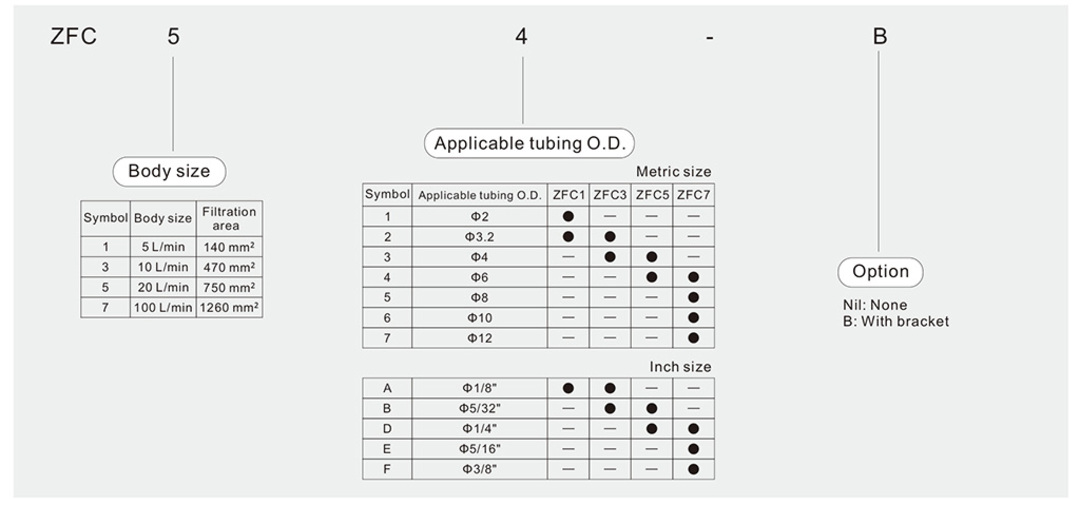

Model ZFC1□ ZFC3□ ZFC5□ ZFC7□

Port size

(Applicable tubing O.D.)

Metric size Φ2 Φ3.2 Φ3.2 Φ4 Φ4 Φ6 Φ6 Φ8 Φ10 Φ12
Inch size Φ1/8" Φ1/8" Φ5/32" Φ5/32" Φ1/4" Φ1/4" Φ5/16" Φ3/8"
Working medium Air, Nitrogen
Working pressure -100 kPa to 1.0 MPa (at 20°C)
Flow rate (Positive pressure) [L/min]* 15 45 50 80 100 200 250 450 550 650
Flow rate (Vacuum pressure) [L/min] 2 5 7 10 10 20 30 70 80 100
Proof pressure [MPa] 1.5 (at 20°C)
Working temperature [°C] 0 to 60
Filtration [μm] 5 (Filtration efficiency 95%)
Element replacement differential pressure [MPa] 0.1 (Vacuum pressure 20 kPa)
Filtration area [mm²] 140 470 750 1260
Applicable tubing material Nylon, Soft nylon, Polyurethane
Internal capacity [cm³] 0.5 1.7 4.5 6.0  7.0
Case material Polycarbonate

* Flow rate (positive pressure) conditions: Supply pressure of 0.7 MPa, Pressure drop of 30 kPa


ZFC Vacuum Generator


 Flow Rate Characteristics

ZFC Air filterIn-line Air Filter



Main Dimensions

 Main Dimensions

smc ZFC Air Filter

pneumatic vacuum filters

smc vacuum filter

inline suction filter

smc inline filter
