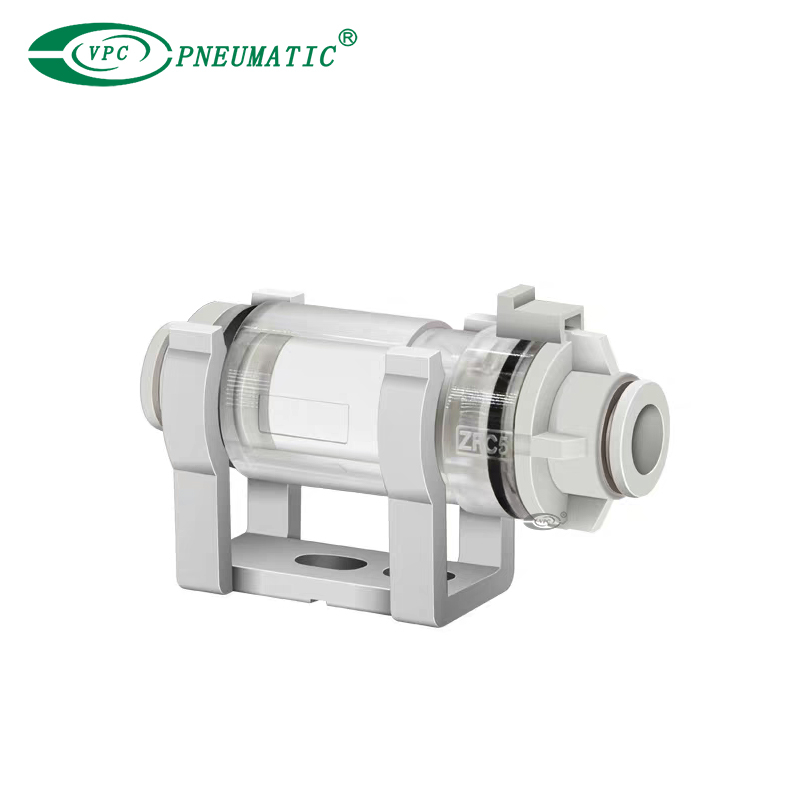

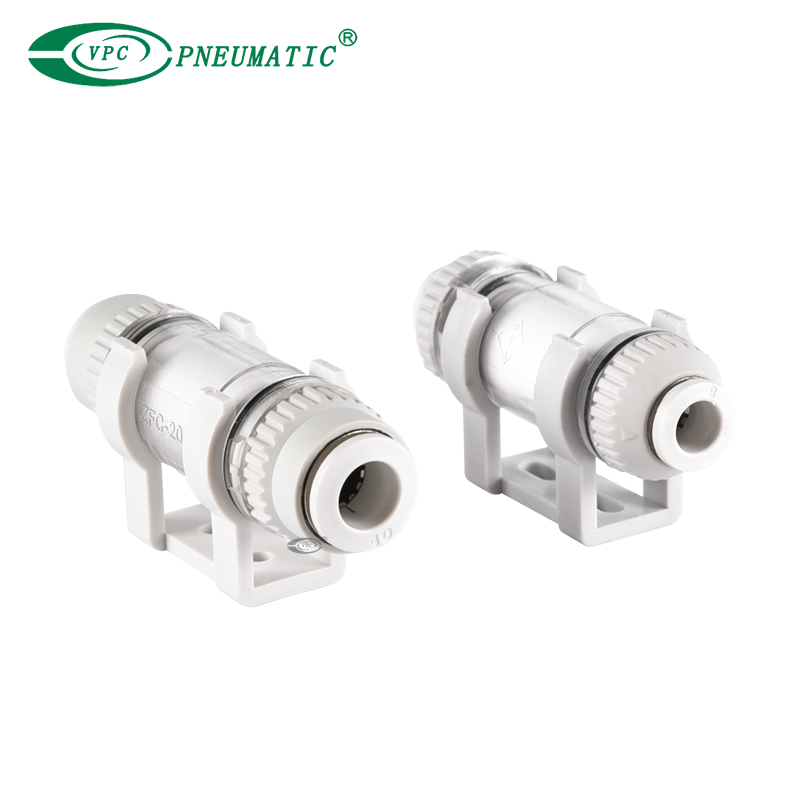

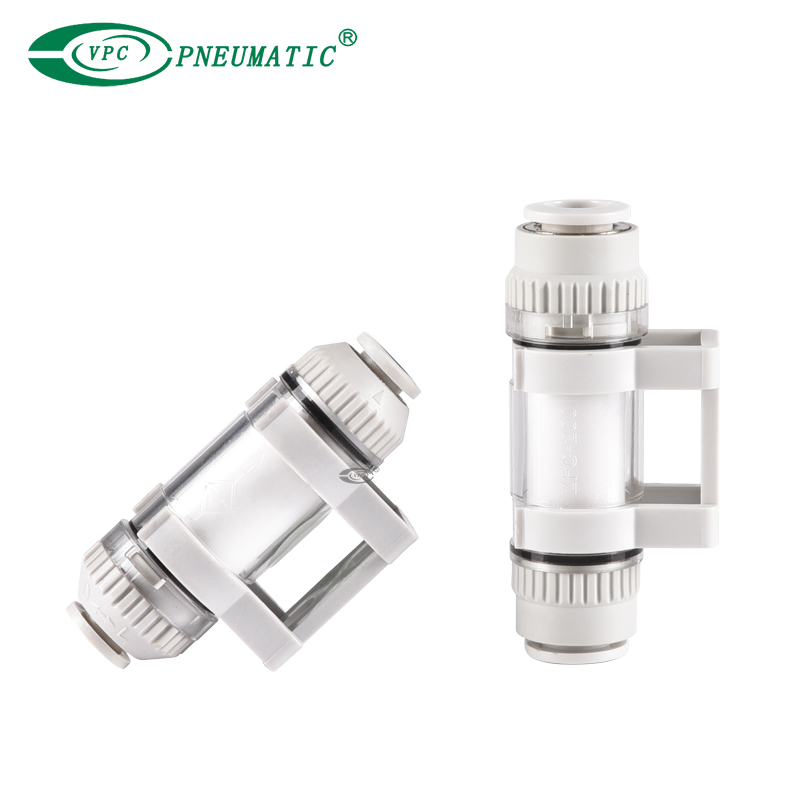

ZFC Series Inline Air Suction Filters
ZFC Series Inline Air Suction Filters ZFC Series Inline Air Suction Filters
ZFC Series Inline Air Suction Filters ZFC Series Inline Air Suction Filters
ZFC Series Inline Air Suction Filters ZFC Series Inline Air Suction Filters
ZFC Series Inline Air Suction Filters ZFC Series Inline Air Suction Filters

loading

ZFC Series Inline Air Suction Filters

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
ZF Series are air suction filters that prevent trouble in vacuum equipment caused by contaminants in the air. They are light weight and compact. ZF filter elements are easily replaced without tools.
  1. One unit offers both positive and negative pressure;
  2. One-touch fittings;
  3. Made to order blue element (X03) makes it easy to see white foreign matter;
  • ZFC

  • VPC Pneumatic

  • 8481804090

Fluid:
Thread sizes:
Availability:

Product Description

 Product Feature

1. One unit offers both positive and negative pressure.

2. Metric and inch sizes.

3. One-touch fittings.


 Symbol

ZFC Series In-line Air Filter Symbol

Ordering Code ZFC Series In-line Air Filter

ZFC     5①     4    -    B

①→ Body size
Symbol Body size Filtration area
1 5 L/min 140 mm²
3 10 L/min 470 mm²
5 20 L/min 750 mm²
7 100 L/min 1260 mm²
②→ Applicable tubing O.D.
Metric size
Symbol Applicable tubing O.D. ZFC1 ZFC3 ZFC5 ZFC7
1 Φ2
2 Φ3.2
3 Φ4
4 Φ6
5 Φ8
6 Φ10
7 Φ12
Inch size
A Φ1/8"
B Φ5/32"
D Φ1/4"
E Φ5/16"
F Φ3/8"
→ Option Nil: None B: With bracket


Product Specification

 Specifications

Model ZFC1□ ZFC3□ ZFC5□ ZFC7□

Port size

(Applicable tubing O.D.)

Metric size Φ2 Φ3.2 Φ3.2 Φ4 Φ4 Φ6 Φ6 Φ8 Φ10 Φ12
Inch size Φ1/8" Φ1/8" Φ5/32" Φ5/32" Φ1/4" Φ1/4" Φ5/16" Φ3/8"
Working medium Air, Nitrogen
Working pressure -100 kPa to 1.0 MPa (at 20°C)
Flow rate (Positive pressure) [L/min]* 15 45 50 80 100 200 250 450 550 650
Flow rate (Vacuum pressure) [L/min] 2 5 7 10 10 20 30 70 80 100
Proof pressure [MPa] 1.5 (at 20°C)
Working temperature [°C] 0 to 60
Filtration [μm] 5 (Filtration efficiency 95%)
Element replacement differential pressure [MPa] 0.1 (Vacuum pressure 20 kPa)
Filtration area [mm²] 140 470 750 1260
Applicable tubing material Nylon, Soft nylon, Polyurethane
Internal capacity [cm³] 0.5 1.7 4.5 6.0  7.0
Case material Polycarbonate

* Flow rate (positive pressure) conditions: Supply pressure of 0.7 MPa, Pressure drop of 30 kPa


ZFC Vacuum Generator


 Flow Rate Characteristics

ZFC Air filterZFC In-line Air Filter



Main Dimensions

 Main Dimensions

smc ZFC Air Filter

ZFC filter element

ZFC Series Air Filter

ZFC Air Filter Dimensions

ZFC Series Generator Filter
