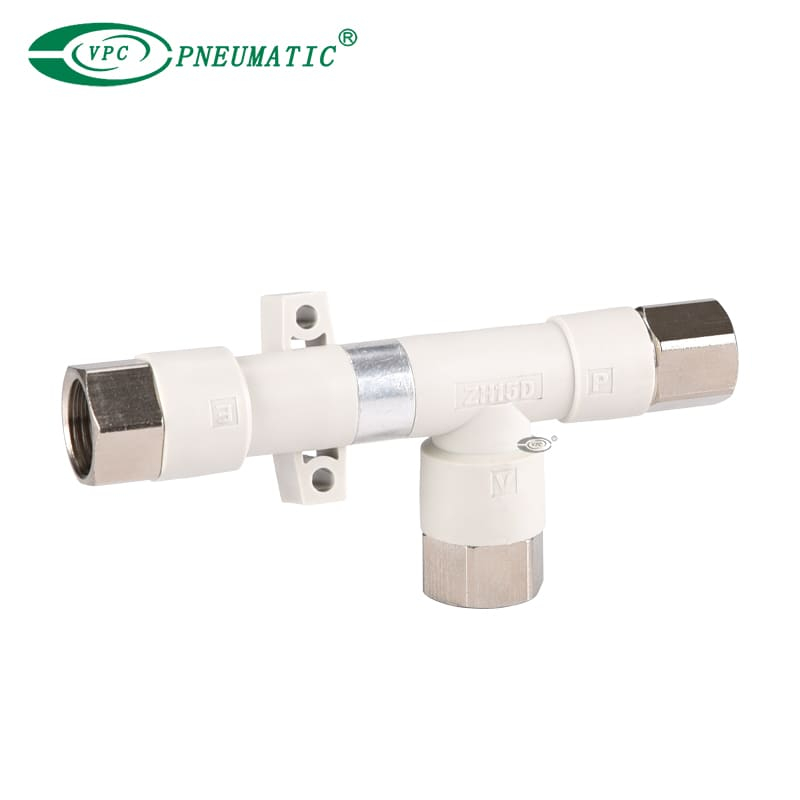

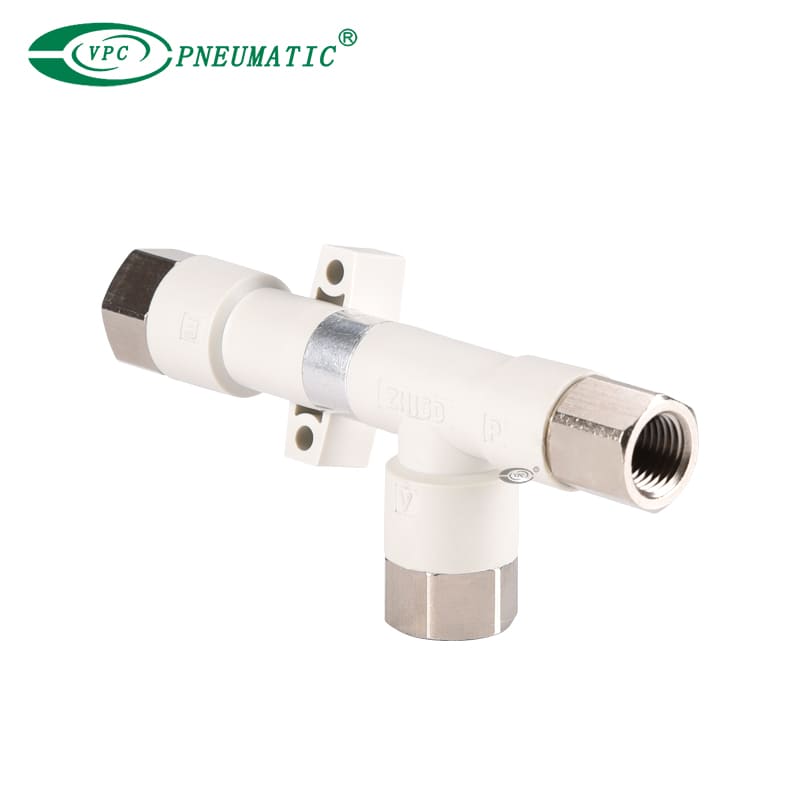

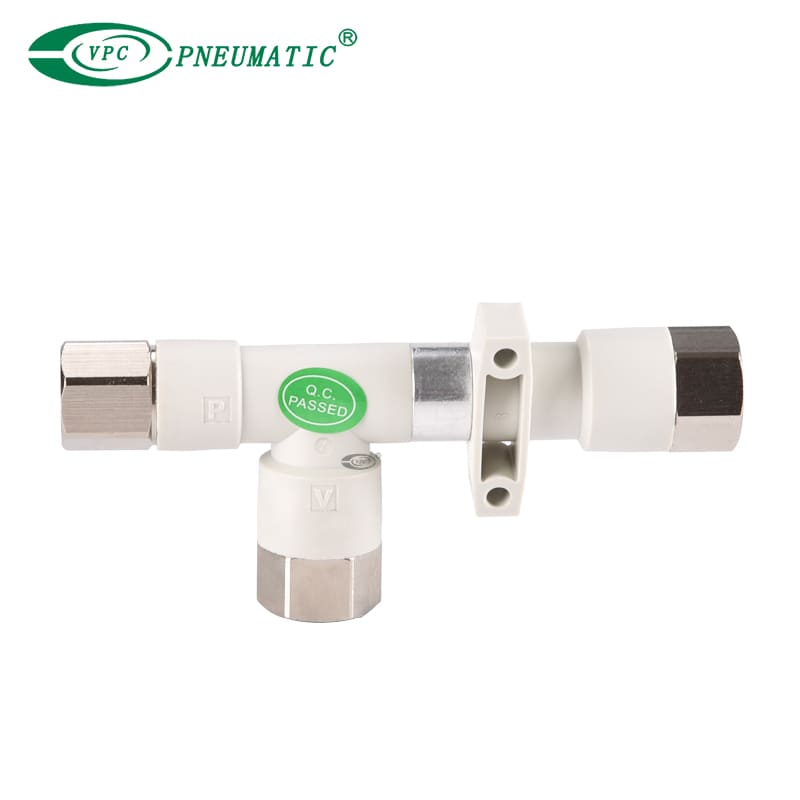

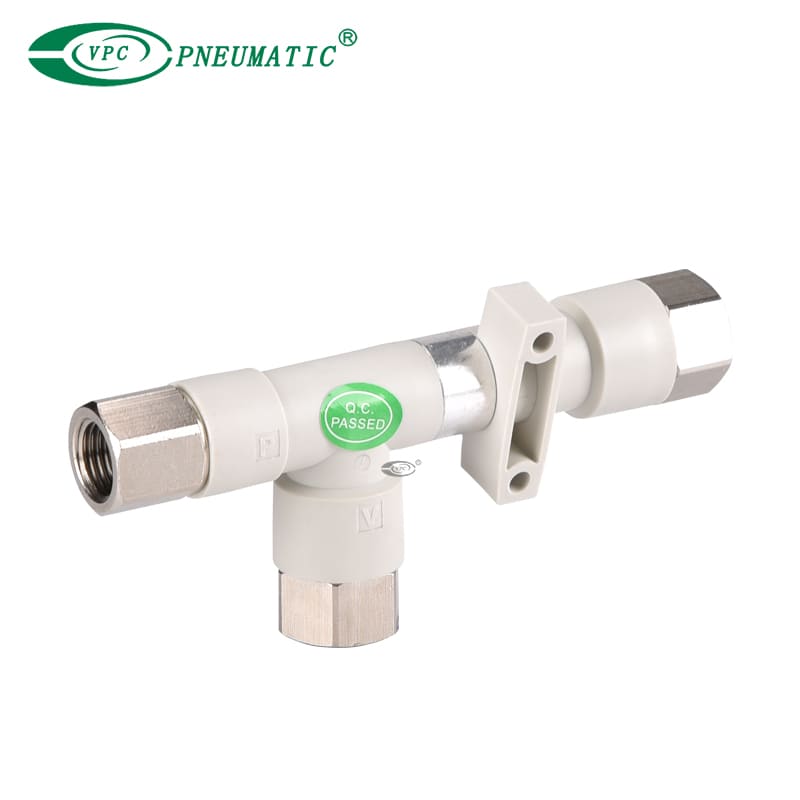

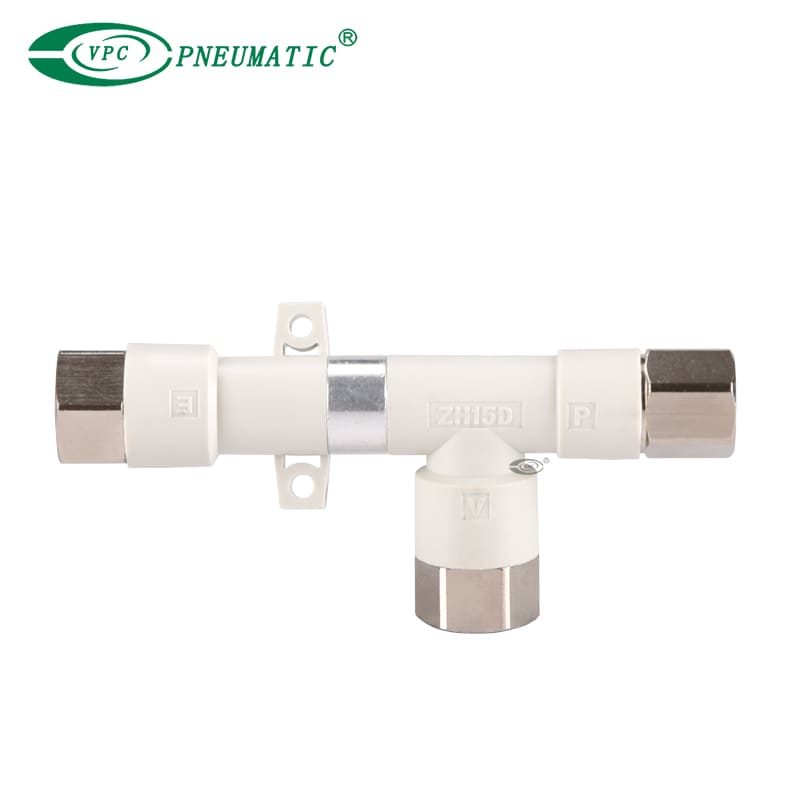

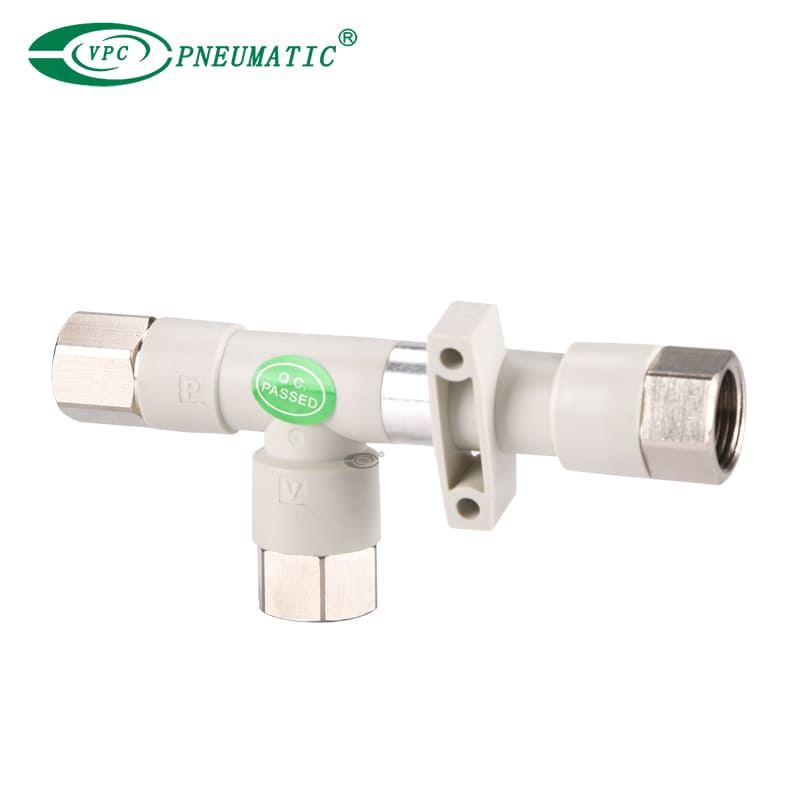

ZH Series Body Ported Type Vacuum Generator

Vacuum Generator series ZH offers a compact and lightweight point-of-use generator with standard flow and large flow capability. Two types are available: box type with a silencer exhaust and body ported type with individual exhaust. Also, these generators are often smaller and lighter than the bulky vacuum lines used in central vacuum systems. Available in various nozzle diameters and several port sizes.

Model:
ZH13D
Brand:
VPC Pneumatic

Nozzle diameter :	0.5mm 0.7mm 1mm 1.3mm 1.5mm 1.8mm
Vacuum pressure:	-88Kpa -48Kpa
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. Seven nozzle diameters (mm): 0.5, 0.7, 1.0, 1.3, 1.5, 1.8. 2.0.

2. Four mounting types direct, standard bracket, L-bracket, and DIN rail.

3. Silencer and standard bracket available.

■ Symbol

ZH Series Vacuum Ejector Symble

vacuum ejectors

Product Specifications

■ Specification

Model	Nozzle diameter (mm)	Body type	Working medium	Working temperature	Max. Working pressure	Standard supply pressure	Supply pressure
ZH05B□	0.5	Box type (Built-in silencer)	Air	5 to 50 ℃	0.6 MPa	0.45MPa	0.45MPa
ZH07B□	0.7
ZH10B□	1.0
ZH13B□	1.3
ZH05D□	0.5	Body ported type (Without silencer)
ZH07D□	0.7
ZH10D□	1.0
ZH13D□	1.3
ZH15D□	1.5	Body ported type (Without silencer)
ZH18D□	1.8
ZH20D□	2.0

Model	Max. vacuum pressure (kPa)*²		Max. suction flow rate [L/min (ANR)]		Air consumption [L/min (ANR)]	Connection (One-touch/Screw-in)
Model	Type S	Type L	Type S	Type L	Type S/Type L	SUP	VAC	EXH
ZH05B□	-88	-48	5	8	13	Φ6, Rc1/8 G1/8	Φ6, Rc1/8 G1/8	—
ZH07B□			12	20	25
ZH10B□			24	34	61
ZH13B□			40	70	92	Φ8, Rc1/8 G1/8	Φ10, Rc1/4 G1/4
ZH05D□	-88	-48	5	8	13	Φ6, Rc1/8 G1/8	Φ6, Rc1/8 G1/8	Φ6, Rc1/8 G1/8
ZH07D□			12	20	25	Φ6, Rc1/8 G1/8	Φ6, Rc1/8 G1/8	Φ6, Rc1/8 G1/8
ZH10D□			24	34	61	Φ6, Rc1/8 G1/8	Φ6, Rc1/8 G1/8	Φ8, Rc1/8 G1/8
ZH13D□			40	70	92	Φ8, Rc1/8 G1/8	Φ10, Rc1/4 G1/4	Φ10, Rc1/4 G1/4
ZH15D□	-88	-53	55	75	116	Φ10, Rc1/4 G1/4	Φ12, Rc3/8 G3/8	Φ12, Rc3/8 G3/8
ZH18D□			65	110	155	Φ12, Rc3/8 G3/8	Φ12, Rc3/8 G3/8	Φ12, Rc3/8 G3/8
ZH20D□			85	135	210	Φ12, Rc3/8 G3/8	Φ16, Rc1/2 G1/2	Φ16, Rc1/2 G1/2

Main Dimensions

ZH Vacuum Ejector Generator design

Model	A	B	C	D	ΦE	F	ΦG	H	I	ΦJ	K	L	M	ΦN	O	P
ZH05DL-06-06-06	58.5	14.2	34	22	6	16.8	3.2	16.8	16.8	6	24	21	7.8	6	17	24
ZH05DS-06-06-06
ZH07DS-06-06-06	61											22
ZH07DL-06-06-06
ZH10DS-06-06-08	66	17.2	37	23	6	16.8	4.2	16.8	18.7	6	26	24.5	9.6	8	20	28
ZH10DL-06-06-08	70
ZH13DL-08-10-10	74.5	20	42.5	27.5	8	18.7	4.2	21.6	21.6	10	28	27	10.7	10	22	30
ZH13DS-08-10-10	79.5
ZH15DL-10-12-12	93.5	22.5	47	29.5	10	21.6	4.2	21.8	21.6	12	31.5	33	12	12	27	35
ZH15DS-10-12-12

ZH 13D

Model	A	B	C	D	ΦE	F	ΦG	H	I	J	K	L	M	ΦN	O	P
ZH05DL-06-01-06	58.5	14.2	41.5	29.5	6	16.8	3.2	12	16.8	Rc1/8	24	21	7.8	6	17	24
ZH05DS-06-01-06
ZH07DS-06-01-06	61											22
ZH07DL-06-01-06
ZH10DS-06-01-08	66	17.2	44.5	30.5	6	16.8	4.2	12	18.7	Rc1/8	26	24.5	9.6	8	20	28
ZH10DL-06-01-08	70
ZH13DL-08-02-10	74.5	20	53.5	38.5	8	18.7	4.2	17	21.6	Rc1/4	28	27	10.7	10	22	30
ZH13DS-08-02-10	79.5
ZH15DL-10-03-12	93.3	22.5	58.5	41	10	21.6	4.2	19	21.6	Rc3/8	31.5	33	12	12	27	35
ZH15DS-10-03-12
ZH05DS-06-F01-06	58.5	14.2	41.5	29.5	6	16.8	3.2	12	16.8	G1/8	24	21	7.8	6	17	24
ZH05DL-06-F01-06
ZH07DS-06-F01-06	61											22
ZH07DL-06-F01-06
ZH10DL-06-F01-08	66	17.2	44.5	30.5	6	16.8	4.2	12	18.7	G1/8	26	24.5	9.6	8	20	28
ZH10DS-06-F01-08	70
ZH13DS-08-F02-10	74.5	20	54	39	8	18.7	4.2	17	21.6	G1/4	28	27	10.7	10	22	30
ZH13DL-08-F02-10	79.5
ZH15DL-10-F03-12	93.3	22.5	58.5	41	10	21.6	4.2	19	21.6	G3/8	31.5	32.8	12	12	27	35
ZH15DS-10-F03-12

smc vacuum ejector

Model	A	B	C	D	E	F	ΦG	H	I	J	K	L	M	N	O	P
ZH05DL-01-01-01	73.5	14.2	41.5	29.5	Rc1/8	12	3.2	12	12	Rc1/8	31.5	28.5	7.8	Rc1/8	17	24
ZH05DS-01-01-01
ZH07DS-01-01-01	76											29.5
ZH07DL-01-01-01
ZH10DS-01-01-01	81.8	17.2	44.5	30.5	Rc1/8	12	4.2	12	14	Rc1/8	33.5	32.8	9.6	Rc1/8	20	28
ZH10DL-01-01-01	85.8
ZH13DL-01-02-02	93.8	20	53.5	38.5	Rc1/8	14	4.2	17	17	Rc1/4	36.3	38	10.7	Rc1/4	22	30
ZH13DS-01-02-02	98.8
ZH15DL-02-03-03	116.5	22.5	58.5	41	Rc1/4	17	4.2	19	19	Rc3/8	43	44.5	12	Rc3/8	27	35
ZH15DS-02-03-03
ZH05DS-F01-F01-F01	73.5	14.2	41.5	29.5	G1/8	12	3.2	12	12	G1/8	31.5	28.5	7.8	G1/8	17	24
ZH05DL-F01-F01-F01
ZH07DS-F01-F01-F01	76											29.5
ZH07DL-F01-F01-F01
ZH10DL-F01-F01-F01	81.8	17.2	44.5	30.5	G1/8	12	4.2	12	14	G1/8	33.5	32.8	9.6	G1/8	20	28
ZH10DS-F01-F01-F01	85.8
ZH13DS-F01-F02-F02	94.3	20	54	39	G1/8	14	4.2	17	17	G1/4	36.3	38.5	10.7	G1/4	22	30
ZH13DL-F01-F02-F02	99.3
ZH15DL-F02-F03-F03	116.5	22.5	58.5	41	G1/4	17	4.2	19	19	G3/8	43	44.5	12	G3/8	27	35
ZH15DS-F02-F03-F03

vacuum ejector smc

Model	A	B	C	D	ΦE	F	ΦG	H	I	ΦJ	K	L	M	ΦN	O
ZH18DL-12-12-12	114	21	41	30.5	Φ12	21.8	Φ3.5	21.8	21.8	Φ12	35.5	50	17	Φ12	10
ZH18DS-12-12-12
ZH20DS-12-16-16	124.6	26.8	46	35.5	Φ12	21.8	Φ3.5	24.2	24.2	Φ16	38.5	54.3	22	Φ16	12
ZH20DL-12-16-16

inline vacuum ejector

Model	A	B	C	D	ΦE	F	ΦG	H	I	J	K	L	M	ΦN	O
ZH18DL-12-03-12	114	21	52.5	42	Φ12	21.8	Φ3.5	19	21.8	Rc3/8	35.5	50	17	Φ12	10
ZH18DS-12-03-12
ZH20DS-12-04-16	124.6	26.8	61	50.5	Φ12	21.8	Φ3.5	24	24.2	Rc1/2	38.5	54.3	22	Φ16	12
ZH20DL-12-04-16
ZH18DS-12-F03-12	114	21	52.5	42	Φ12	21.8	Φ3.5	19	21.8	G3/8	35.5	50	17	Φ12	10
ZH18DL-12-F03-12
ZH20DS-12-F04-16	124.6	26.8	61	50.5	Φ12	21.8	Φ3.5	24	24.2	Rc1/2	38.5	54.3	22	Φ16	12
ZH20DL-12-F04-16

pneumatic vacuum ejecto

Model	A	B	C	D	E	F	ΦG	H	I	J	K	L	M	N	O
ZH18DL-03-03-03	137	21	52.5	42	Rc3/8	19	Φ3.5	19	19	Rc3/8	47	61.5	17	Rc3/8	10
ZH18DS-03-03-03
ZH20DL-03-04-04	151.1	26.8	61	50.5	Rc3/8	19	Φ3.5	24	24	Rc1/2	50	69.3	22	Rc1/2	12
ZH20DS-03-04-04
ZH18DS-F03-F03-F03	137	21	52.5	42	G3/8	19	Φ3.5	19	19	G3/8	47	61.5	17	G3/8	10
ZH18DL-F03-F03-F03
ZH20DS-F03-F04-F04	151.1	26.8	61	50.5	G3/8	19	Φ3.5	24	24	G1/2	50	69.3	22	G1/2	12
ZH20DL-F03-F04-F04

Catalogue PDF

ZH Series Box Type (Built-in Silencer)&Body Ported Type Vacuum Ejector.pdf
