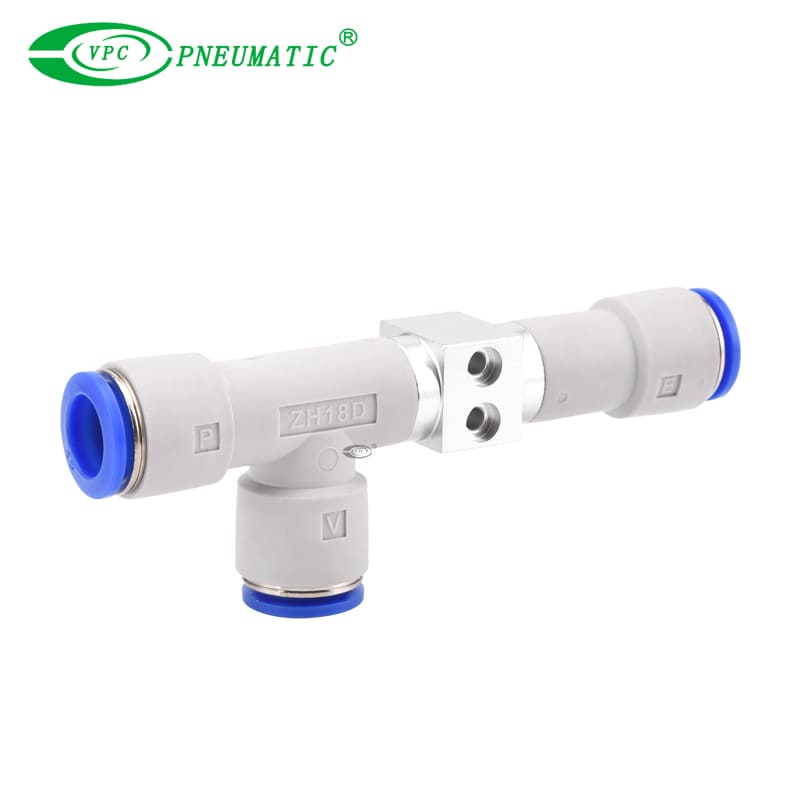

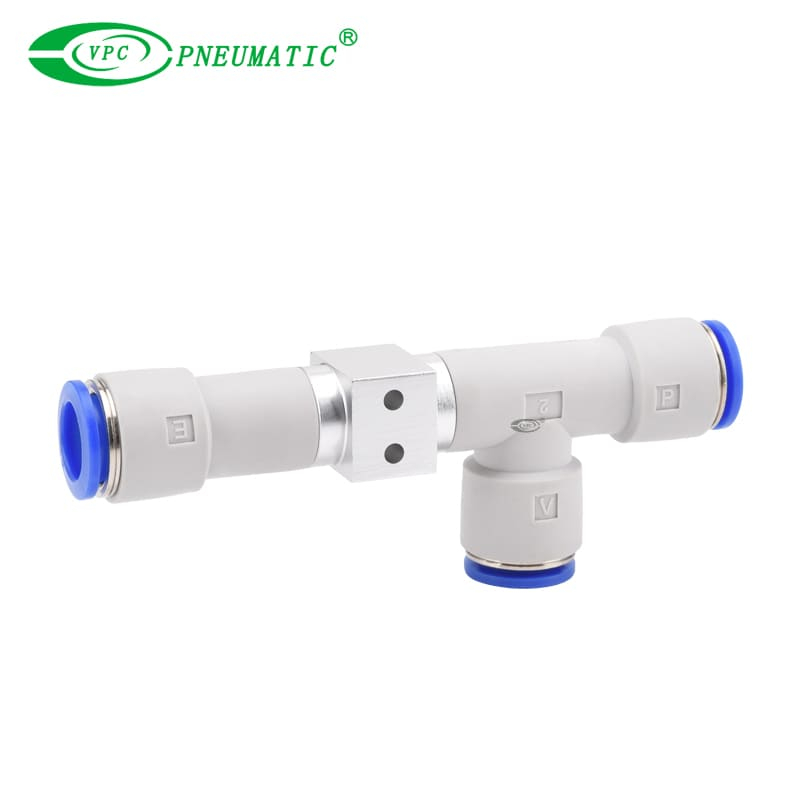

ZH18DS
VPC Pneumatic
Nozzle diameter : | |
---|---|
Vacuum pressure: | |
Availability: | |
Product Description
1. Dual Configurations for Any Need
Box Type: Features an integrated, high-performance silencer for significantly reduced exhaust noise, ideal for open or operator-present environments.
Body Ported Type: Offers maximum compactness for applications where space is critical, with an individual exhaust port for remote piping.
2. Scalable Performance (Standard & High-Flow)
Precisely match performance to your application's needs, from delicate handling to high-flow lifting, by selecting from seven available nozzle diameters: Ø0.5, Ø0.7, Ø1.0, Ø1.3, Ø1.5, Ø1.8, and Ø2.0mm.
3. Unmatched Installation Flexibility
Integrate seamlessly into any machine design with four distinct mounting types: direct mounting, a standard bracket, an L-bracket, or a fast-install DIN rail mount.
4. A Superior Alternative to Central Vacuum
This point-of-use vacuum generator eliminates the need for long, bulky, and inefficient vacuum lines, reducing system complexity, improving response times, and lowering energy costs.
Applications
1. Decentralized Vacuum Systems
The perfect foundation for a decentralized system, providing reliable vacuum precisely where needed and eliminating the pressure drops of a central system.
2. Robotic End-of-Arm Tooling (EOAT)
Its lightweight design and multiple configurations make it the top choice for mounting on robotic arms for any pick-and-place task.
3. High-Speed Pick & Place
Provides the fast vacuum and release cycles required for high-speed automation in electronics, packaging, and assembly.
4. Modular Machinery & Custom Automation
With DIN rail mounting and versatile porting, the ZH series is easily integrated into modular machine frames and custom-built automation equipment.
Product Specifications
Model | Nozzle diameter (mm) | Body type | Working medium | Working temperature | Max. Working pressure | Standard supply pressure | Supply pressure |
ZH05B□ | 0.5 | Box type (Built-in silencer) | Air | 5 to 50 ℃ | 0.6 MPa | 0.45MPa | 0.45MPa |
ZH07B□ | 0.7 | ||||||
ZH10B□ | 1.0 | ||||||
ZH13B□ | 1.3 | ||||||
ZH05D□ | 0.5 | Body ported type (Without silencer) | |||||
ZH07D□ | 0.7 | ||||||
ZH10D□ | 1.0 | ||||||
ZH13D□ | 1.3 | ||||||
ZH15D□ | 1.5 | Body ported type (Without silencer) | |||||
ZH18D□ | 1.8 | ||||||
ZH20D□ | 2.0 |
Model | Max. vacuum pressure (kPa)*2 | Max. suction flow rate [L/min (ANR)] | Air consumption [L/min (ANR)] | Connection (One-touch/Screw-in) | ||||
Type S | Type L | Type S | Type L | Type S/Type L | SUP | VAC | EXH | |
ZH05B□ | -88 | -48 | 5 | 8 | 13 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 | — |
ZH07B□ | 12 | 20 | 25 | |||||
ZH10B□ | 24 | 34 | 61 | |||||
ZH13B□ | 40 | 70 | 92 | Φ8, Rc1/8 G1/8 | Φ10, Rc1/4 G1/4 | |||
ZH05D□ | -88 | -48 | 5 | 8 | 13 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 |
ZH07D□ | 12 | 20 | 25 | |||||
ZH10D□ | 24 | 34 | 61 | Φ6, Rc1/8 G1/8 | Φ6, Rc1/8 G1/8 | Φ8, Rc1/8 G1/8 | ||
ZH13D□ | 40 | 70 | 92 | Φ8, Rc1/8 G1/8 | Φ10, Rc1/4 G1/4 | Φ10, Rc1/4 G1/4 | ||
ZH15D□ | -88 | -53 | 55 | 75 | 116 | Φ10, Rc1/4 G1/4 | Φ12, Rc3/8 G3/8 | Φ12, Rc3/8 G3/8 |
ZH18D□ | 65 | 110 | 155 | Φ12, Rc3/8 G3/8 | Φ12, Rc3/8 G3/8 | Φ12, Rc3/8 G3/8 | ||
ZH20D□ | 85 | 135 | 210 | Φ12, Rc3/8 G3/8 | Φ16, Rc1/2 G1/2 | Φ16, Rc1/2 G1/2 |
Main Dimensions
Model | A | B | C | D | ΦE | F | ΦG | H | I | ΦJ | K | L | M | ΦN | O | P |
ZH05DL-06-06-06 | 58.5 | 14.2 | 34 | 22 | 6 | 16.8 | 3.2 | 16.8 | 16.8 | 6 | 24 | 21 | 7.8 | 6 | 17 | 24 |
ZH05DS-06-06-06 | ||||||||||||||||
ZH07DS-06-06-06 | 61 | 22 | ||||||||||||||
ZH07DL-06-06-06 | ||||||||||||||||
ZH10DS-06-06-08 | 66 | 17.2 | 37 | 23 | 6 | 16.8 | 4.2 | 16.8 | 18.7 | 6 | 26 | 24.5 | 9.6 | 8 | 20 | 28 |
ZH10DL-06-06-08 | 70 | |||||||||||||||
ZH13DL-08-10-10 | 74.5 | 20 | 42.5 | 27.5 | 8 | 18.7 | 4.2 | 21.6 | 21.6 | 10 | 28 | 27 | 10.7 | 10 | 22 | 30 |
ZH13DS-08-10-10 | 79.5 | |||||||||||||||
ZH15DL-10-12-12 | 93.5 | 22.5 | 47 | 29.5 | 10 | 21.6 | 4.2 | 21.8 | 21.6 | 12 | 31.5 | 33 | 12 | 12 | 27 | 35 |
ZH15DS-10-12-12 |
Model | A | B | C | D | ΦE | F | ΦG | H | I | J | K | L | M | ΦN | O | P |
ZH05DL-06-01-06 | 58.5 | 14.2 | 41.5 | 29.5 | 6 | 16.8 | 3.2 | 12 | 16.8 | Rc1/8 | 24 | 21 | 7.8 | 6 | 17 | 24 |
ZH05DS-06-01-06 | ||||||||||||||||
ZH07DS-06-01-06 | 61 | 22 | ||||||||||||||
ZH07DL-06-01-06 | ||||||||||||||||
ZH10DS-06-01-08 | 66 | 17.2 | 44.5 | 30.5 | 6 | 16.8 | 4.2 | 12 | 18.7 | Rc1/8 | 26 | 24.5 | 9.6 | 8 | 20 | 28 |
ZH10DL-06-01-08 | 70 | |||||||||||||||
ZH13DL-08-02-10 | 74.5 | 20 | 53.5 | 38.5 | 8 | 18.7 | 4.2 | 17 | 21.6 | Rc1/4 | 28 | 27 | 10.7 | 10 | 22 | 30 |
ZH13DS-08-02-10 | 79.5 | |||||||||||||||
ZH15DL-10-03-12 | 93.3 | 22.5 | 58.5 | 41 | 10 | 21.6 | 4.2 | 19 | 21.6 | Rc3/8 | 31.5 | 33 | 12 | 12 | 27 | 35 |
ZH15DS-10-03-12 | ||||||||||||||||
ZH05DS-06-F01-06 | 58.5 | 14.2 | 41.5 | 29.5 | 6 | 16.8 | 3.2 | 12 | 16.8 | G1/8 | 24 | 21 | 7.8 | 6 | 17 | 24 |
ZH05DL-06-F01-06 | ||||||||||||||||
ZH07DS-06-F01-06 | 61 | 22 | ||||||||||||||
ZH07DL-06-F01-06 | ||||||||||||||||
ZH10DL-06-F01-08 | 66 | 17.2 | 44.5 | 30.5 | 6 | 16.8 | 4.2 | 12 | 18.7 | G1/8 | 26 | 24.5 | 9.6 | 8 | 20 | 28 |
ZH10DS-06-F01-08 | 70 | |||||||||||||||
ZH13DS-08-F02-10 | 74.5 | 20 | 54 | 39 | 8 | 18.7 | 4.2 | 17 | 21.6 | G1/4 | 28 | 27 | 10.7 | 10 | 22 | 30 |
ZH13DL-08-F02-10 | 79.5 | |||||||||||||||
ZH15DL-10-F03-12 | 93.3 | 22.5 | 58.5 | 41 | 10 | 21.6 | 4.2 | 19 | 21.6 | G3/8 | 31.5 | 32.8 | 12 | 12 | 27 | 35 |
ZH15DS-10-F03-12 |
Model | A | B | C | D | E | F | ΦG | H | I | J | K | L | M | N | O | P |
ZH05DL-01-01-01 | 73.5 | 14.2 | 41.5 | 29.5 | Rc1/8 | 12 | 3.2 | 12 | 12 | Rc1/8 | 31.5 | 28.5 | 7.8 | Rc1/8 | 17 | 24 |
ZH05DS-01-01-01 | ||||||||||||||||
ZH07DS-01-01-01 | 76 | 29.5 | ||||||||||||||
ZH07DL-01-01-01 | ||||||||||||||||
ZH10DS-01-01-01 | 81.8 | 17.2 | 44.5 | 30.5 | Rc1/8 | 12 | 4.2 | 12 | 14 | Rc1/8 | 33.5 | 32.8 | 9.6 | Rc1/8 | 20 | 28 |
ZH10DL-01-01-01 | 85.8 | |||||||||||||||
ZH13DL-01-02-02 | 93.8 | 20 | 53.5 | 38.5 | Rc1/8 | 14 | 4.2 | 17 | 17 | Rc1/4 | 36.3 | 38 | 10.7 | Rc1/4 | 22 | 30 |
ZH13DS-01-02-02 | 98.8 | |||||||||||||||
ZH15DL-02-03-03 | 116.5 | 22.5 | 58.5 | 41 | Rc1/4 | 17 | 4.2 | 19 | 19 | Rc3/8 | 43 | 44.5 | 12 | Rc3/8 | 27 | 35 |
ZH15DS-02-03-03 | ||||||||||||||||
ZH05DS-F01-F01-F01 | 73.5 | 14.2 | 41.5 | 29.5 | G1/8 | 12 | 3.2 | 12 | 12 | G1/8 | 31.5 | 28.5 | 7.8 | G1/8 | 17 | 24 |
ZH05DL-F01-F01-F01 | ||||||||||||||||
ZH07DS-F01-F01-F01 | 76 | 29.5 | ||||||||||||||
ZH07DL-F01-F01-F01 | ||||||||||||||||
ZH10DL-F01-F01-F01 | 81.8 | 17.2 | 44.5 | 30.5 | G1/8 | 12 | 4.2 | 12 | 14 | G1/8 | 33.5 | 32.8 | 9.6 | G1/8 | 20 | 28 |
ZH10DS-F01-F01-F01 | 85.8 | |||||||||||||||
ZH13DS-F01-F02-F02 | 94.3 | 20 | 54 | 39 | G1/8 | 14 | 4.2 | 17 | 17 | G1/4 | 36.3 | 38.5 | 10.7 | G1/4 | 22 | 30 |
ZH13DL-F01-F02-F02 | 99.3 | |||||||||||||||
ZH15DL-F02-F03-F03 | 116.5 | 22.5 | 58.5 | 41 | G1/4 | 17 | 4.2 | 19 | 19 | G3/8 | 43 | 44.5 | 12 | G3/8 | 27 | 35 |
ZH15DS-F02-F03-F03 |
Model | A | B | C | D | ΦE | F | ΦG | H | I | ΦJ | K | L | M | ΦN | O |
ZH18DL-12-12-12 | 114 | 21 | 41 | 30.5 | Φ12 | 21.8 | Φ3.5 | 21.8 | 21.8 | Φ12 | 35.5 | 50 | 17 | Φ12 | 10 |
ZH18DS-12-12-12 | |||||||||||||||
ZH20DS-12-16-16 | 124.6 | 26.8 | 46 | 35.5 | Φ12 | 21.8 | Φ3.5 | 24.2 | 24.2 | Φ16 | 38.5 | 54.3 | 22 | Φ16 | 12 |
ZH20DL-12-16-16 |
Model | A | B | C | D | ΦE | F | ΦG | H | I | J | K | L | M | ΦN | O |
ZH18DL-12-03-12 | 114 | 21 | 52.5 | 42 | Φ12 | 21.8 | Φ3.5 | 19 | 21.8 | Rc3/8 | 35.5 | 50 | 17 | Φ12 | 10 |
ZH18DS-12-03-12 | |||||||||||||||
ZH20DS-12-04-16 | 124.6 | 26.8 | 61 | 50.5 | Φ12 | 21.8 | Φ3.5 | 24 | 24.2 | Rc1/2 | 38.5 | 54.3 | 22 | Φ16 | 12 |
ZH20DL-12-04-16 | |||||||||||||||
ZH18DS-12-F03-12 | 114 | 21 | 52.5 | 42 | Φ12 | 21.8 | Φ3.5 | 19 | 21.8 | G3/8 | 35.5 | 50 | 17 | Φ12 | 10 |
ZH18DL-12-F03-12 | |||||||||||||||
ZH20DS-12-F04-16 | 124.6 | 26.8 | 61 | 50.5 | Φ12 | 21.8 | Φ3.5 | 24 | 24.2 | Rc1/2 | 38.5 | 54.3 | 22 | Φ16 | 12 |
ZH20DL-12-F04-16 |
Model | A | B | C | D | E | F | ΦG | H | I | J | K | L | M | N | O |
ZH18DL-03-03-03 | 137 | 21 | 52.5 | 42 | Rc3/8 | 19 | Φ3.5 | 19 | 19 | Rc3/8 | 47 | 61.5 | 17 | Rc3/8 | 10 |
ZH18DS-03-03-03 | |||||||||||||||
ZH20DL-03-04-04 | 151.1 | 26.8 | 61 | 50.5 | Rc3/8 | 19 | Φ3.5 | 24 | 24 | Rc1/2 | 50 | 69.3 | 22 | Rc1/2 | 12 |
ZH20DS-03-04-04 | |||||||||||||||
ZH18DS-F03-F03-F03 | 137 | 21 | 52.5 | 42 | G3/8 | 19 | Φ3.5 | 19 | 19 | G3/8 | 47 | 61.5 | 17 | G3/8 | 10 |
ZH18DL-F03-F03-F03 | |||||||||||||||
ZH20DS-F03-F04-F04 | 151.1 | 26.8 | 61 | 50.5 | G3/8 | 19 | Φ3.5 | 24 | 24 | G1/2 | 50 | 69.3 | 22 | G1/2 | 12 |
ZH20DL-F03-F04-F04 |
