ZS Series 2/2 Way Normal Close Solenoid Valve
ZS Series 2/2 Way Normal Close Solenoid Valve ZS Series 2/2 Way Normal Close Solenoid Valve
ZS Series 2/2 Way Normal Close Solenoid Valve ZS Series 2/2 Way Normal Close Solenoid Valve

loading

ZS Series 2/2 Way Normal Close Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. 2W solenoid valve has normally close/normally open, available body: brass, SS304, SS316
  2. Multiple seals are available for different media.
  3. Energy saving with an 80% reduction in power consumption.
  4. Wide range of sizes from 1/8" to 2", with both threaded and flanged connections.
  5. Diaphragm pilot solenoid valve, with lower working pressure (10mm is a special one).

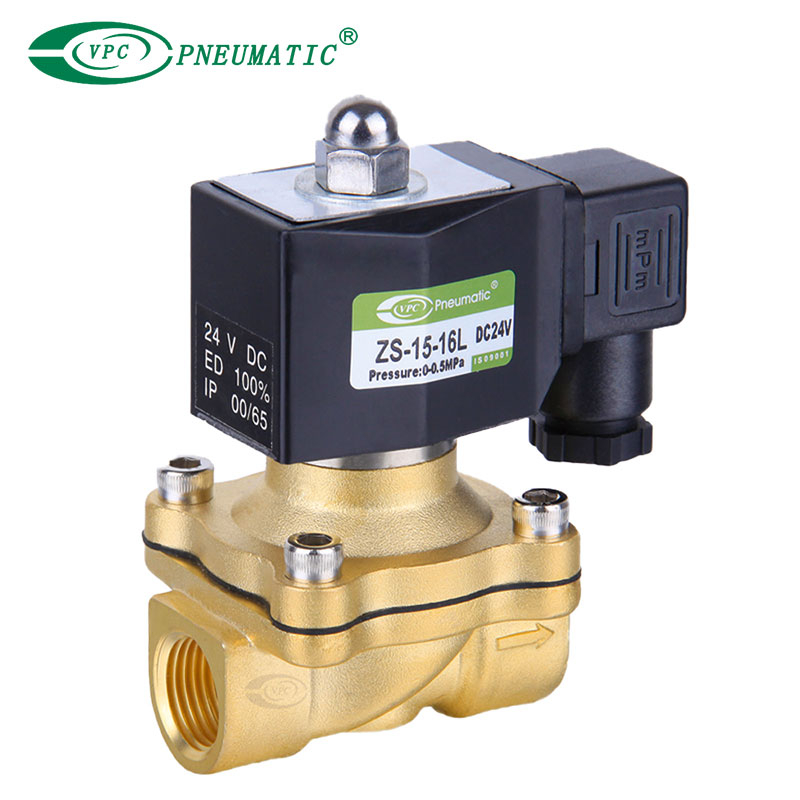

  • ZS15-16L

  • VPC Pneumatic

  • 8481804090

Working medium:
Air/Gas/Water/Oil
Type:
Normal close
Working temperature:
0 to 130℃
Ambient temperature:
0 to 65℃
Body Material:
Brass,SS316
Availability:
Inquire Add to Basket

Product Description

2/2 Way solenoid valve

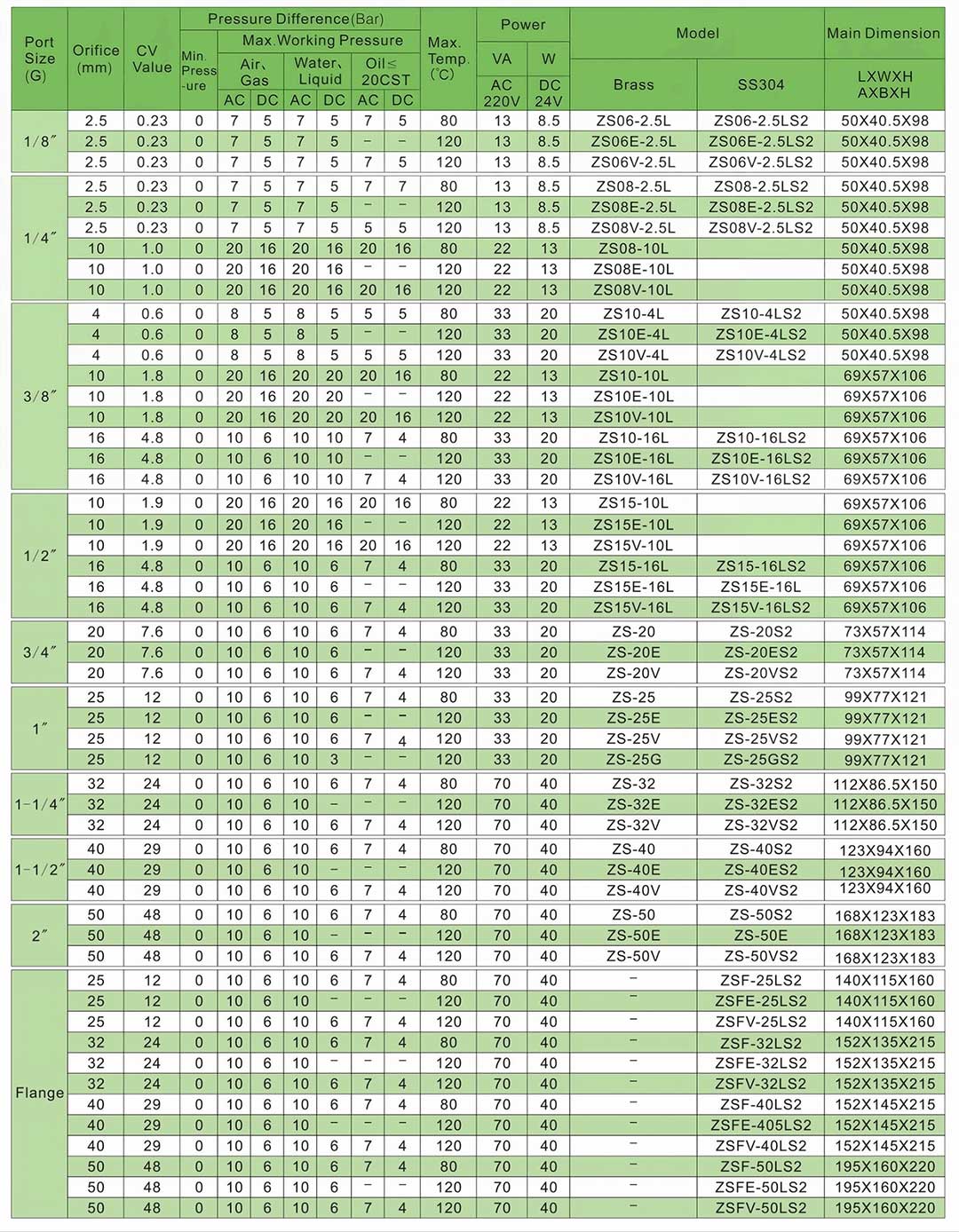

Product Specifications

Working MediumAir, Gas, Water, Oil
TypeNormal close
Ambient temperature0 to 65℃
Working temperature0 to 130℃
Seal materialNBR (EPDM and VITON are optional)
Body materialBrass,SS316

Mounting

Direction of flow is the arrow, installed in any position, but the best position is the solenoid coil upright, the horizontal direction in installation for enhancing the service life.

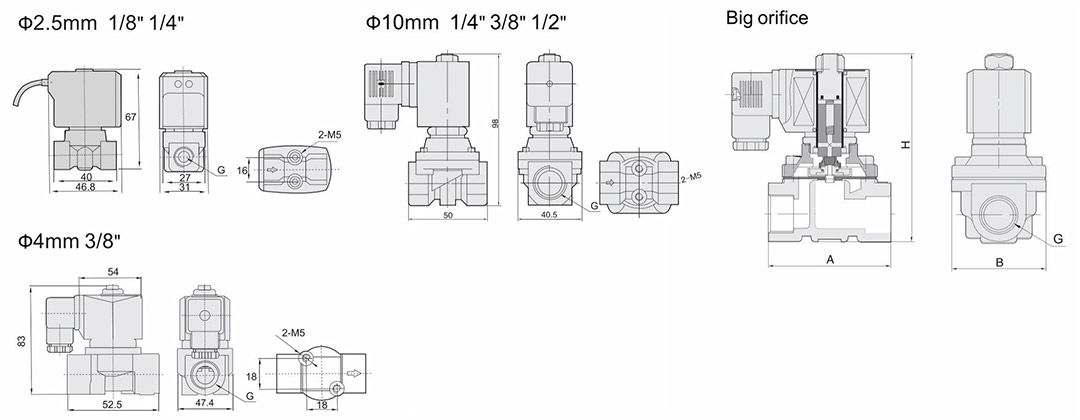

Main Dimensions

solenoid valve types12 volt solenoid valve for water

Catalog Download

download ZS Series Solenoid Valve (Normal Close）.pdf
