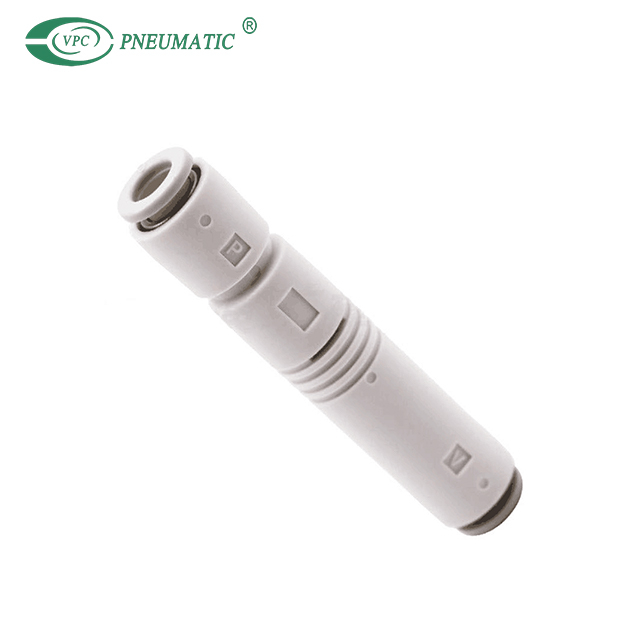

ZU Series Inline Vacuum Generator

Share to:
Vacuum Generator series ZU combine design simplicity with high performance. Simply plug an air supply tube in one end, and vacuum is ready at the other end. Also, these generators are often smaller and lighter than the bulky vacuum lines used in central vacuum systems. The slim ZU generators are extra compact. A built-in exhaust silencer keeps generator noise to a minimum. Available in four nozzle diameters and a number of port sizes.

  • ZU07

  • VPC Pneumatic

  • 8481804090

Working medium:
Air
Body material:
Plastic
Function:
Vacuum pumping
Availability:
Inquire Add to Basket

Product Specifications

■ Specification

Working medium Air
Max. operating pressure 0.6MPa
Standard supply pressure 0.45MPa
Operating temperature range 5 to 60℃
Applicable tubing O.D. SUP port: 6   VAC port: 6


inline vacuum ejector


■ Ejector Specification

Type Model Nozzle
diameter
(mm)		 Max. vacuum pressure*2
(kPa)		 Max. suction flow rate*2
(L/min(ANR))		 Air consumption*2
(L/min(ANR))
High vacuum type ZU05S 0.5 -84 7 14
ZU07S 0.7 -84 10 29
Large flow type ZU05L 0.5 -48 12 14
ZU07L 0.7 -48 16 29


*1 The values indicating characteristics are representative values, and may vary depending on the atmospheric pressure (weather, altitude, etc.).

*2 Supply pressure: 0.45 MPa


Main Dimensions

smc vacuum generator
