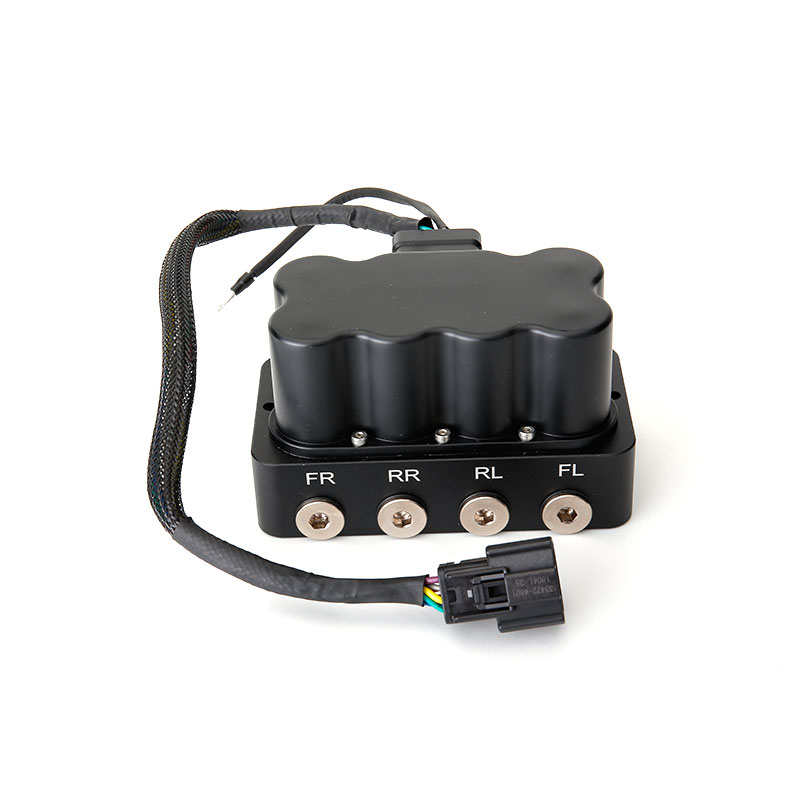

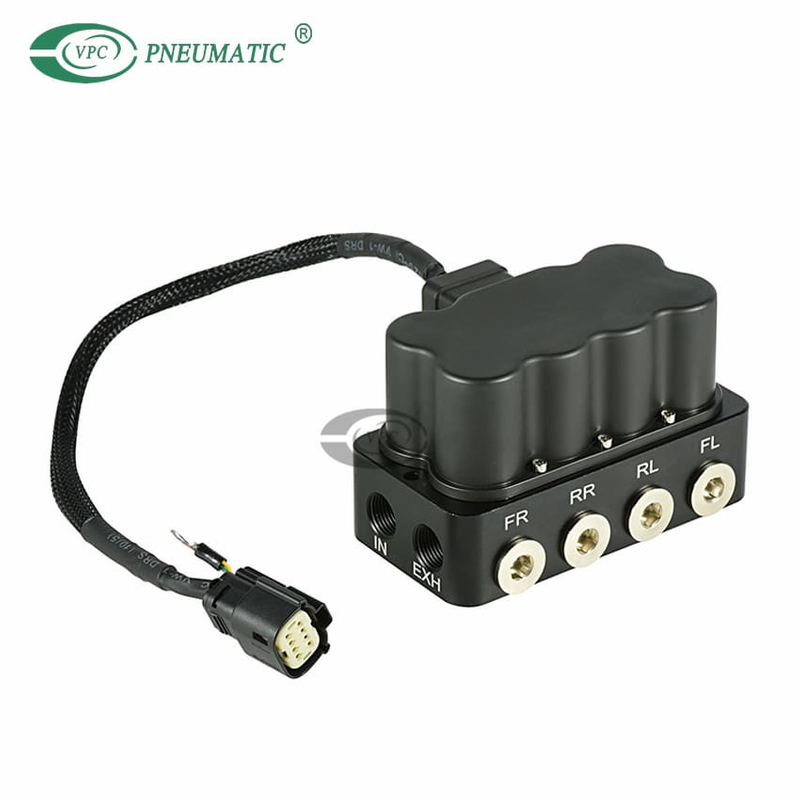

Product Description
| Compatiable Suspension Type | 4-Corner Full Air Suspension |
| Voltage Requirements | 12 Volt |
| Current Requirements | 1.1 Amps (for each of the (8) Valves) |
| Connectors | IP67 certified (immersion up to 3 ft) |
| Fitting Size | 3/8"NPT, 1/4"NPT, 3/8"PT, 1/4"PT |
| No.of Inlet Ports | 2 |
| No.of Exhaust Ports | 2 |
| Max. Operating Pressure | 200Psi |
| Cv Flow Factor | 0.33 |
| Average Adjustment Time | 2.2 Seconds (from 10% to 50% of travel) |
| Function | Waterproof, drop-resistant |
