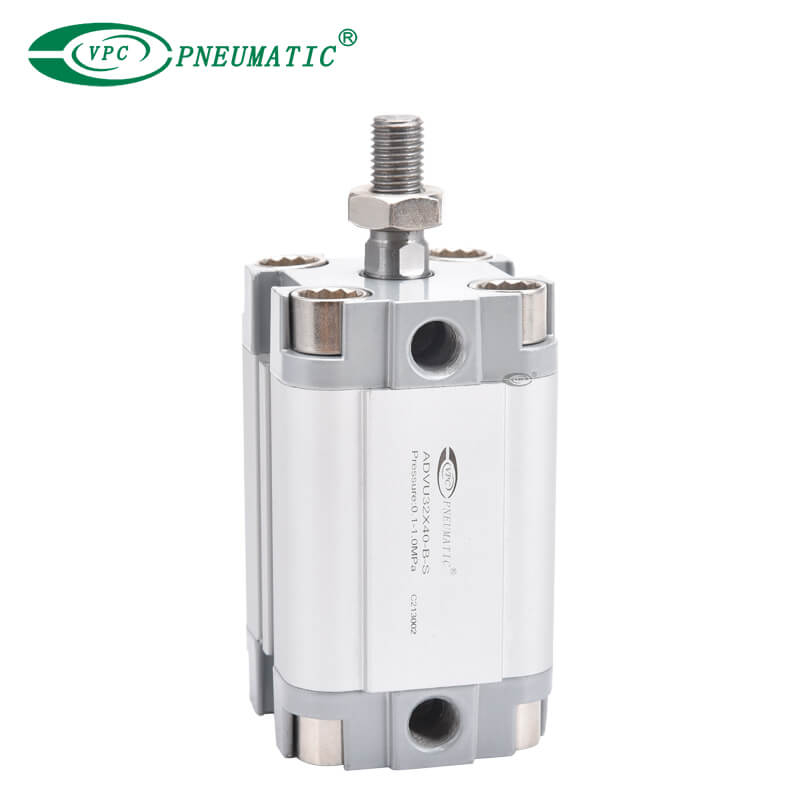

ADVU AEVU Series Compact Cylinder

Share to:
ADVU series piston rods are made of chrome-plated carbon steel. The structure is compact, which can effectively save installation space. Imported non-lubricated seals are used to achieve high-speed movement.
  • ADVU(AEVU)
  • VPC Pneumatic
  • 8412310090
Body material:
Bore:
Bore :
Quality warranty:
Availability:

Product Description

compact air cylinder

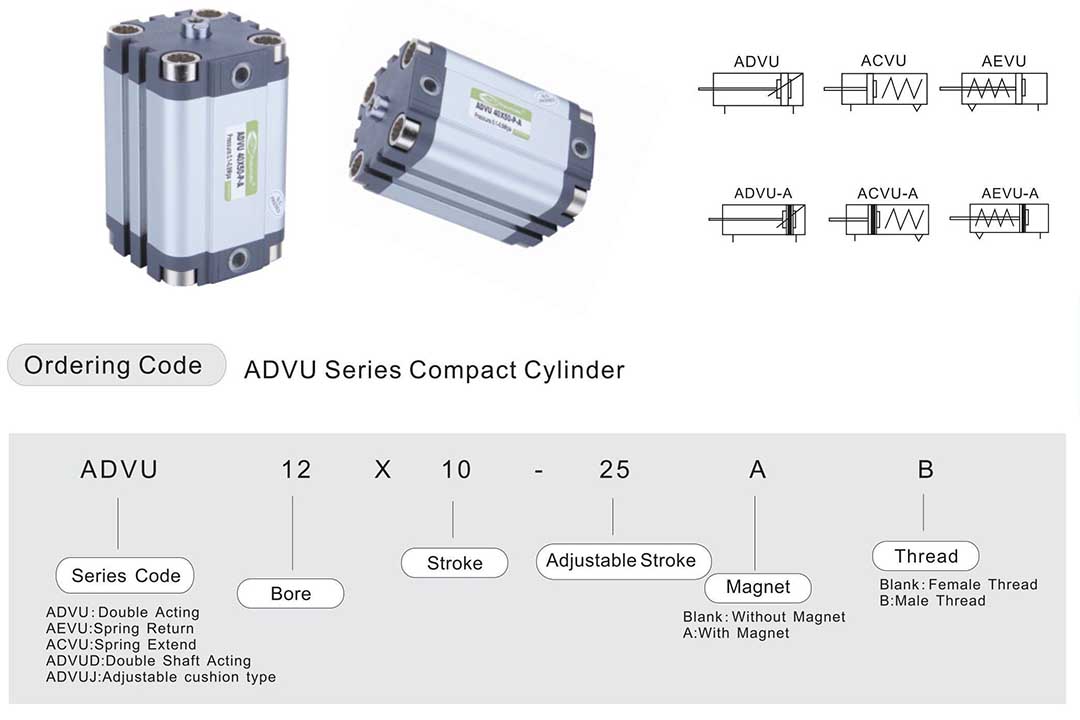

Product Specifications

Bore(mm)121620253240506380100
Working mediumClean air(40um Filteration)
Acting typeDouble acting Spring extend/Spring return

Pressure

Double acting0.1 to 1.0Mpa
Spring return0.2 to 1.0Mpa
Guaranteed pressure1.5Mpa
Speed rangeDouble acting:30-500mm/s; Spring return:50-500mm/s
Tolerance of stroke

0-150+1.0m >150+1.4m

            0                 0

Cushion typeRubber cushion
Port sizeM5X0.8
G1/8
G1/4

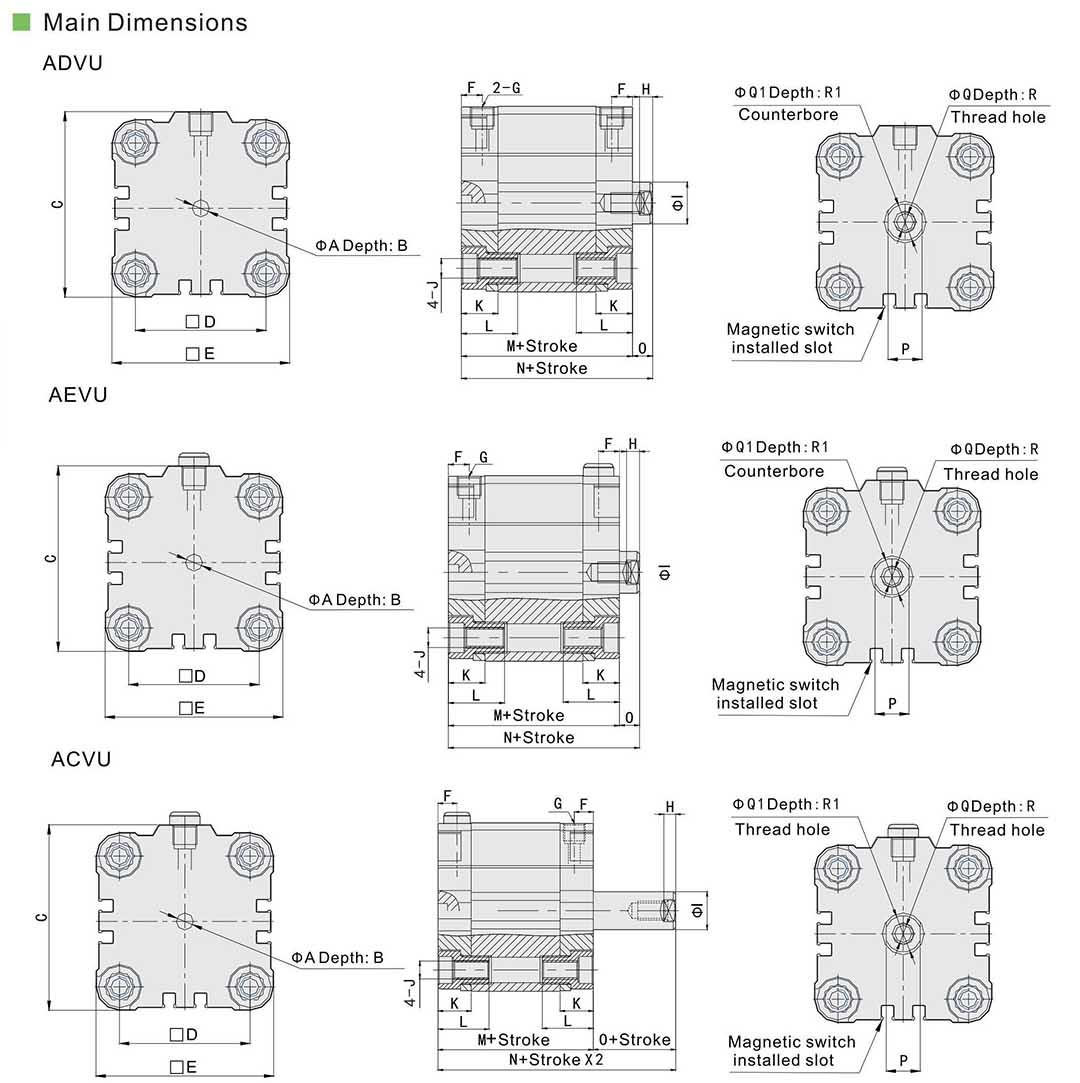

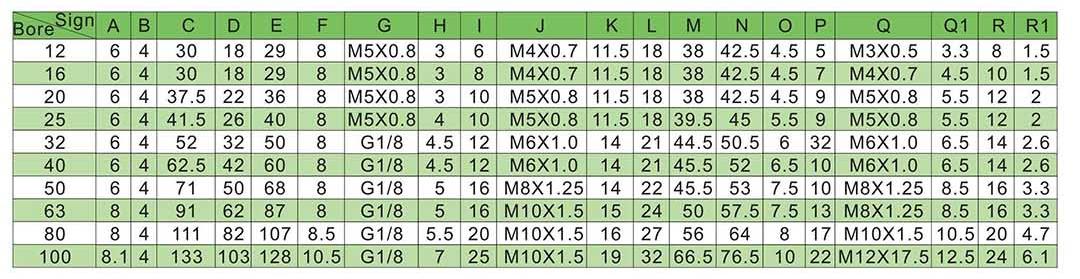

Main Dimensions

compact cylinder catalog
