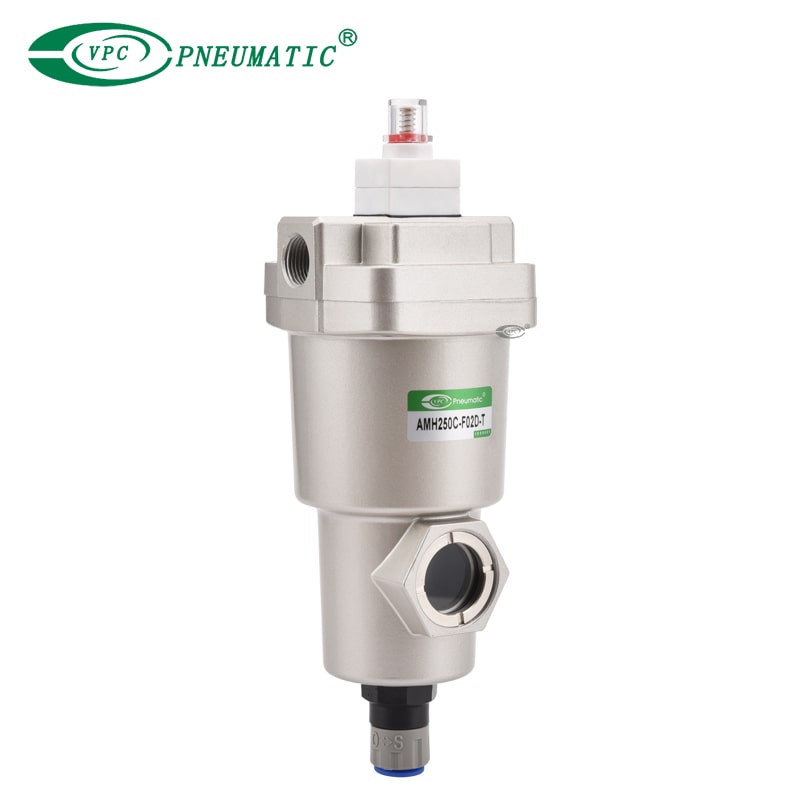

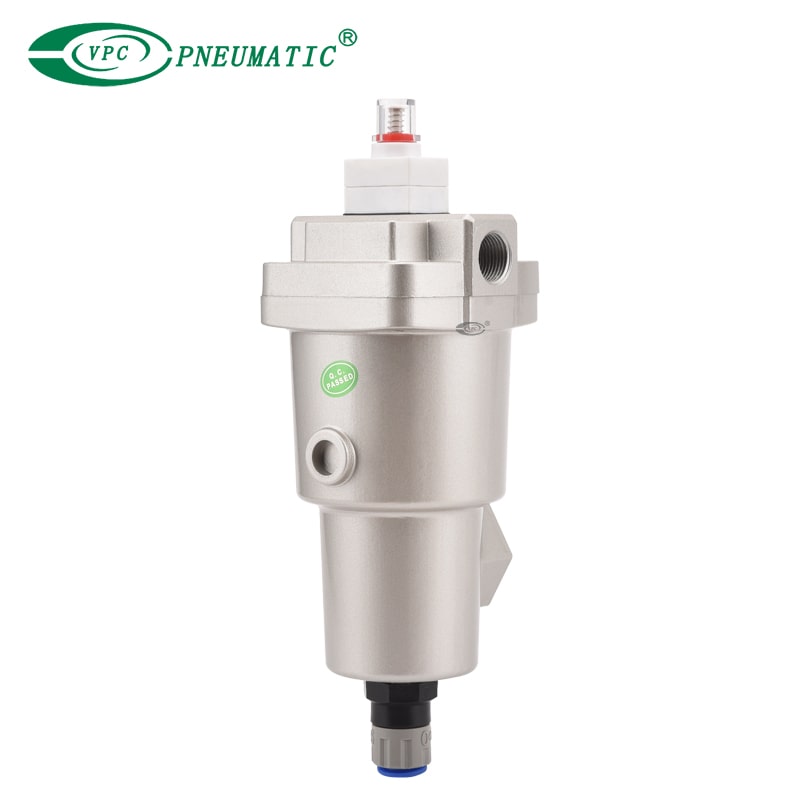

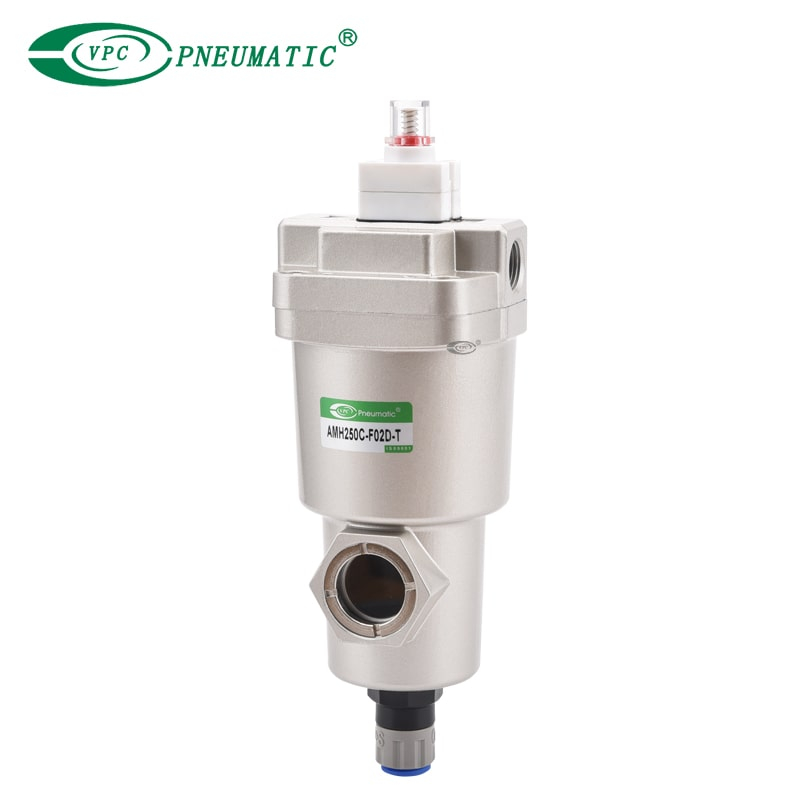

Product Description
1. Modular connection is possible with AMH150C to 550C/AMH650,850.
2. Options include: Fluororubber material, medium air pressure (1.6MPa), drain guide, IN-OUT reversal direction, differential pressure switches, element service indicator, and degreasing wash.
3. AMH Micro mist separator as a pre-filter for compressed air use for precision instruments or clean rooms requiring higher clean air.
*AMD Series micro mist separators are available for purchase, please contact VPC for details.
Product Specifications
| Working medium | Compressed air |
| Max. working pressure | 1.0MPa |
| Min. working pressure*1 | 0.05MPa |
| Proof pressure | 1.5MPa |
| Working temperature | 5 to 60℃ |
| Nominal filtration rating | 0.01 µm (Filtration efficiency: 99.9%) |
| Oil mist density at outlet | Max. 0.1 mg/m³(ANR)*2 (Before saturated with oil, less than 0.01 mg/m³ (ANR)≈0.8ppm) |
| Element replacement period | 2 years or when pressure drop reached 0.1MPa |
*1) With auto drain: 0.1 MPa (N.O. type) or 0.15 MPa (N.C. type)
*2) When the inlet oil mist density is 30 mg/m³ (ANR).
Can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 µm.
Use this product as a pre-filter for compressed air for precision instruments or clean room requiring higher clean air.
| Model | Specification | Accessory part No.(Option) | Spare parts | |||
| Manual operation | Auto drain | Flow rate | Port size | Weight | Bracket assembly | Element assembly |
| AMH150C-01-□ | AMH150C-01D-□ | 200L/min | 1/8 | 0.38kg | AM-BM101 | AM-EL150 |
| AMH150C-02-□ | AMH150C-02D-□ | 1/4 | ||||
| AMH250C-02-□ | AMH250C-02D-□ | 500L/min | 1/4 | 0.55kg | AM-BM102 | AM-EL250 |
| AMH250C-03-□ | AMH250C-03D-□ | 3/8 | ||||
| AMH350C-03-□ | AMH350C-03D-□ | 1000L/min | 3/8 | 0.9kg | AM-BM103 | AM-EL350 |
| AMH350C-04-□ | AMH350C-04D-□ | 1/2 | ||||
| AMH450C-04-□ | AMH450C-04D-□ | 2000L/min | 1/2 | 1.4kg | AM-BM104 | AM-EL450 |
| AMH450C-06-□ | AMH450C-06D-□ | 3/4 | ||||
| AMH550C-06-□ | AMH550C-06D-□ | 3700L/min | 3/4 | 2.1kg | AM-BM105 | AM-EL550 |
| AMH550C-10-□ | AMH550C-10D-□ | 1 | ||||
| AMH650-10-T | AMH650-10D-T | 6000L/min | 1 | 4.2kg | BM56 | AM-EL650 |
| AMH650-14-T | AMH650-14D-T | 1 1/2 | ||||
| AMH850-14-T | AMH850-14D-T | 12000L/min | 1 1/2 | 10.5kg | BM57 | AM-EL850 |
| AMH850-20-T | AMH850-20D-T | 2 | ||||

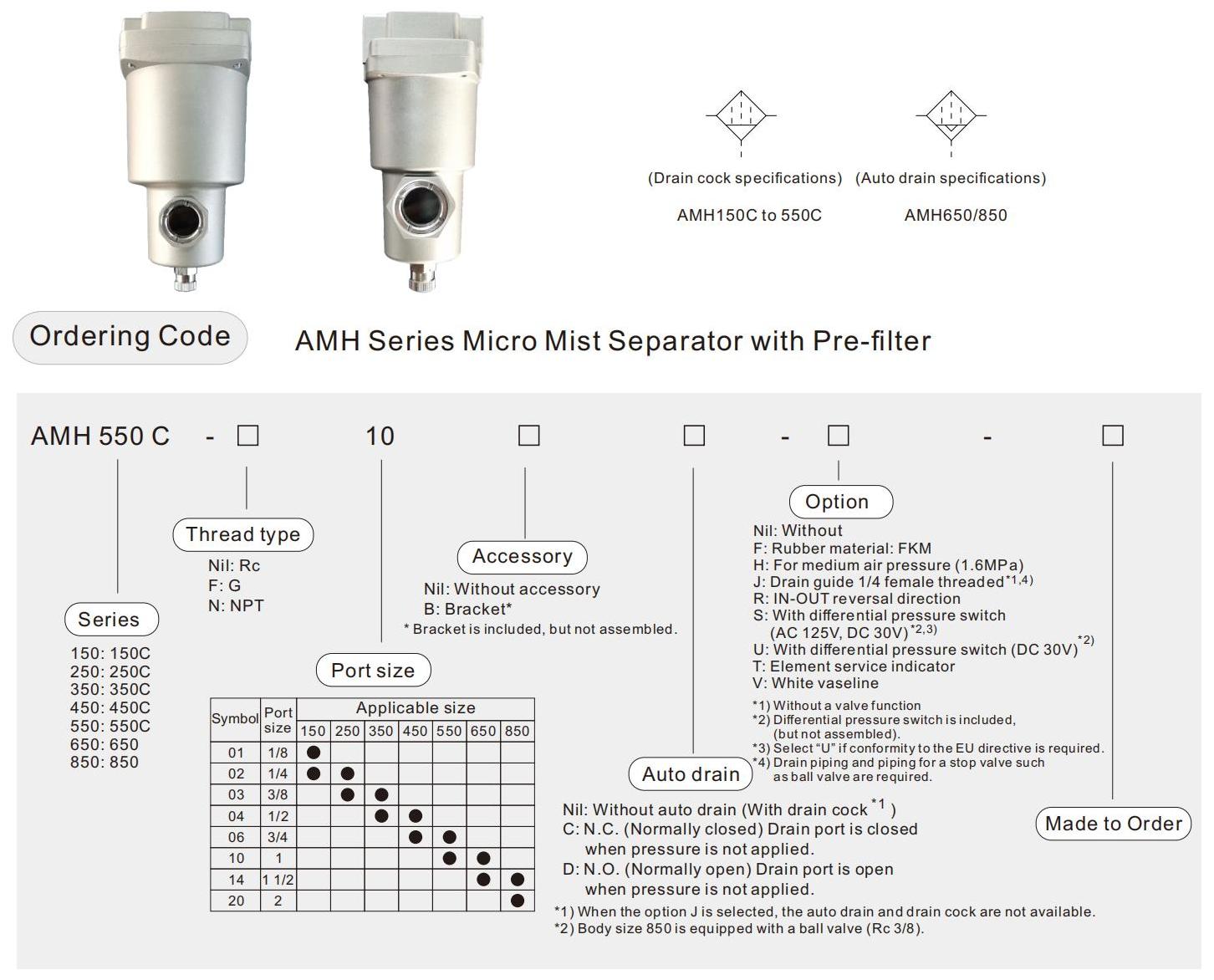

Order Example: Flow rate 1000L/min, G1/2 port size, auto drain type
Model: AMH350C-04D
