Product Description

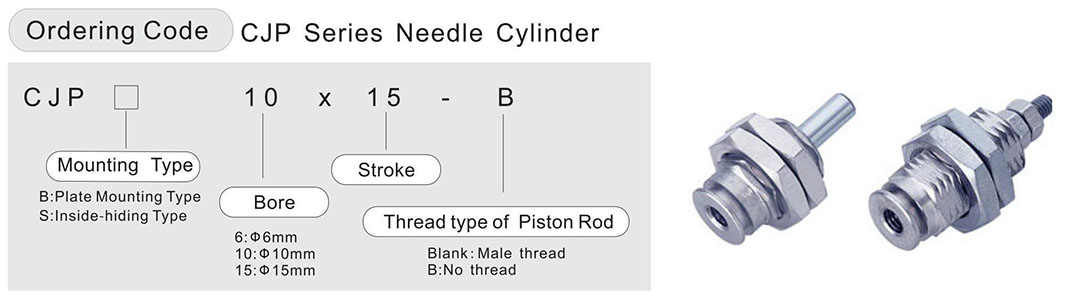

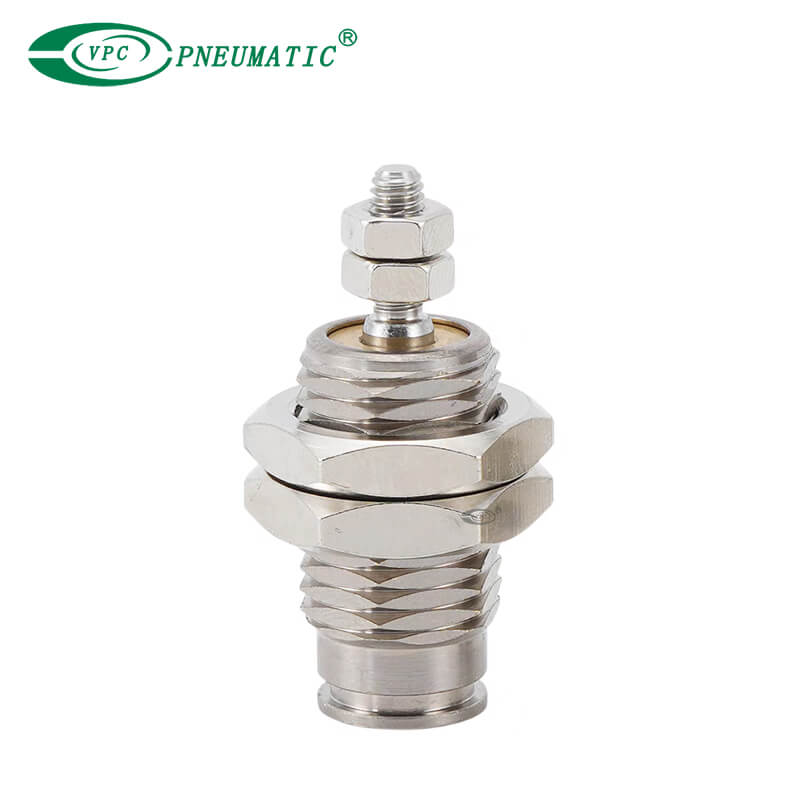

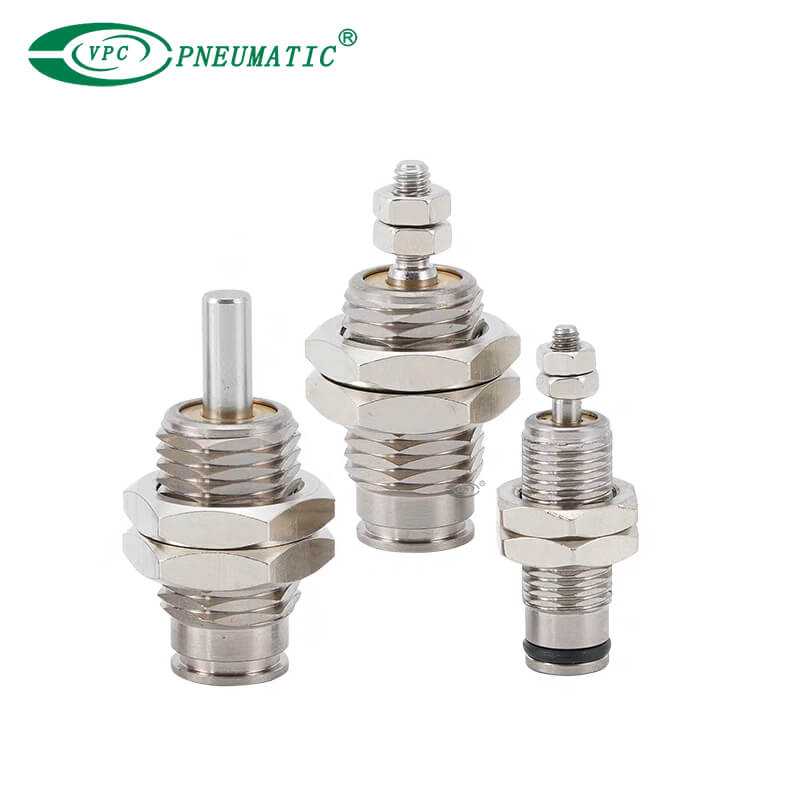

1. Compact Design: The CJP Series pin cylinder features a short-stroke design with a reduced overall length, allowing for installation space reduction. This enables direct recessing into machines or panel installation, making it especially advantageous in limited-space scenarios.
2. Bore Size Expansion: With the addition of a 16 mm bore size to the existing product range. The specifications and dimensions of the cylinder remain consistent with the existing 15 mm product.
3. One-Touch Fitting and Connection: The CJP Series pin cylinder supports easy panel mounting through a one-touch fitting, facilitating efficient installation and maintenance by enabling connection of ø2 one-touch fittings, miniature fittings, and speed controllers.
Product Specifications
| Bore(mm) | 6 | 10 | 15/16 |
| Working medium | Clean air (40um Filteration) | ||
| Acting type | Single acting spring return | ||
| Working pressure range | 0.2 to 0.7Mpa | 0.15 to 0.7Mpa | |
| Max. working pressure | 1.05Mpa | ||
| Working temperature | -10 to 70℃ | ||
| Lubrication | Not required (Non-lube) | ||
| Piston speed | 50 to 500 mm/s | ||
| Cushion | None | ||
| Rod end type | With thread/Without thread | ||
| Stroke tolerance | +1.0 0 | ||
| Port size | M5x0.8(Panel mounting type) | ||
| Mounting | Plate mounting type/Inside-hiding type | ||
※ If you need drawings or more detailed technical specifications of CJP pin cylinder, please contact VPC.
