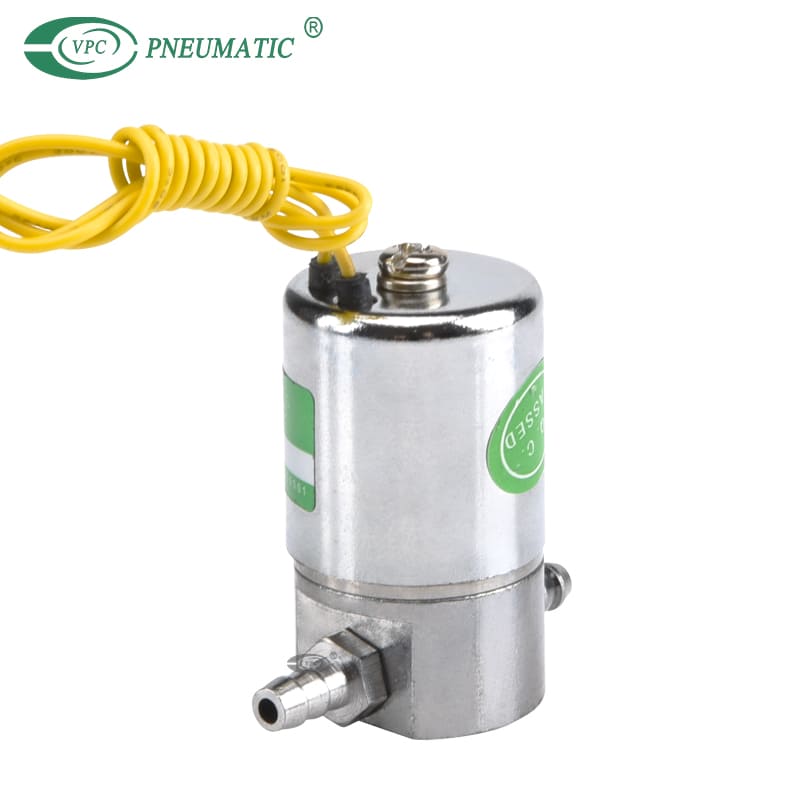

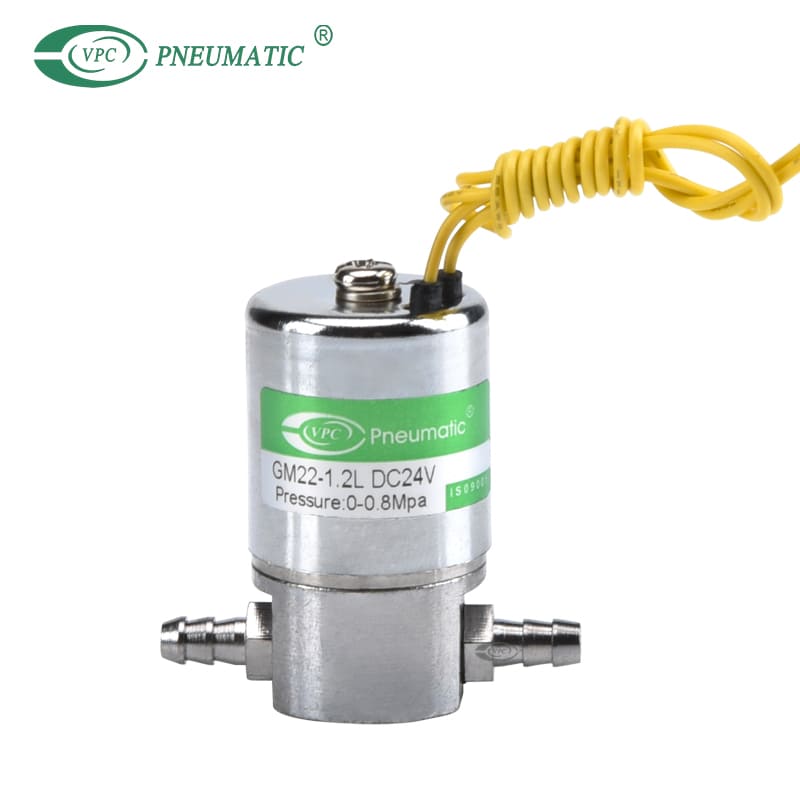

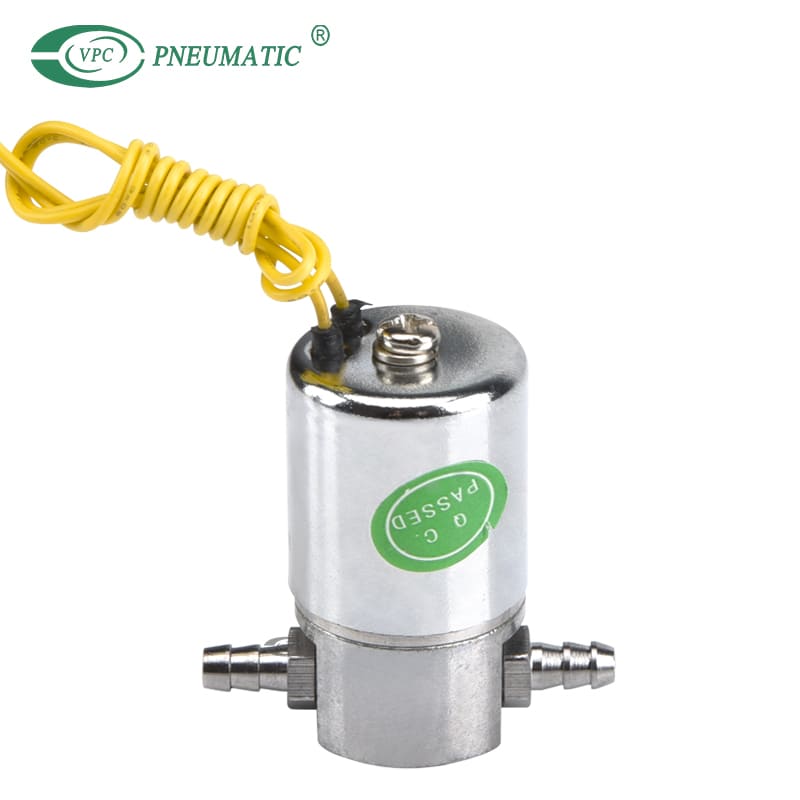

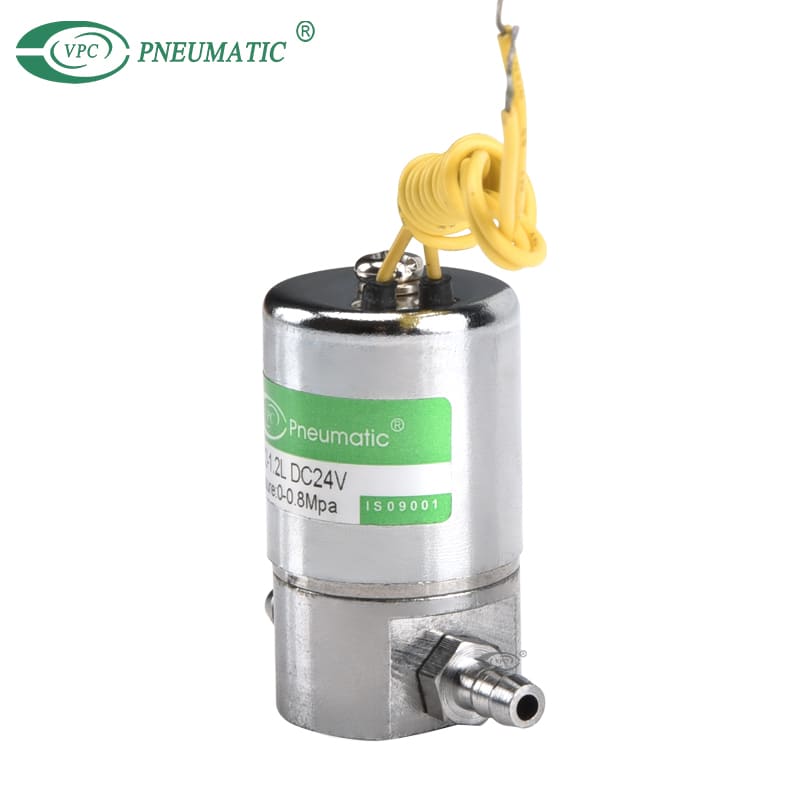

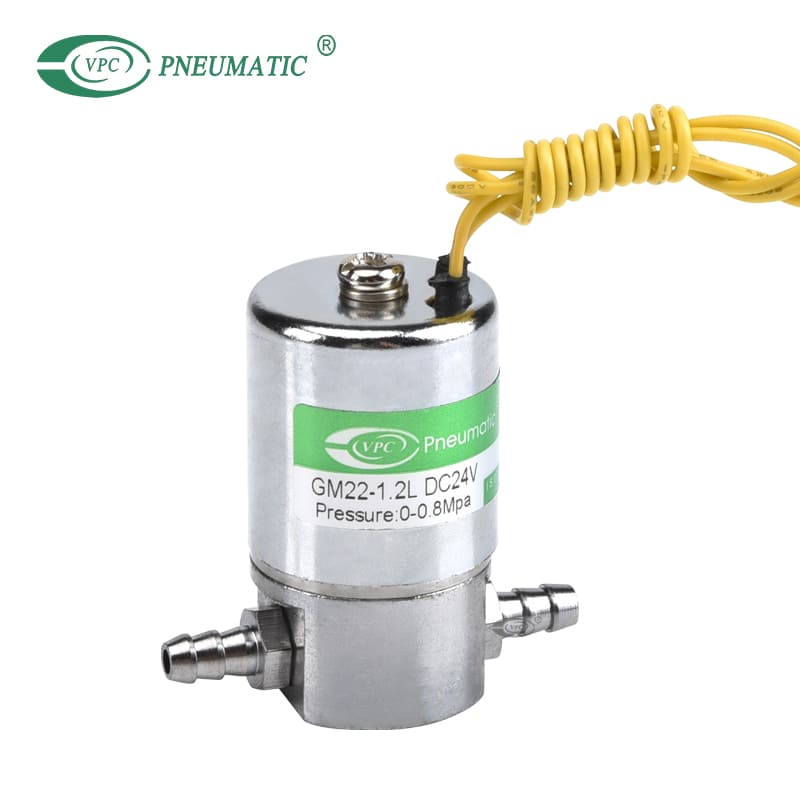

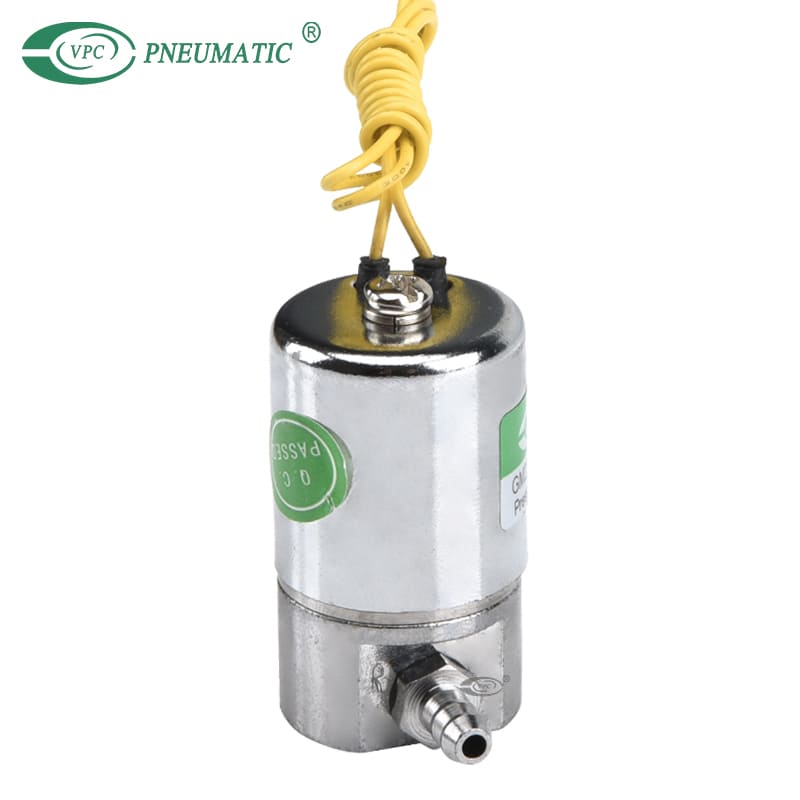

GM22 Miniature Solenoid Valve for Medical Devices

Model Number: GM22-1.2L Brand Name: VPC valve body material: brass color: silver tone seal material: NBR/VITON acting type: direct acting type/N.C. compact appearance quick action and long service life ideal for the dental, medical, laboratory and food sectors

Model:
GM22-1.2 24V DC
Brand:
VPC Pneumatic
Code:
8481802190

Material:	Stainless steel
Port size:	M3, M5
Availability:



Inquire Add to Basket

Product Description

Product Description

Model	GM22-1.2L	Q22XD-2L (3L, 4L, 5L)	Q23XD-2L (3L, 4L)
Acting type	Direct acting type (Normal close)	Normal close direct acting type (Normal close / Normal open)
Joint size	M5, M3	1/8", 1/4"
Orifice	1.2mm	2mm, 3mm, 4mm, 5mm
Working temperature	-5 to 80℃
Working pressure	0 to 0.8Mpa
Valve body	Brass, Stainless steel
Seal body	NBR	NBR / Viton
