High Frequency Solenoid Valves 2/2 Way Normal Closed (Max. 500 HZ), 5ms (200times/sec)

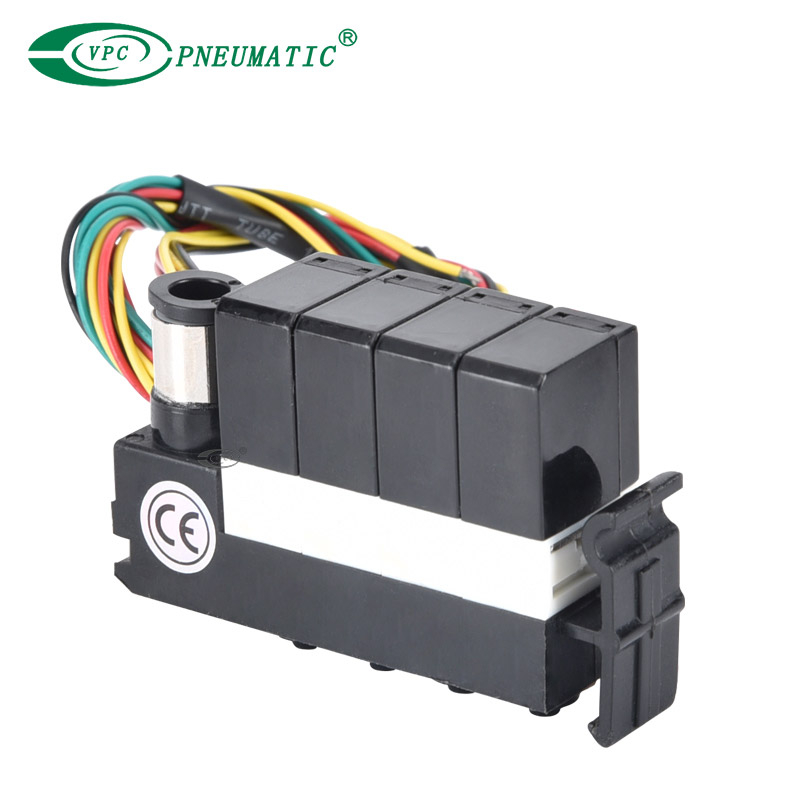

VPC New high-frequency solenoid valve, 2/2 way normally closed solenoid valve, working frequency can reach 500Hz, power 30w, response time 5ms (200time/sec). The solenoid valve can be used in high speed automated machines such as sorting machines and color sorters.

Model:
VSA
Brand:
VPC Pneumatic

Working pressure:	0 to 0.7Mpa
Max. Working frequency:	500Hz
Response time:	5ms (200times/sec)
Working temperature:	-5 to 80℃
Availability:



Inquire Add to Basket

Product Specifications

Product Specifications

Model	VSA
Working medium	clean air(40㎛ filteration)
Acting type	Direct acting
Control type	Normal closed
Working pressure	0 to 0.7MPa
Max. Working Pressure	1.0MPa
Working temperature	-5 to 80℃
Response time	5ms (200times/sec)
Power	30W
Max. Working frequency	500Hz
Orifice	1.5mm
Joint size	M5, G1/4
Lubrication	No
Heat resistant Grade	H
Protective class	IP65
Standard voltage	DC12V DC24V
Voltage range	±10%
Valve body	Plastic housing
Seal material	NBR
