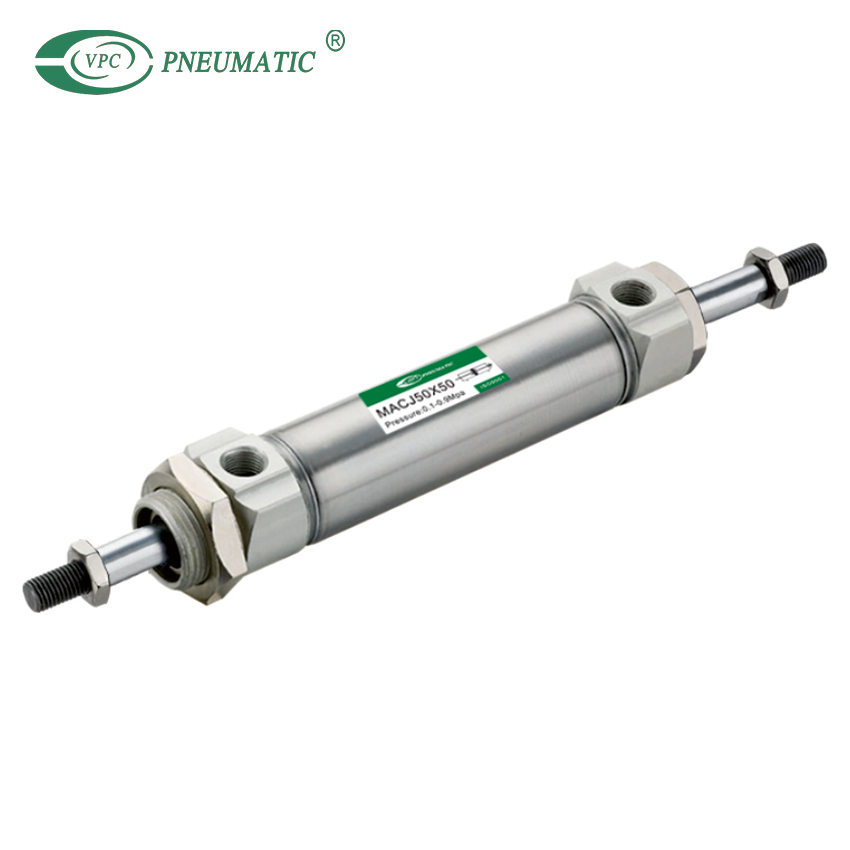

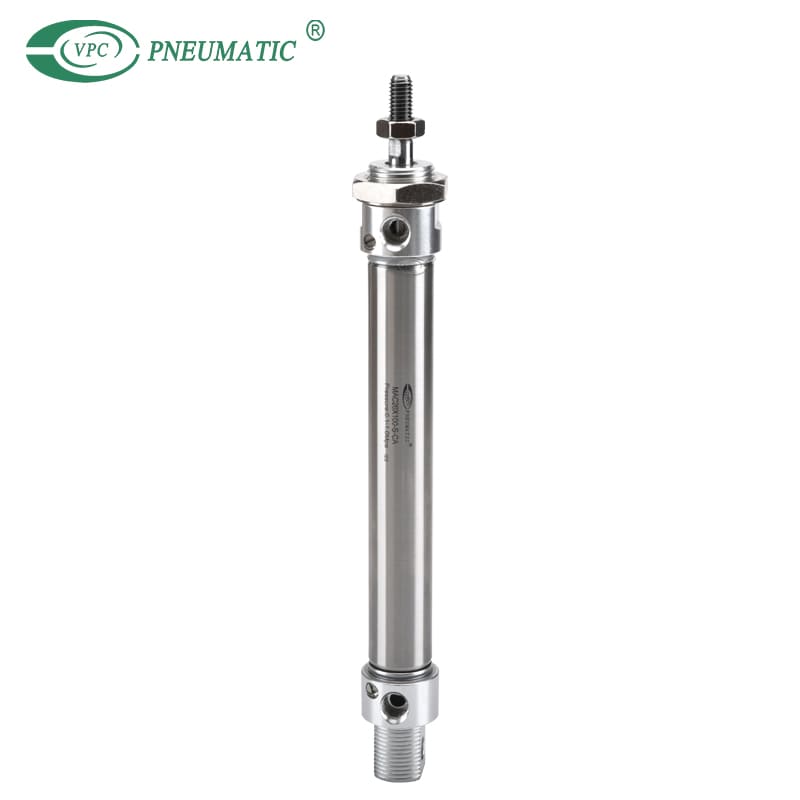

MA Series Stainless Steel Mini Cylinder, Flat-end Type, European Standards Big Bore

Share to:
  • Mini cylinder that has compact structure, small volume andlight weight;
  • The guide precision of piston rod is high and no additiona lubricant is needed;
  • Piston rod stainless steel barrel make the cylinder adapt general corrosive working environment;
  • There are cylinders and accessories with several specifications for installation for your choice;
  • It has small cylinder diameter and quick reaction, suitable for the working environment with higher frequency.

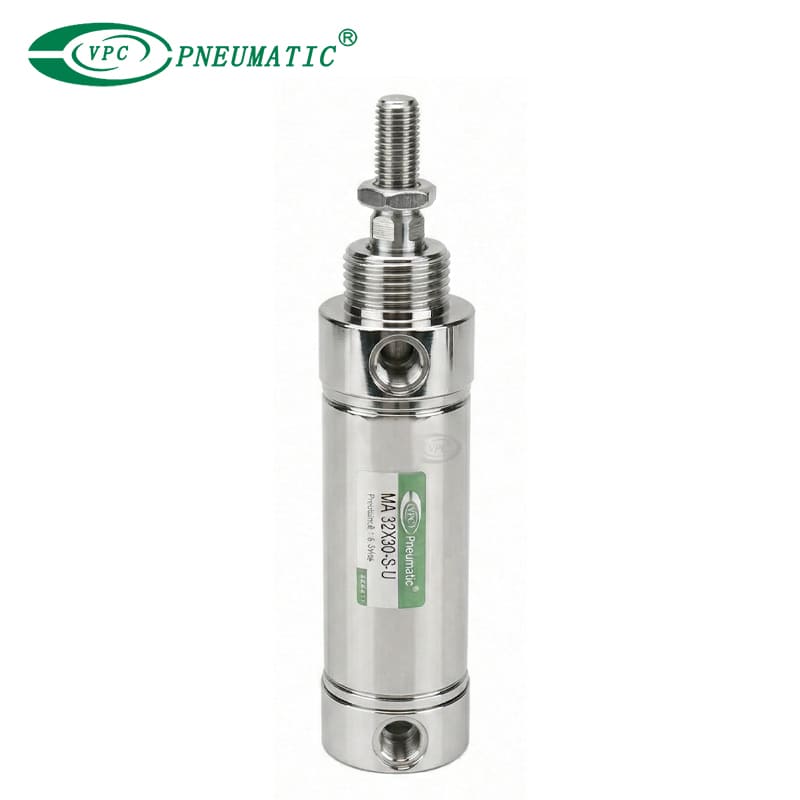

  • SMA 32x30-U
  • VPC Pneumatic
  • 8412310090
Acting type:
Working temperature:
Working pressure:
Guaranteed pressure:
Speed range:

Product Description

Product Feature

1. Piston adopts a heterogeneous two-way seal structure. It has compact size and has the function of grease reservation.

2. Front cover has a fixed bumper which can reduce the impact of direction change of the cylinder.

3. There are several modes of back cover, which makes the installation of cylinder more convenient.

4. Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.

5. The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.

6. There are cylinders and mounting accessories with several specifications for your choice.


MA round pneumatic cylinder symbol

MA round pneumatic cylinder order code

Product Specifications


Mountin type

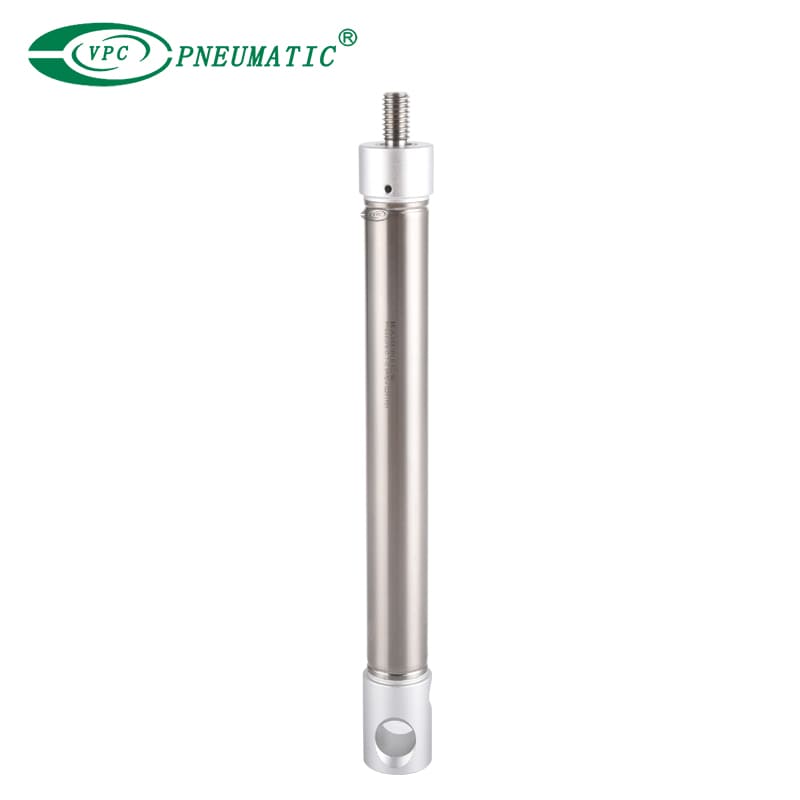

MSA  MTASingle acting-
MA  MAD  MAJ Double acting-
MAR-Double acting
MAC  MACD  MACJ-Double acting with cushion
Working mediumClean air (40um Filteration)
Working pressureDouble acting
0.1 to 1.0MPa
Single acting0.2 to 1.0MPa
Guaranteed pressure1.5Mpa
Working temperature-20 to 70℃
Speed rangeDouble acting: 30 to 500mm/s   Single acting: 50 to 500mm/s
Stroke tolerance

Stroke≤150+1.0   Stroke>150+1.4

                  0                           0

Cushion typeMAC  MACD  MACJ Series: Adjustable cushion   Other series: Bumper
Port sizeM5X0.8G1/8G1/4

Main Dimensions

Round pneumatic cylinder dimensions

MINI cylinder dimensions

 MA Series Mini Cylidner Brackets

round pneumatic cylinder mountingmini air cylinder mountinground air cylinder mountingY cylinder fittings dimensionsfloating fittings dimensions
