MAL Series Mini Cylinder

Share to:
  • The front and rear covers of the MAL Mini Air Cylinder body are treated by anodic hard oxidation, not only has corrosion resistance, but also the appearance is more compact and exqusite .
  • There is a permanent magnet on the cylinder piston, which can trigger the induction switch installed on the cylinder to sense the position of the MAL Mini Air Cylinder.
  • MAL
  • VPC Pneumatic
  • 8412310090
Working medium:
Stroke range:
Bore ranges:

Product Description

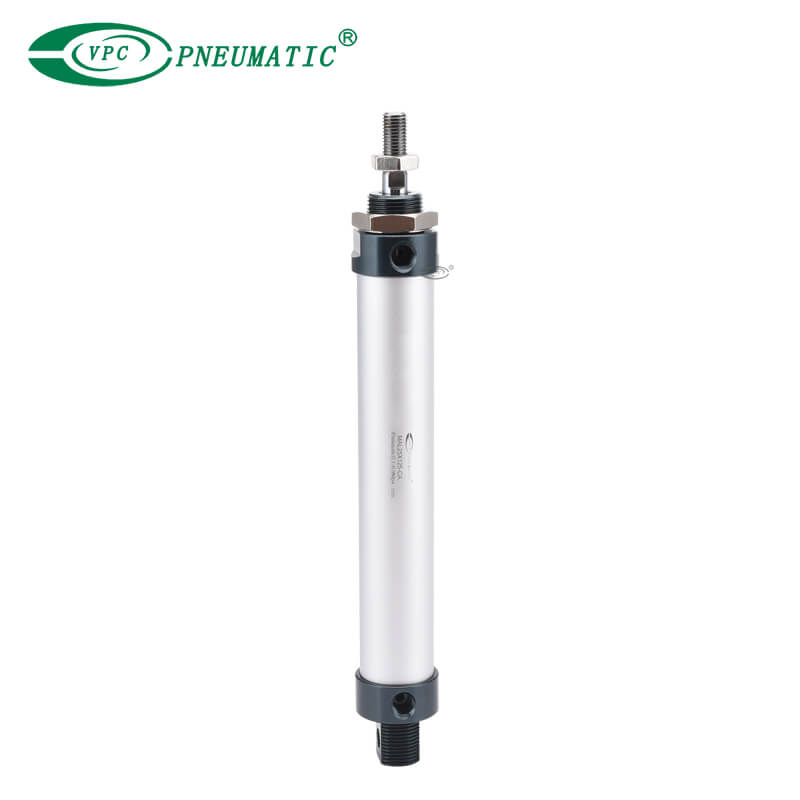

mini pneumatic cylinder diagram

Product Specifications

Bore (mm)1620253240
Acting typeMAL, MALD, MALJ Series: Double acting; MSAL, MATL Series: Single acting
Working mediumClean air(40μm Filteration)
Mounting type

 MAL, MSAL, MATL Series: Basic type LB FA SDB;

MALD, MALJ Series: Basic type LB FA

Working pressure rangeMAL, MALD, MALJ Series: 0.1~0.9Mpa; MSAL、MATL Series: 0.2~0.9Mpa
Guaranteed pressure1.5Mpa
Working temperature-5℃ to +70℃
Speed rangeMAL Series:30~800mm/s; Other Series:50~800mm/s
Port sizeM5X0.8G1/8G1/4

Main Dimensions

MAL参数small pneumatic cylinder diagram
