Product Description
● Light Weight
The density of aluminum alloy is about one-third that of steel, making cylinders lighter and easier to install and maintain.
● High Quality
The outer surface of the cylinder is anodized to improve cylinder wear resistance and corrosion resistance.
The inner surface is precision machined to reduce the friction resistance of the piston, which improves the cylinder's operating efficiency and extends the life of the seals.
Cylinder diameter and length can be customized according to customers' requirements. Production process: measurement while making + batch sampling inspection. Ensure cylinder cylinder size accuracy and processing precision.
● Applicable Models

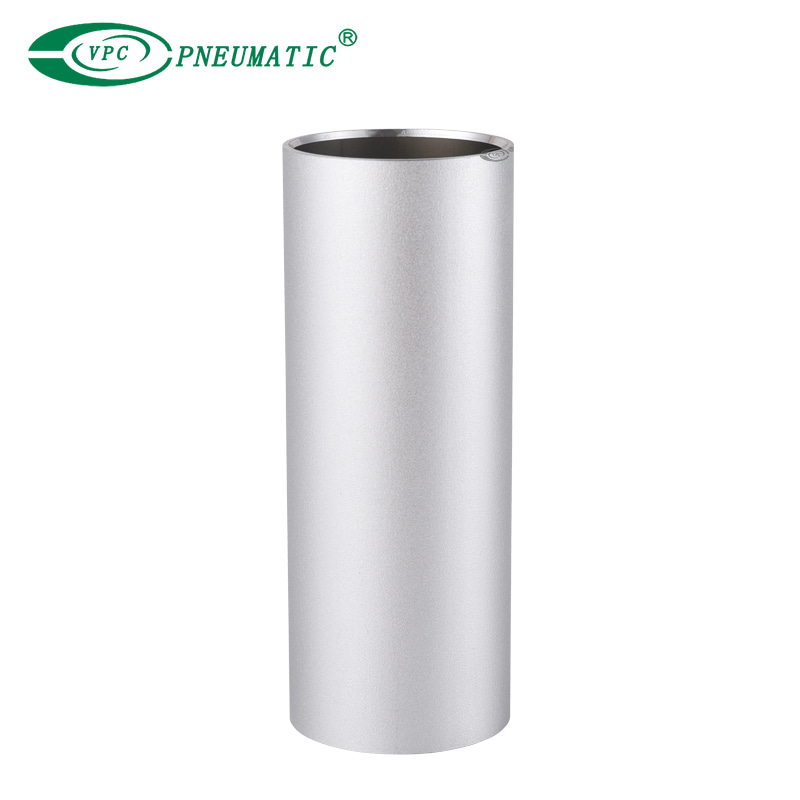

SC/SU/MB/MAL and other round cylinders.
Product Specifications

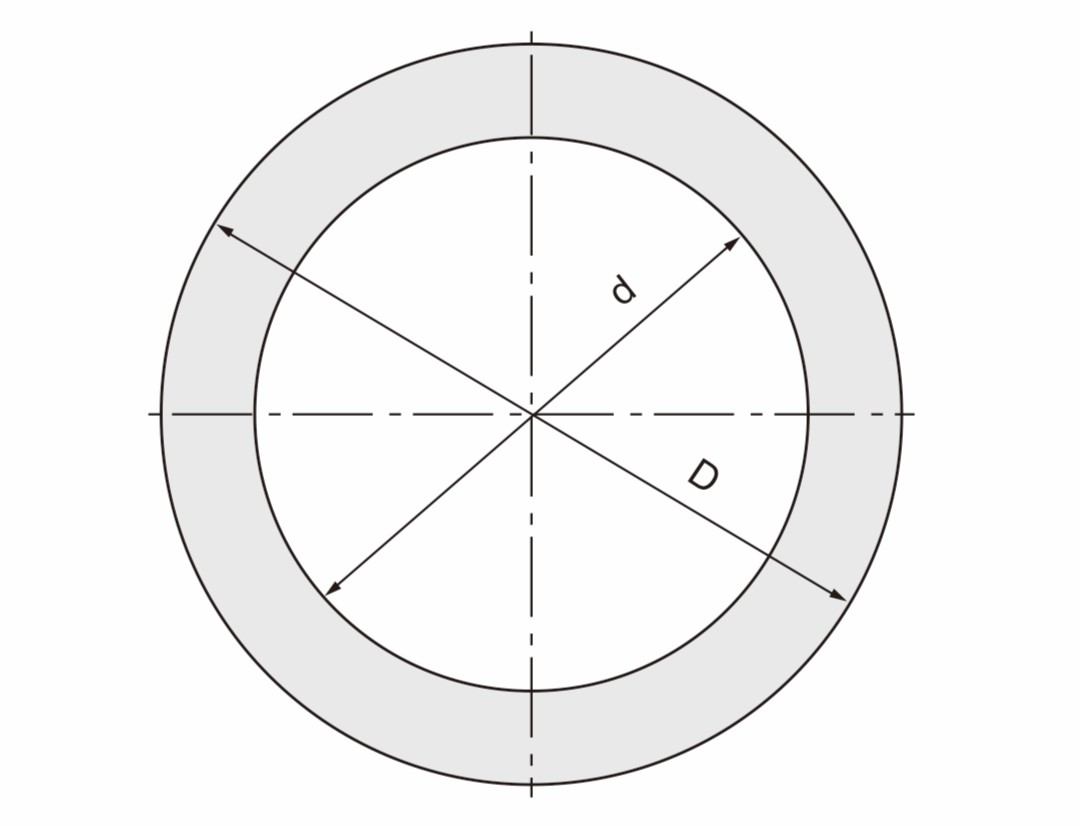

| Bore*1 (d) | Outer (D) | Thickness |
| Ф16 | Ф20 | 2 |
| Ф20 | Ф25 | 2.5 |
| Ф25 | Ф30 | 2.5 |
| Ф32 | Ф37 | 2.5 |
| Ф40 | Ф45 | 2.5 |
| Ф45 | Ф50 | 2.5 |
| Ф50 | Ф55 | 2.5 |
| Ф63 | Ф68 | 2.5 |
| Ф70 | Ф76 | 3 |
| Ф80 | Ф86 | 3 |
| Ф100 | Ф106 | 3 |
| Ф125 | Ф132 | 3.5 |
| Ф140 | Ф150 | 5 |
| Ф150 | Ф160 | 5 |
| Ф160 | Ф170 | 5 |
| Ф180 | Ф190 | 5 |
| Ф200 | Ф210 | 5 |
| Ф250 | Ф262 | 6 |
| Ф250 | Ф272 | 11 |
| Ф320 | Ф345 | 12.5 |
*1) Regular cylinder bore is Φ16~63, non-conventional cylinder bore MOQ30 strips (2m each).
*2) Cylinder bore and thickness can be customized according to your needs, customized MOQ50 strips (2m each).
*3) Other shapes cylinder barrel size please contact us to get it.
