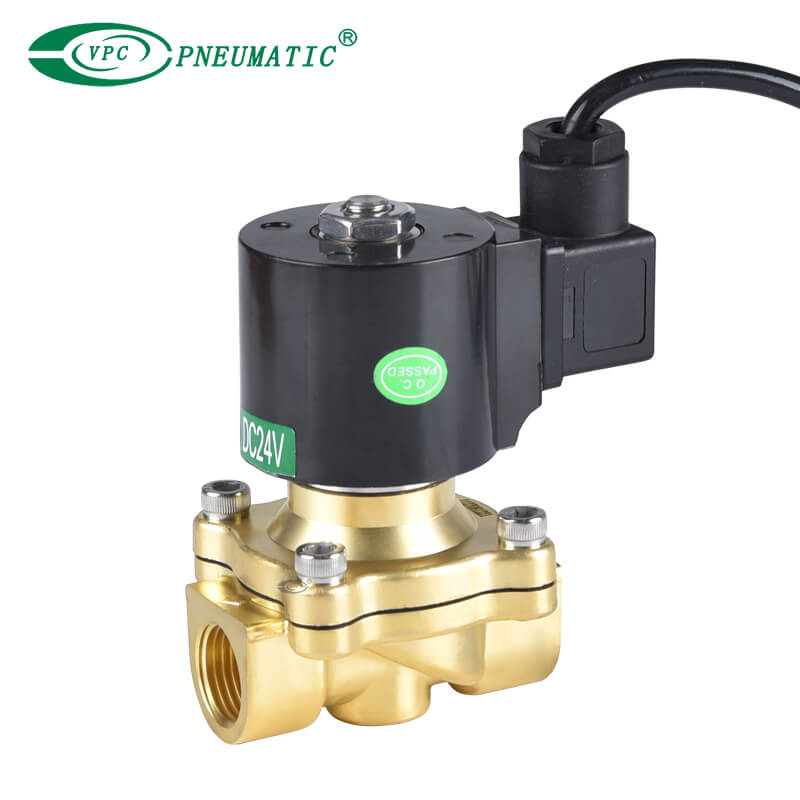

SLDF Series Waterproof Solenoid Valve for Water Fountain

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • SLDF series solenoid valve provides on-off control of fluid media on auto-control system.
    This series is designed for music fountain and dancing fountain.
  • SLDF series is direct acting solenoid valve which utilize pressure differential to open the valve.
    They feature diaphragm construction, and together with rapid on-off, stable capability, easy use, and long-life.
    This valve has strong dirty-tight, can be used long time in river, lake, sea, and kinds of under water areas.

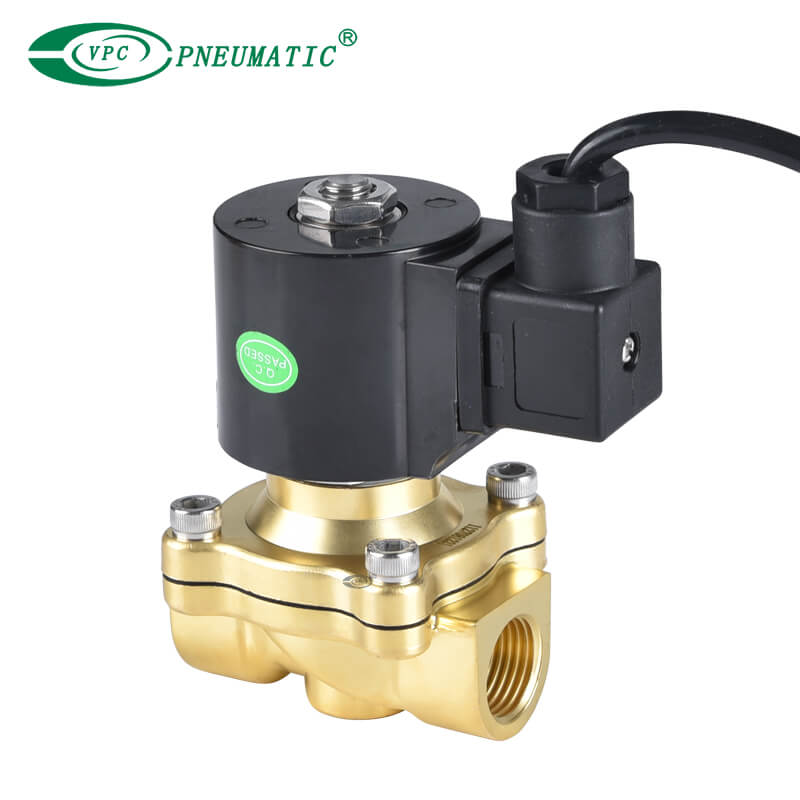

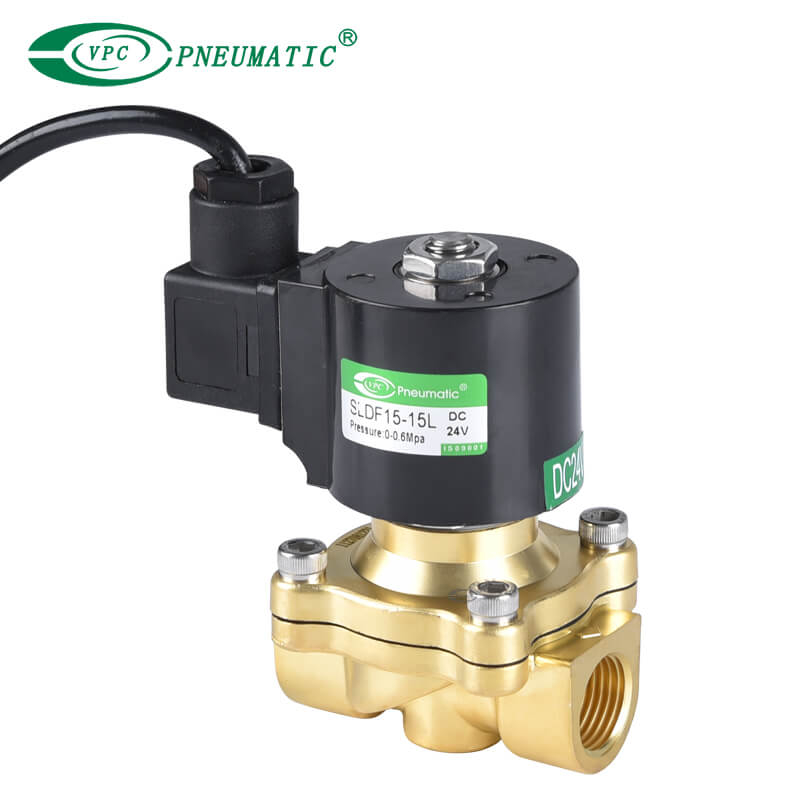

  • SLDF15-15L

  • VPC Pneumatic

Working medium:
Water, Air
Type:
Normal close
Working temperature:
0 to 60℃
Working pressure:
≤Ф50 0 to 0.6Mpa
≥Ф65 0.06 to 0.5Mpa
Body Material:
Brass
SS304&SS316
Acting type:
Direct acting
Availability:
Inquire Add to Basket

Product Description

waterproof solenoid valve


Product Specifications

Model
SLDF-15
SLDF-20
SLDF-25
SLDF-35
SLDF-40
SLDF-50
SLDF-S-15
SLDF-S-20
SLDF-S-25
SLDF-S-35
SLDF-S-40
SLDF-S-50
Working Medium
Water
Working Pressure
≤Φ50 0~0.6Mpa;≥Φ65 0.06~0.5Mpa
Working Temperature
0℃~60℃
Ambient Temperature
-10~50℃
Power
220V 50Hz Power:AC 25W
Voltage Range
±10%
Insulation Class
B Class
Service Life
20 Million Times
Joint Size
G1/2"
G3/4"
G1"
G1-1/4"
G1-1/2"
G2"

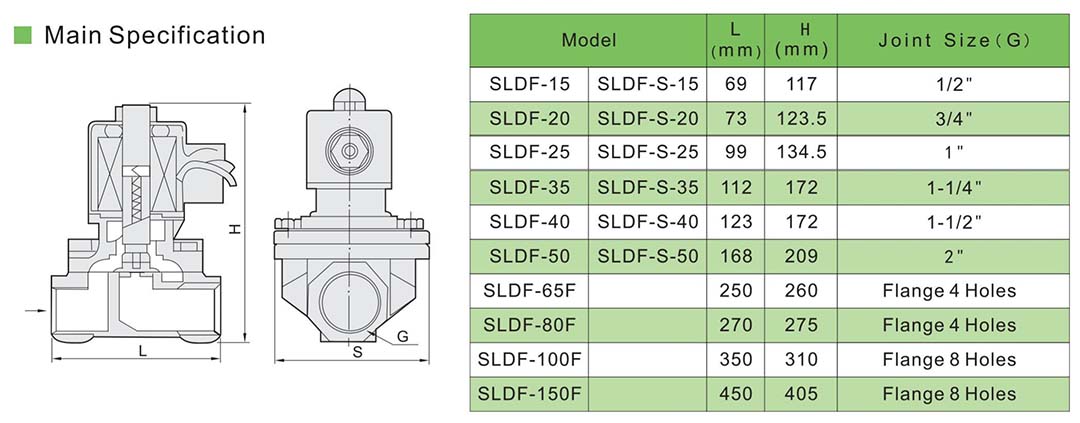

Main Dimensions

normally closed solenoid valve
