·Suitable for all those applications where brass nickel-plated and acetal fittings are banned, the new AISI 316L fitting is conceived to withstand corrosive environments (substances), to channel aggressive fluids and to be used in the food and chemical industries.
·Stainless Steel fittings line is standard equipped with FPM seals that will assure endurance at the highest temperatures.

  • SSPM08

  • VPC Pneumatic

  • 39174000

Applicable tube:
PA,PE,PU,FEP,PFA
Thread:
M, R, Rc, UNF, NPT or G
Material:
Stainless steel
Availability:
Inquire Add to Basket

Product Description

■Description

Applicable fluid typeAir, Water(No Drinking Water),Vacuum
Working pressure range-14 to 150 PSI-0.99 to 10Bar
Working temperature range5 ℉ to 428℉-15℃ to 220℃
Vacuum rating0 to 750mmHg
Recommanded tubingsPA11, PA12, PA6, PE, PU,PTFE,FEP
ApplicationsPneumatics, Food Industry, Chemical, Medical and Pharmaceutical Industry


Product Specifications

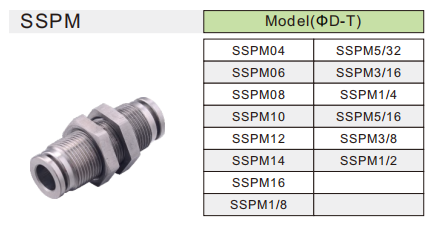

SSPM stainless steel fitting

PDF Download

download Stainless Steel Fitting.pdf
