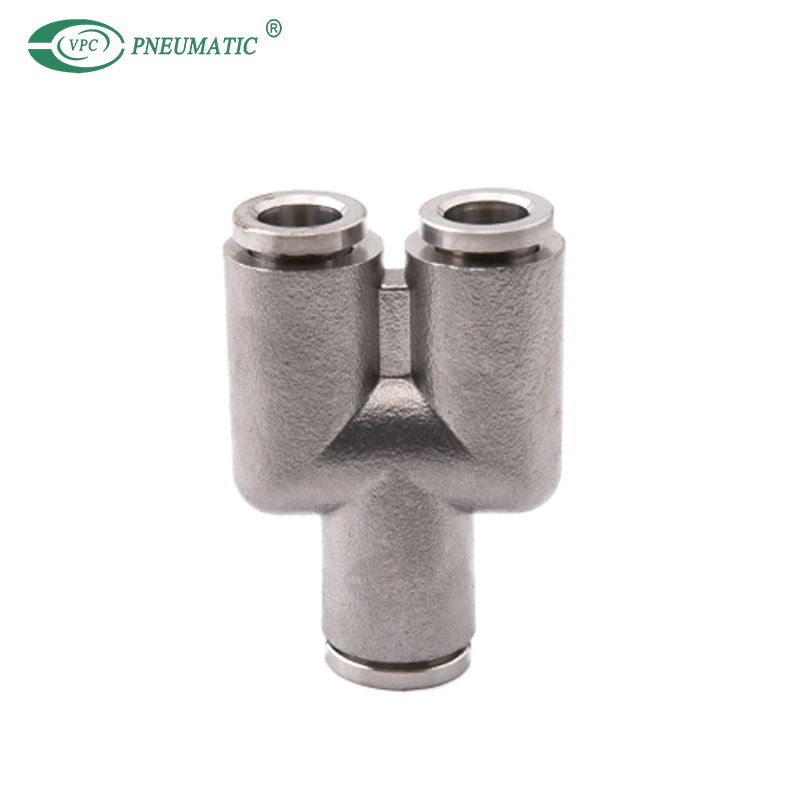

SSPY Stainless Steel Y Type Fitting

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
·Suitable for all those applications where brass nickel-plated and acetal fittings are banned, the new AISI 316L fitting is conceived to withstand corrosive environments (substances), to channel aggressive fluids and to be used in the food and chemical industries.

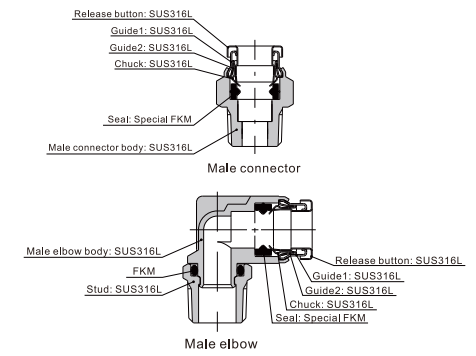

·Stainless Steel fittings line is standard equipped with FPM seals that will assure endurance at the highest temperatures.

  • SSPY08

  • VPC Pneumatic

  • 39174000

Applicable tube:
PA,PE,PU,FEP,PFA
Material:
Stainless steel
Availability:
Inquire Add to Basket

Product Description

■Description

Applicable fluid typeAir, Water(No Drinking Water),Vacuum
Working pressure range-14 to 150 PSI-0.99 to 10Bar
Working temperature range5 ℉ to 428℉-15℃ to 220℃
Vacuum rating0 to 750mmHg
Recommanded tubingsPA11, PA12, PA6, PE, PU,PTFE,FEP
ApplicationsPneumatics, Food Industry, Chemical, Medical and Pharmaceutical Industry

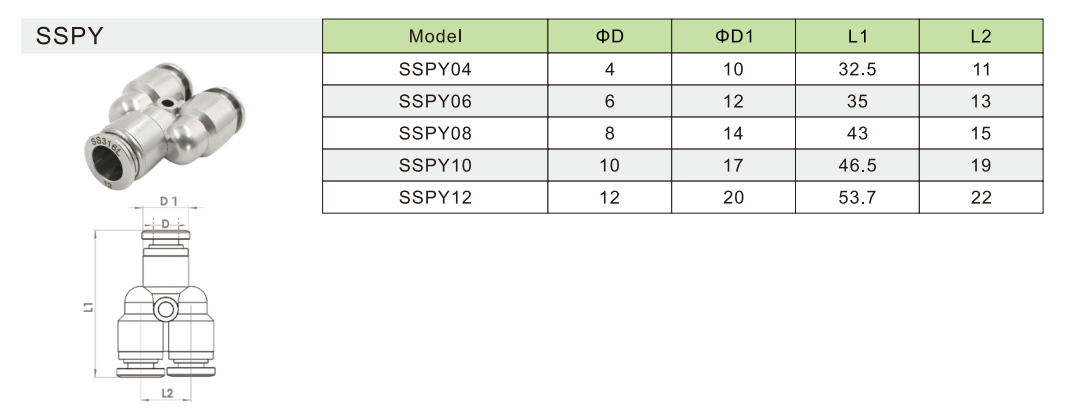

Product Specifications

SSPY Stainless steel fitting

PDF Download

download Stainless Steel Fitting.pdf
