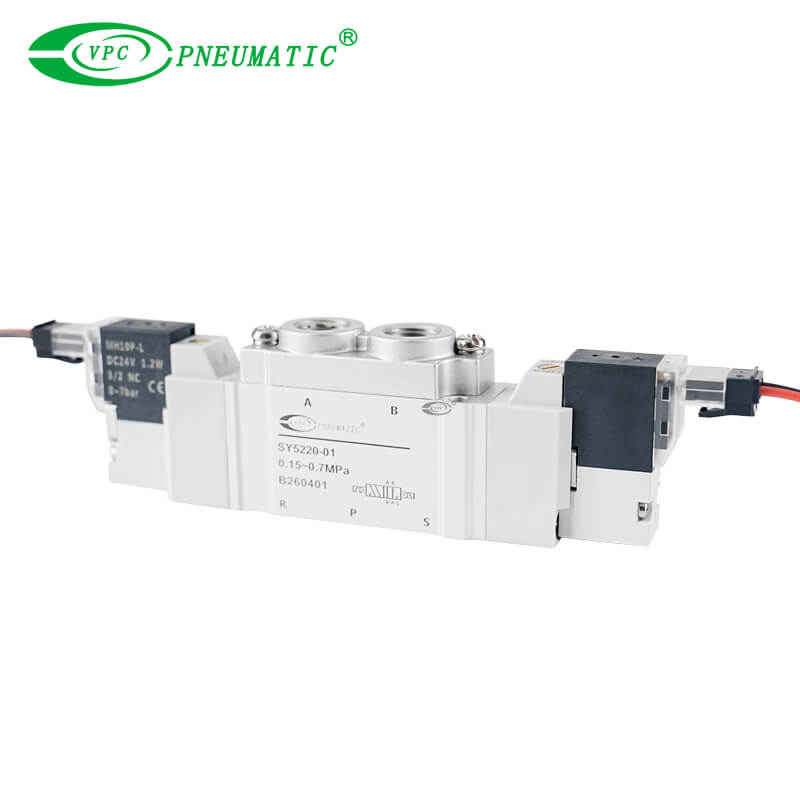

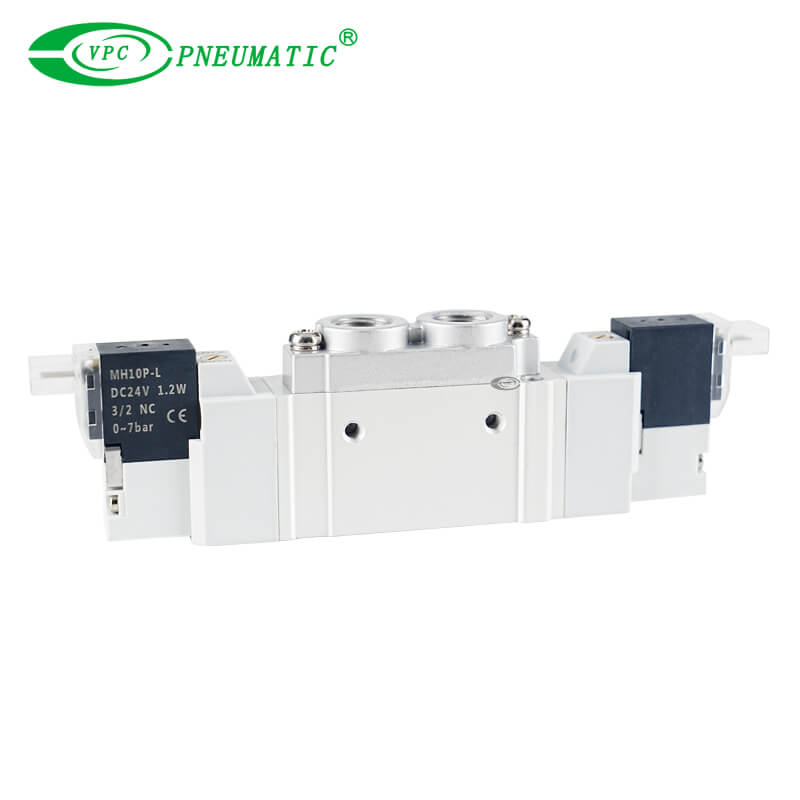

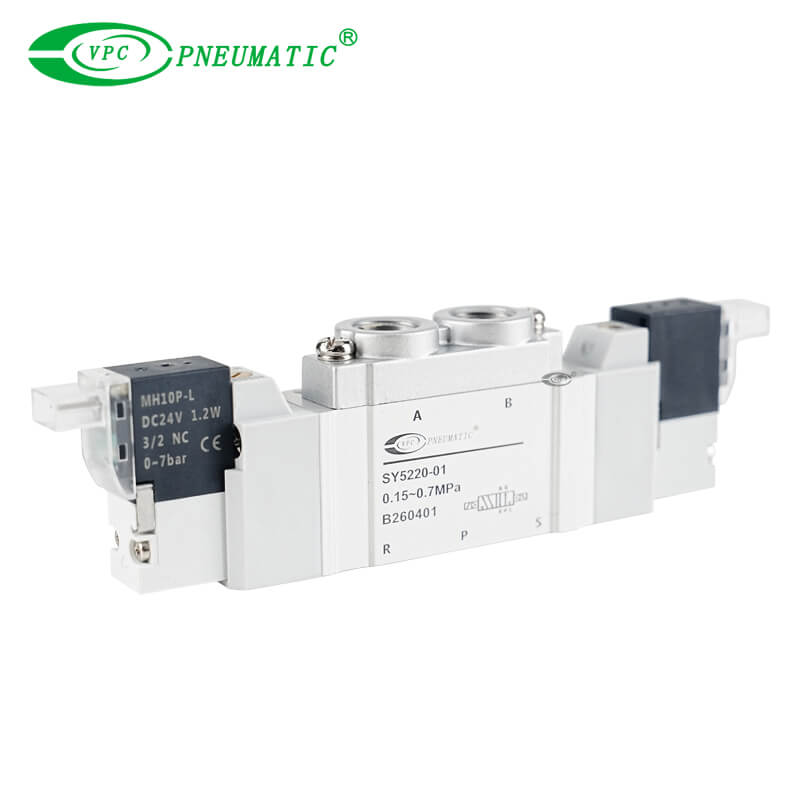

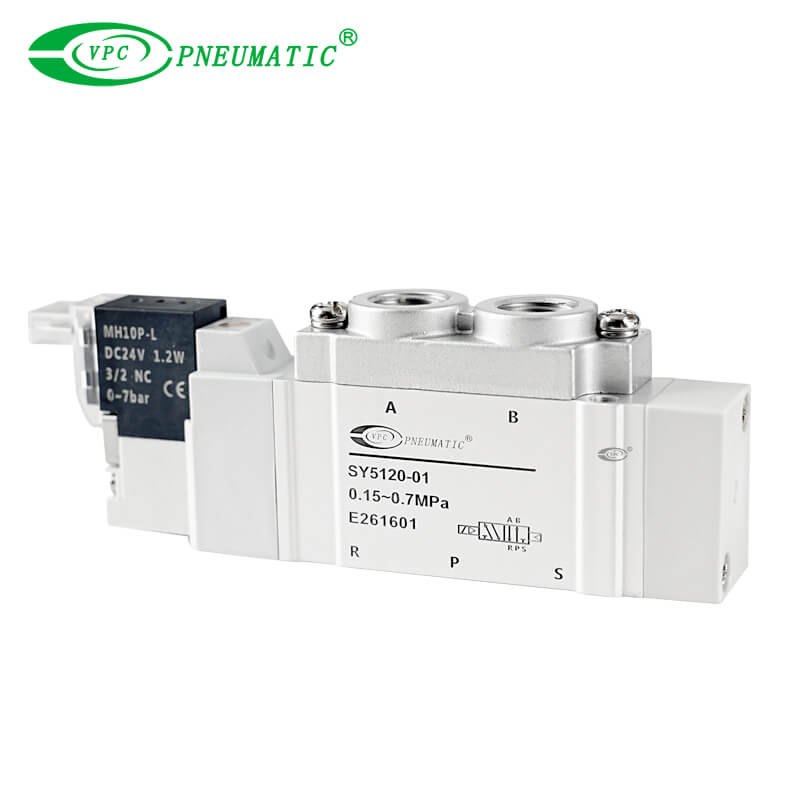

SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type
SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type
SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type
SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type
SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type
SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type

loading

SY5000 Series 5 Port Single Solenoid Valve Built-in Cannula Type

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Series SY solenoid valve built-in cannula type, easier installation and lower cost. The series offers high flow with low power consumption in a compact design. The SY is available in body ported, or base mounted styles and can be used individually or manifold mounted.

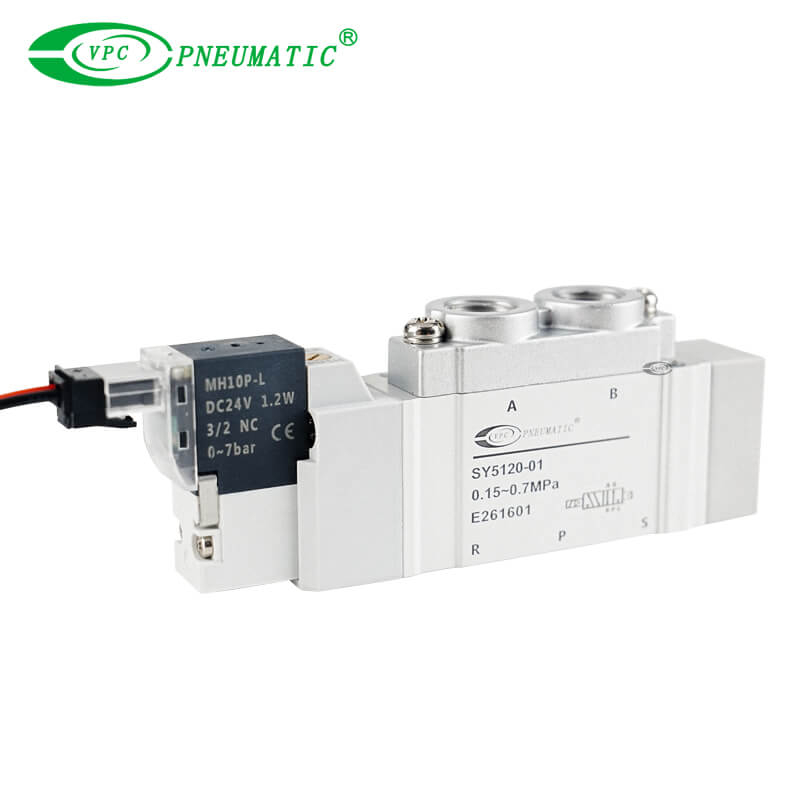

  • SY5120

  • VPC Pneumatic

Valve type:
Mounting orientation:
Driving type:
Seal type:
Plumbing:
Standard voltage:
Availability:

Product Description

■ Product Feature

1. Series SY high-precision pilot head 5s/time, high sensitivity, no stuck;

2. Built-in protection circuit against surge,directly connected to PLC without additional intermediate relay;

3. No spring air reset structure design, fast response speed,no fatigue, long life;

4. Single, Double coils are optional , can be arbitrarily matched;

5. Multiple valve bases integrated.



■ Symbol

SY solenoid valve symbol

Product Specifications

ModelSY3120SY3320SY5120SY5320SY7120SY7320
SY3220SY3420SY5220SY5420SY7220SY7420
SY3520SY5520SY7520
Working mediumClean air(40μm Filteration)
Working pressure0.15~0.7MPa0.2~0.7MPa0.15~0.7MPa0.2~0.7MPa0.15~0.7MPa0.2~0.7MPa
Working temperature-20~70℃(No condensation)
Max.operating frequency10Hz3Hz5Hz3Hz5Hz3Hz
Response time12ms15ms19ms35ms30ms50ms
Exhaust wayMain valve+pilot valve centralized exhaust
LubricationNot necessary
Acting typePiolet type
Proof pressure0.8MPa
Valve body materialUnlimited
Manual pin structurePress-down rotary locking type
Standard voltageDC24V±10%
Power1.2W/0.35W
Heat resistance classF class
Electrical connectionsPlug-in type(horizontal and vertical direction)+lead wire type
Pilot valve wire length0.3m
Protective ClassIP40
Joint SizeM51/8"1/4"


Main Dimensions

■ Main Dimension

SY 5000 5 3 way solenoid valve

SY 5120 5 3 way solenoid valve


Product FAQ

Q1. What is a 5/2 directional control valve?

 A 5/2 directional valve has five channels and two switch positions. It is particularly suitable for controlling double-action cylinders. The graphic below shows the schematic symbol for such a valve operated on one side by means of an electromagnet with a spring operated return.


Q2. How does a 5 port solenoid valve work?

5/2 way is a five port, two position valve that will put a fluid or air into one end of a double acting device as well as allowing the other end vent to exhaust. Zero Differential are solenoid valves that can operate under zero head pressure (do not need a differential pressure drop across the valve to work).


Q3. What does the numbers in 5/2 valve mean?

The 5/2-way pneumatic valve has five connection ports and two states. It has one pressure port (P,1), two ports (A,2) and (B,4) that connect to the device that needs to be controlled, and two exhaust ports (EA,3) and (EB,5).


Q4. What is the difference between 3/2 way and 5/2 solenoid valve?

The first one has 2 positions with 1 inlet, 1 outlet and 1 exhaust, and the second one has 2 positions with 2 outlet, 2 exhaust and 1 inlet. Push buttons and check valves are the main uses of 5/2.
