Product Description

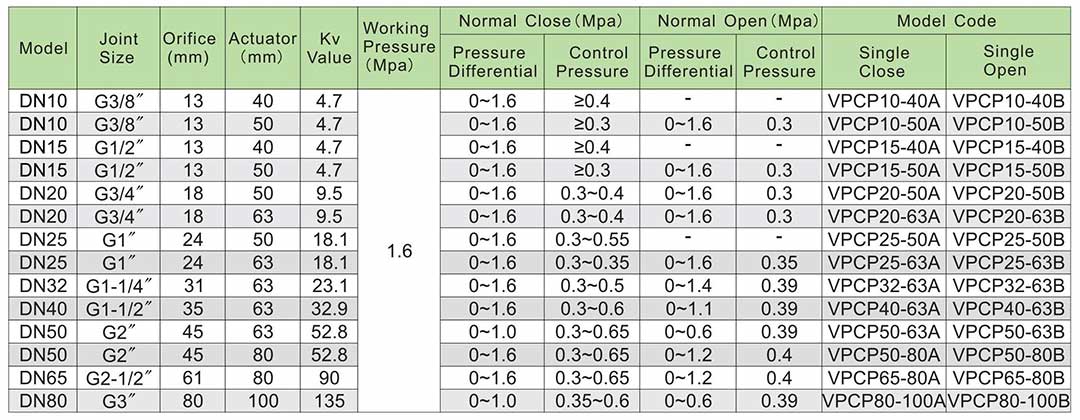

Product Specifications
| Model | VPCP10 to 50A/B/C/D |
| Joint size | DN10 to DN100 |
| Thread | G3/8'' to G4'' |
| Body material | SS316/SS304 |
| Actuator material | Engineering Plastics |
| Armacture seal | PTFE/FPM |
| Position rod seal | PTFE/FPM |
| Position seal | NBR/FPM |
| Control pressure | 0.3 to 1.0Mpa |
| Working temperature | PTFE: -10 to 180℃ FPM: 10℃ to 100℃ |
| Ambient temperature | -10℃ to 60℃ |
| Medium viscidity | ≤600mm2/s |
| Installation | Arbitrary Position |
| Control medium | Air, Neutral Gas |
| Working pressure | 0 to 1.6Mpa |
| Working medium | Water, Neutral gas or liquid, Alcohol, oil, Orangic solvent, Water vapor, Weak acid or Weak base solution |

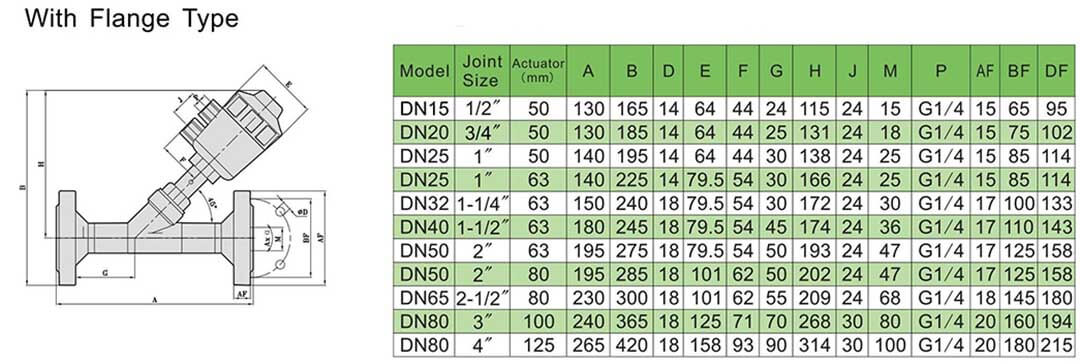

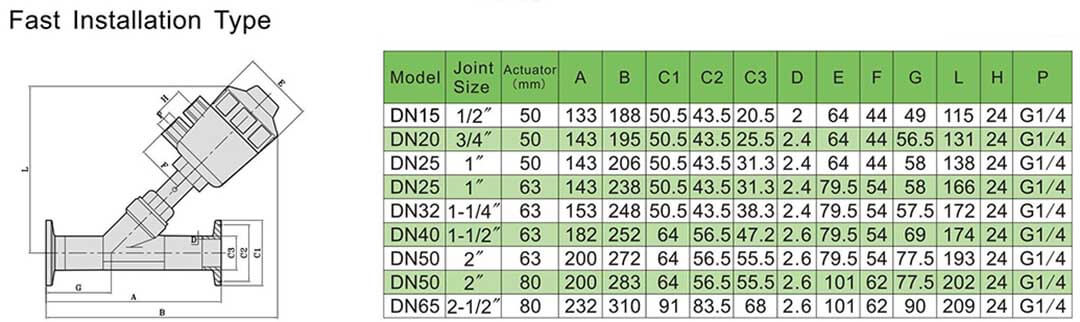

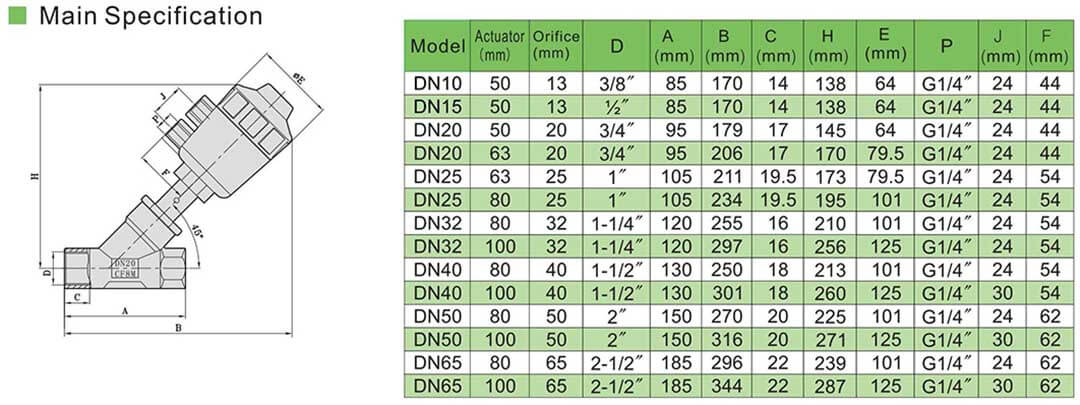

Main Dimensions
