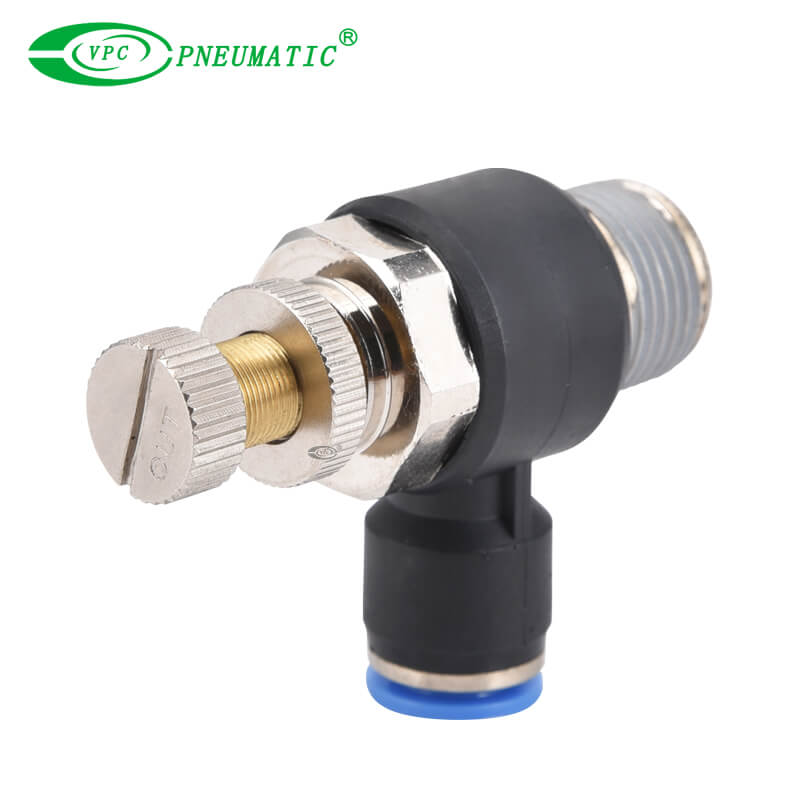

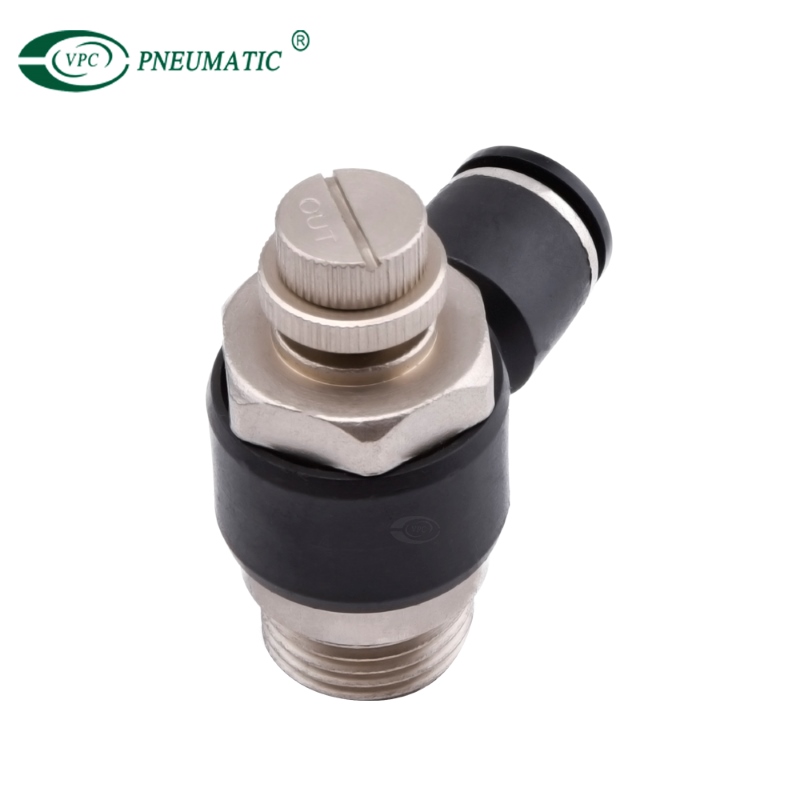

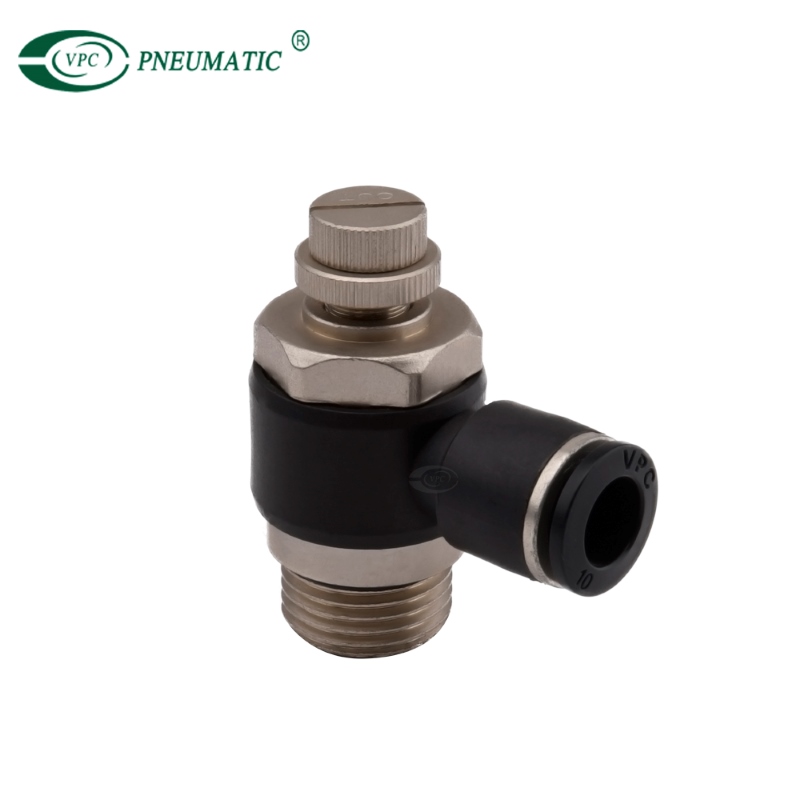

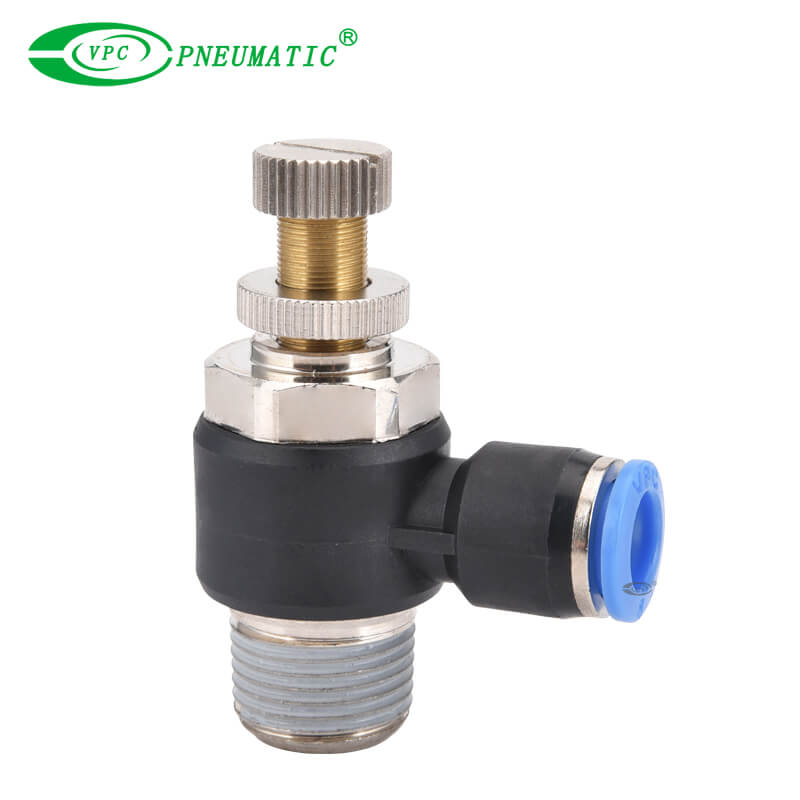

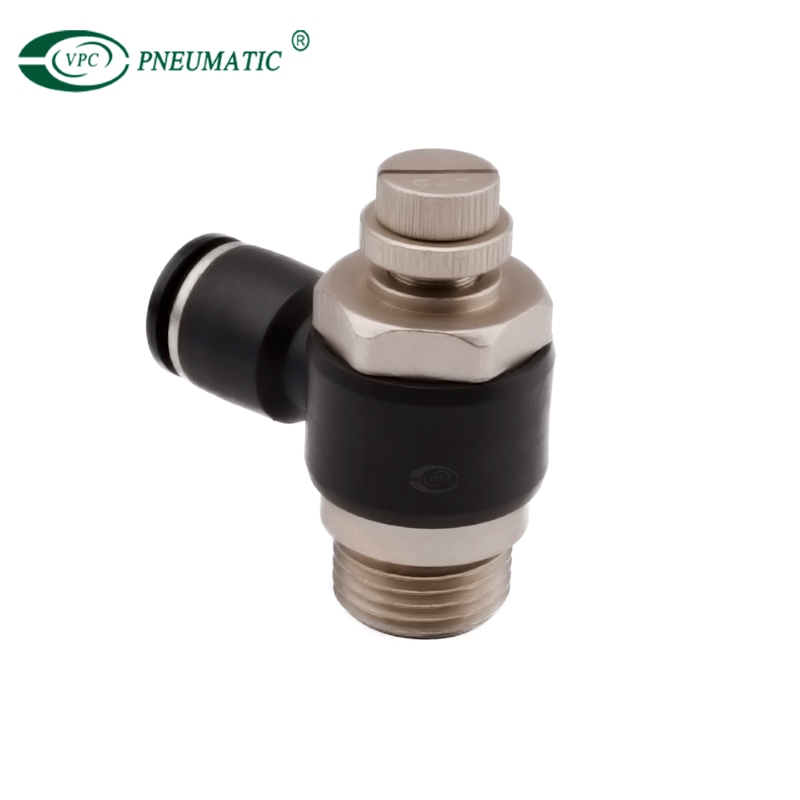

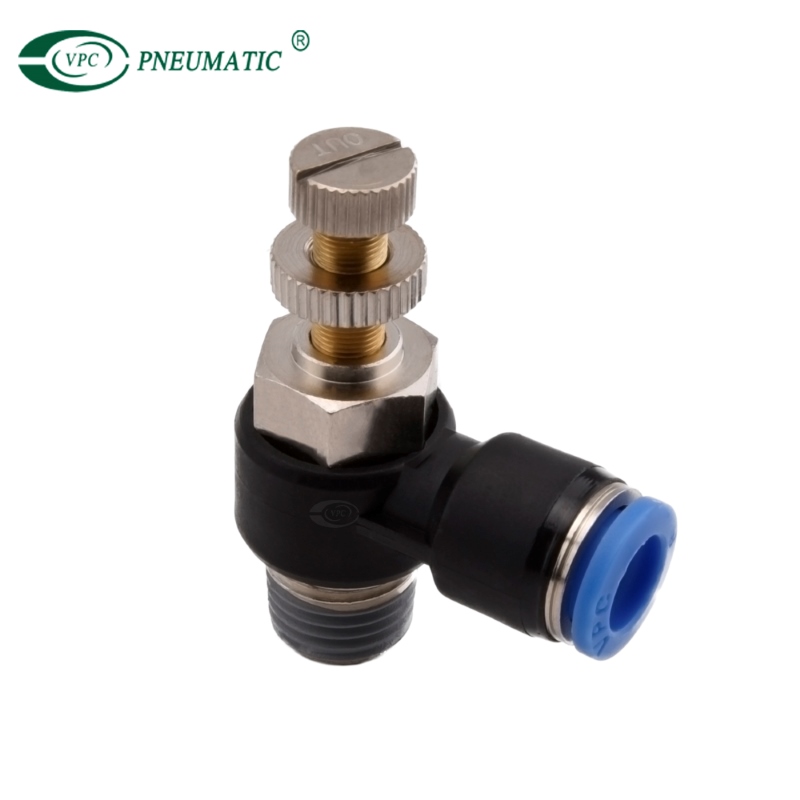

VSC Speed Controller Valve, Standard Type

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Precisely permit the optimal rate of airflow for the smooth cyl inder movement of driving devices.
  2. The Compact and light body permits use in confined space.
  3. Uni-directional airflow is available for either exhaust or inle t flow control methods.

  • VSC08-03

  • VPC Pneumatic

  • 39174000

Working medium:
Clean Air (No other gasses of liquids)
Applicable tube:
Nylon
Polyurethane
Thread:
R/NPT/BSPP
Body color:
Black, Blue, White
Availability:
Inquire Add to Basket

Product Description

pneumatic speed controller

■Tube Size

Tube (Metric) Tube (Inch)
Code 4 6 8 10 12 14 16 5/32 3/16 1/14 5/16 3/8 1/2
Tube Outside

Ф4

 Ф6 Ф8 Ф10 Ф12 Ф14 Ф16 Ф5/32 Ф3/16 Ф1/14 Ф5/16 Ф3/8 Ф1/2

■Thread

Thread (Metric)
Code M5 M6 M8 M10 M12 M14 M16
 M20
Thread M5×0.8 M6×1.0 M8×1.0 M10×1.0 M12×1.25 M14×1.5 M16×1.5 M20×1.5

55° Thread (R)
Code 01 02 03 04 06
Thread R1/8 R1/4 R3/8 R1/2 R3/4
55° Thread (G)
Code G01 G02 G03 G04 G06
Thread G1/8 G1/4 G3/8 G1/2 G3/4
Thread (UNF) US Thread 60°
Code U10 01N 02N 03N 04N 06N
Thread 10-32UNF NPT1/8 NPT1/4 NPT3/8 NPT1/2 NPT3/4

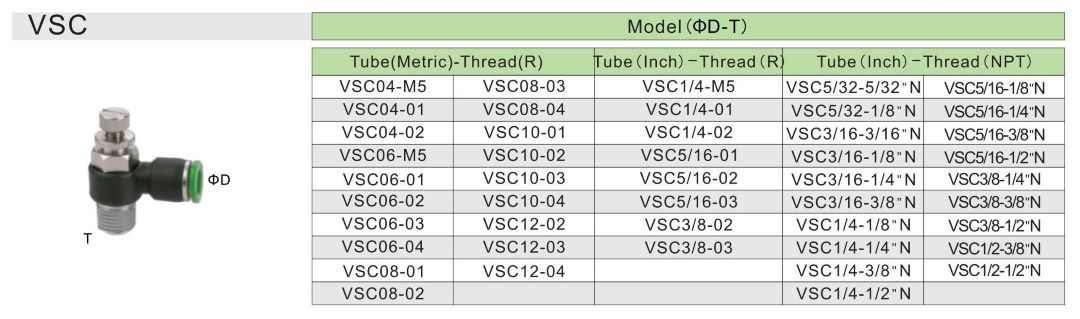

Product Specifications

pneumatic speed control valve

PDF Download

download Speed Control Valve.pdf
