This product has been off the shelf!

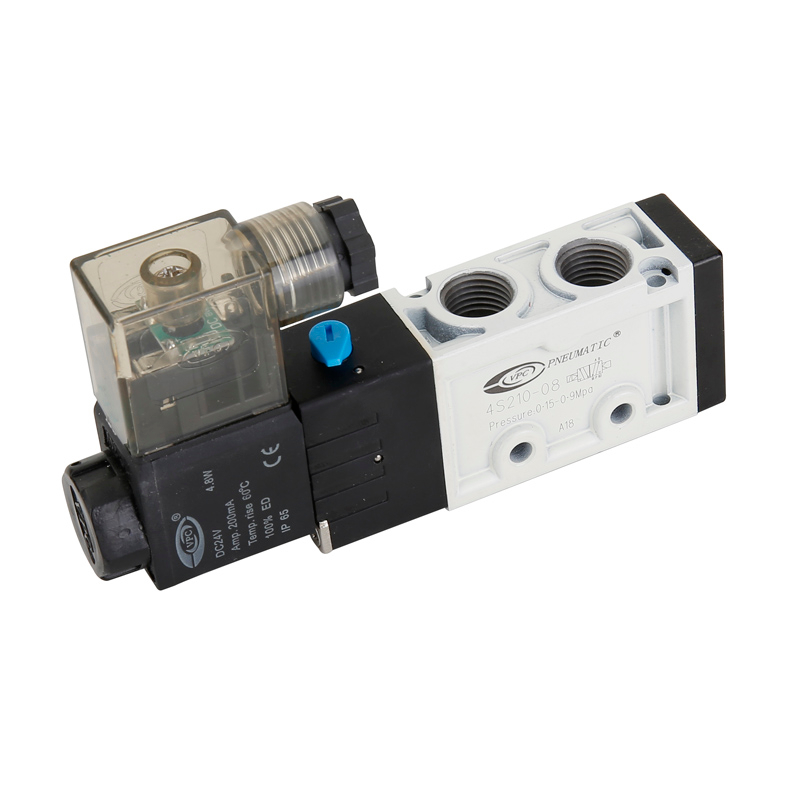

4S210-08 Solenoid Valve

Share to:
4S210-08 (MVSC-220) Solenoid Valve Type Code.: 5 port 2 position (2/5way) Port size: In=Out=1/4” Fluid: Air Operation: Internal Guide (External Guide) Operating Pressure: 0.15~0.8MPa Max. Proof Pressure: 1.2MPa Temperature: -5~60℃ Allowable Voltage: ±10% of rated voltage Protection Grade: Class F.IP65 Heat Resistant Grade: B Coil Type: DIN Type, Flying Leads Max Acting Frequency: 5 times/second Shortest Excitation Time: 0.05 second Dimension is same as 4V210-08 and MVSC-220 Working Voltage: DC12V DC24V AC110V AC220V
