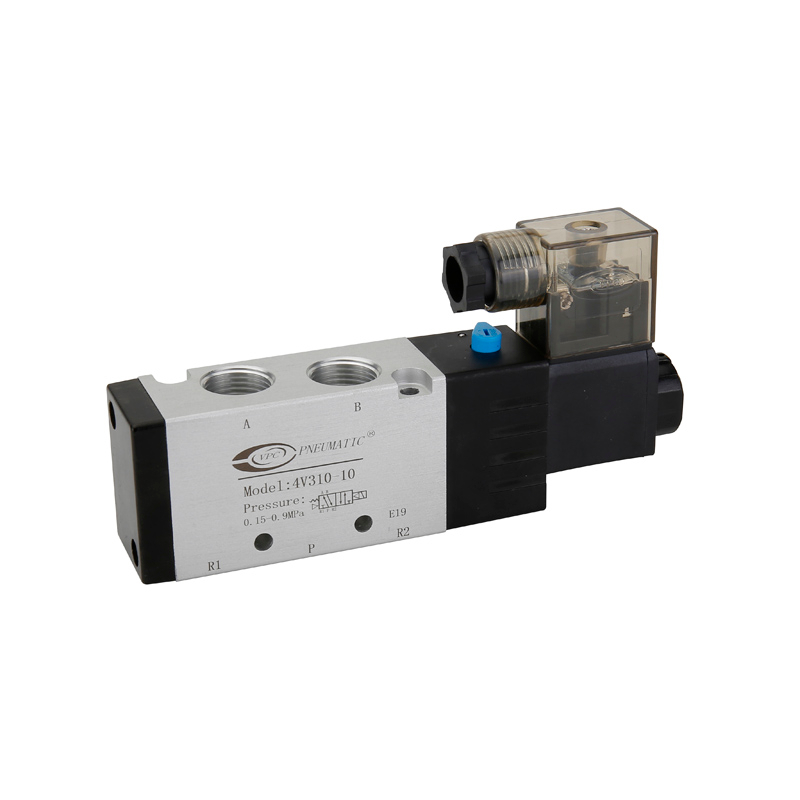

4V310-10 Single Control Solenoid Valve
Type Code.: 5 port 2 position (2/5way)
Port size: In=Out=3/8”
Fluid: Air
Operation: Internal Guide (External Guide)
Operating Pressure: 0.15~0.8MPa
Max. Proof Pressure: 1.2MPa
Temperature: -5~60℃
Allowable Voltage: ±10% of rated voltage
Protection Grade: Class F.IP65
Heat Resistant Grade: B
Coil Type: DIN Type, Flying Leads
Max Acting Frequency: 4 times/second
Shortest Excitation Time: 0.05 second
Working Voltage: DC12V DC24V AC110V AC220V
