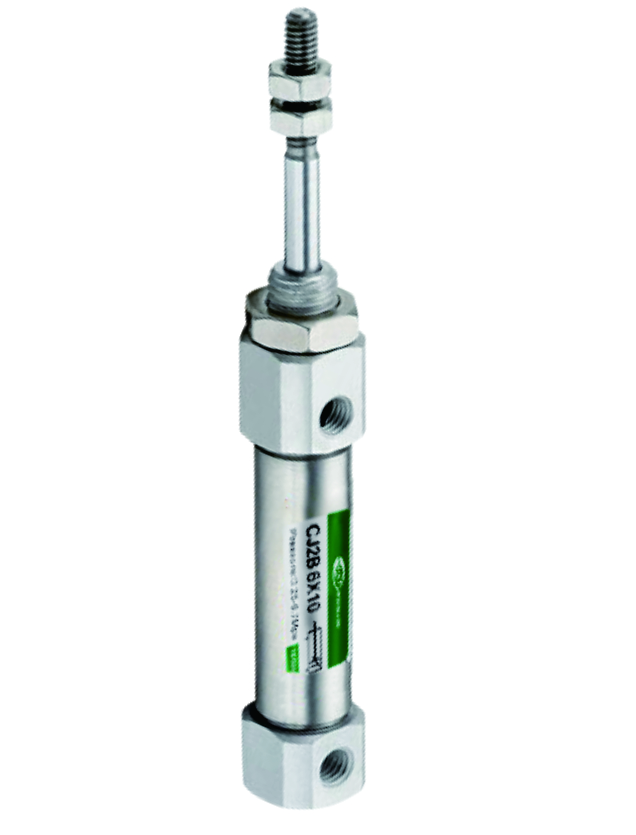

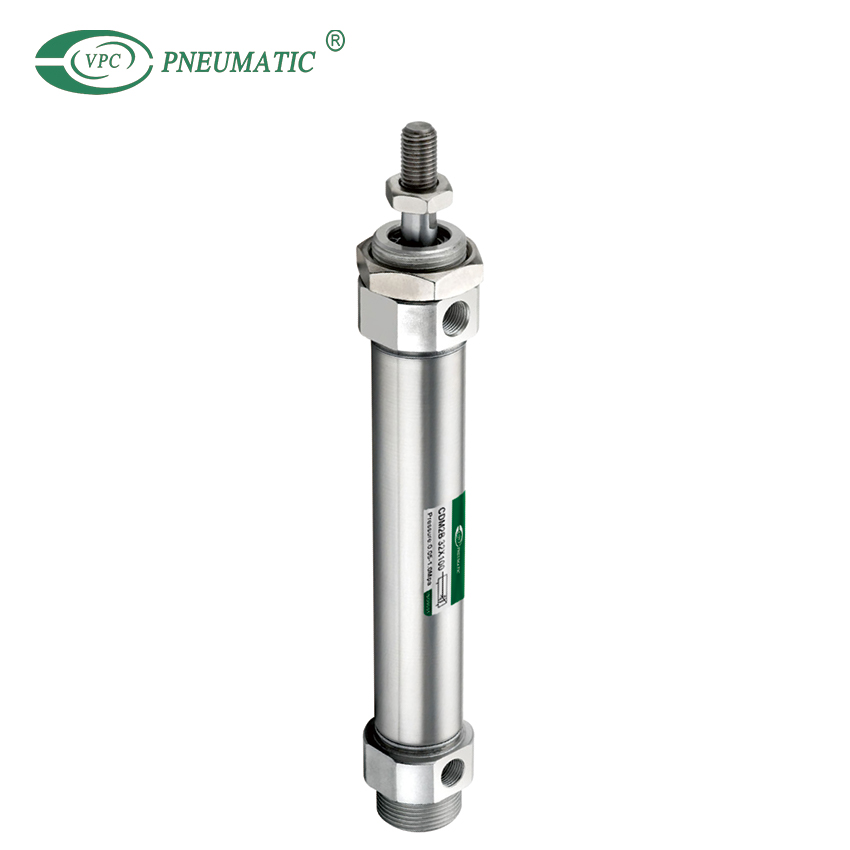

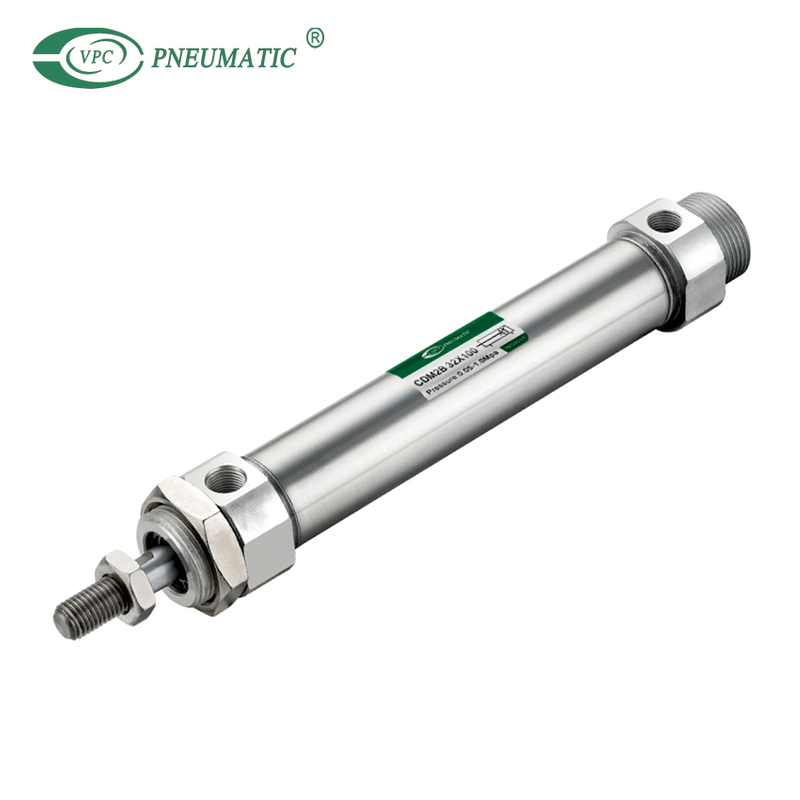

CJ2B Series Mini Cylinder
CJ2B Series Mini Cylinder CJ2B Series Mini Cylinder
CJ2B Series Mini Cylinder CJ2B Series Mini Cylinder
CJ2B Series Mini Cylinder CJ2B Series Mini Cylinder

loading

CJ2B Series Mini Cylinder

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • CJ2B series double acting, single rod, smooth type air cylinders are available in 10 and 16mm bore sizes with stroke lengths from 15mm to 200mm.
  • Smooth type is perfect for low speed or low pressure applications. Available in 7 mounting types for versatility.
  • Optional features include port location and magnet for auto-switch capability. Pivot and rod end brackets can be ordered with the cylinder under one part number.

  • CJ2B

  • VPC Pneumatic

  • 8412310090

Acting type:
Double acting
Single acting
Guaranteed pressure:
1.05Mpa
Working temperature:
-10 to 70℃
Working medium:
Air
Speed range:
50 to 750mm/s
Availability:
Inquire Add to Basket

Product Description

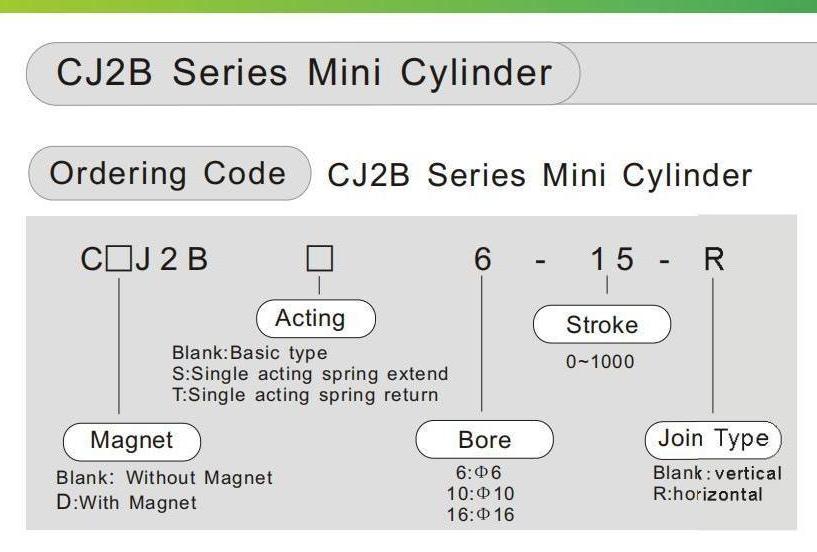

CJ2B参数

Product Specifications

Bore(mm）61016
Working MediumClean Air(40µm Filteration)
Guarantee Pressure1.05Mpa
Max Working Pressure0.7Mpa
Min Working Pressure0.12Mpa0.06Mpa
Working Temperature-10 to 70℃
Speed Range50 to750mm/s
Cushion TypeRubber Cushion
Tolerance of Stroke±1.0mm

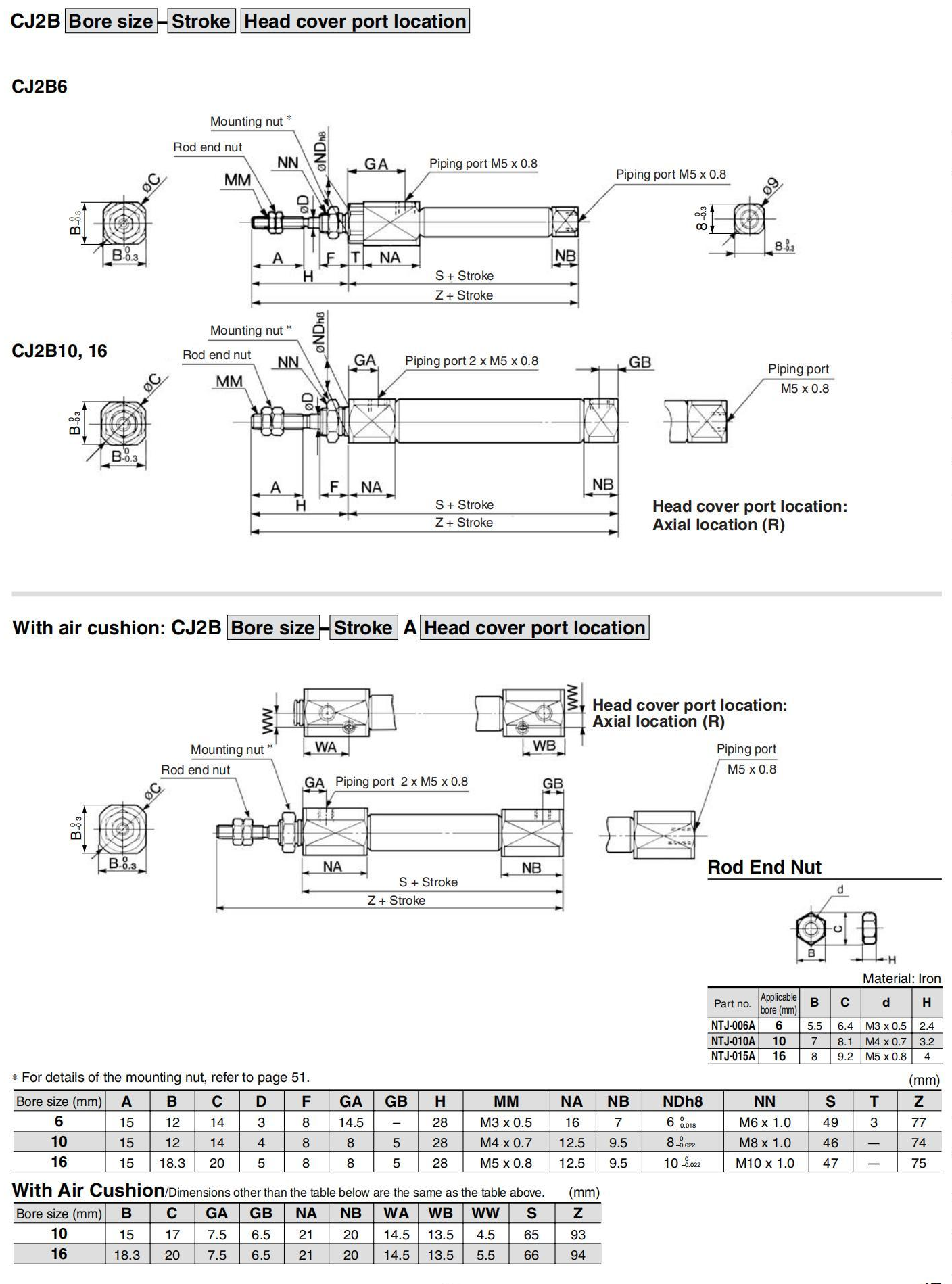

Main Dimensions

CJ2_08
