CS1-G Series Pneumatic Cylinder Reed Switch

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

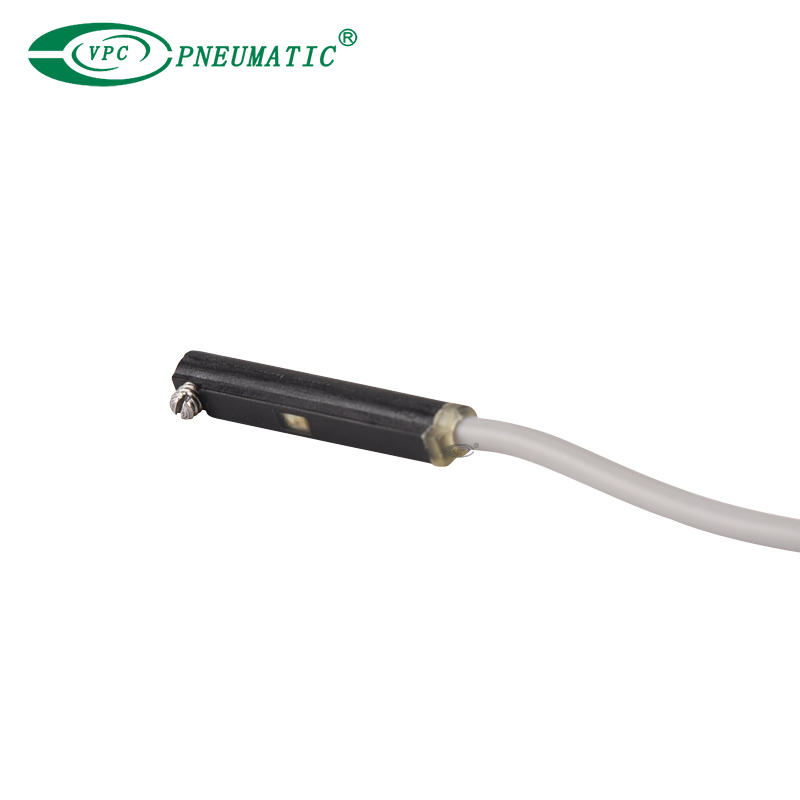

CS1-G pneumatic cylinder reed switch is compact, highly sensitive, and uses magnetic sensing to detect piston positions in pneumatic cylinders. It features easy installation, durable construction, an LED indicator, and wide voltage compatibility (5V to 240V AC/DC), making it ideal for industrial automation and safety applications.

  • CS1-G

  • VPC Pneumatic

Material:
Applicable cylinders:
Availability:

Product Description

 Product Feature

1. Compact Design: Small and lightweight, suitable for space-constrained applications.

2. Magnetic Sensing Technology: Uses a magnetic sensor to detect the position of the piston inside a pneumatic cylinder.

3. High Sensitivity: Capable of detecting weak magnetic fields, ensuring precise position sensing.

4. Durability: Constructed with materials that offer high resistance to wear and environmental factors, such as dust and moisture.

5. Easy Installation: Can be easily mounted on pneumatic cylinders using clamps or other mounting accessories.

6. LED Indicator: Equipped with an LED indicator for visual confirmation of the switch status (on/off).

7. Wide Operating Voltage Range: Compatible with various voltage levels, typically ranging from 5V to 240V AC/DC.

8. Output Options: Provides different types of outputs (NPN, PNP, or Reed) to suit various control systems.

9. Shock and Vibration Resistance: Designed to withstand industrial environments with high levels of shock and vibration.

10. Temperature Range: Operates efficiently within a wide temperature range, making it suitable for various industrial settings.




Product Specifications

ModelCS1-GCS1-GXCS1-GNCS1-GP
Switch logicSTSP Normally opened typeTransistor without contact, Normally opened type
Sensor typeReed switch with contactNPN typePNP type
Operating voltage5 to 240V AC/DC5 to 30V DC
Max. Switching current100mA200mA
Switching ratingMax.10WMax.6W
Current consumptionNO15mA Max. @24V
Voltage drop2.5V Max.@ 100mA DC0.5V Max.@200mA DC
CableФ3.3, 2C, Gray oil resistant
PVC (Flame retarded)
Ф3.3, 3C, Black oil resistant
PVC (Flame retarded)
IndicatorRed LEDNORed LED
Leakage currentNO0.01mA Max.
Sensitivity60 to 75Gauss60 to 75Gauss
Max. Frequency200Hz1000Hz
Shock300㎨500㎨
Vibratio90㎨90㎨
Temperature range-10 to 70℃-10 to 70℃
Enclosure classificationIP67(NEMA6)IP67(NEMA6)
Protection circuitNOPower reverse polarity, surge suppression

Note: Please contact us for high remperature resistant( 125 to 150℃), low remperature resistant(- 40 to - 25) and explosion-proof sensor switch.

Main Dimensions

air cylinder reed switch
