Product Description

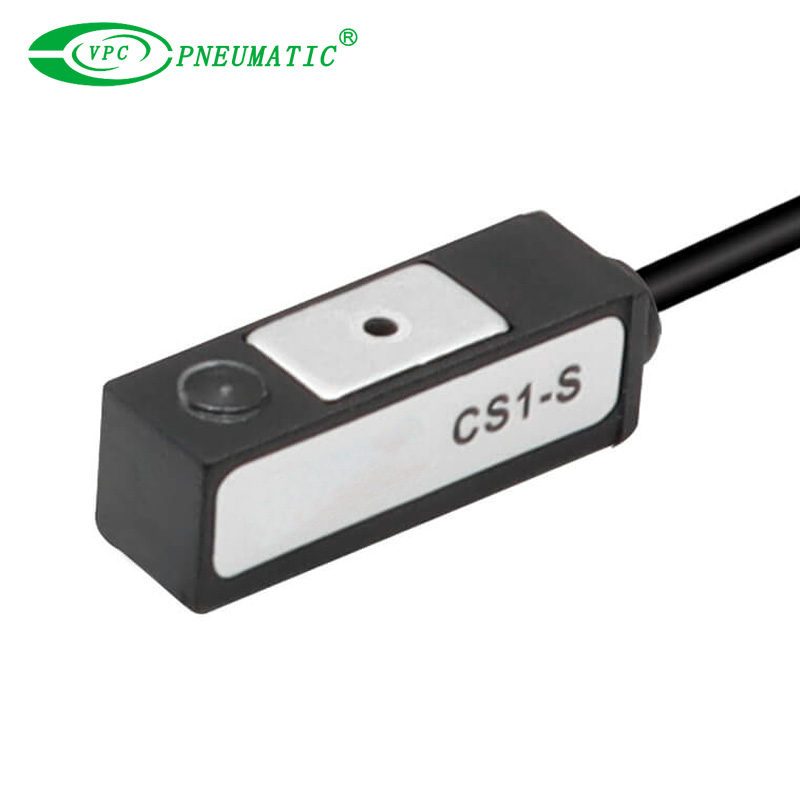

1. Ultimate Versatility
Broad Compatibility: Choose between 2-wire reed switch (5-240V DC/AC) for traditional circuits or high-speed 2/3-wire solid-state sensor (NPN/PNP) options.
Simplified Sourcing: A single product family streamlines inventory for diverse machine designs and system integration needs.
2. Built for Harsh Conditions
IP67-Rated: Fully protected against dust ingress and water immersion.
Extreme Durability: Withstands 50G shock & 9G vibration, ensuring reliable cylinder position feedback.
3. Reliable & Easy Integration
Advanced Protection: 3-wire models feature built-in reverse polarity & surge protection for secure operation.
Rapid Feedback: Solid-state versions offer a 1000Hz switching frequency for high-speed automation.
Clear Status: Bright LED indicators simplify setup, monitoring, and troubleshooting.

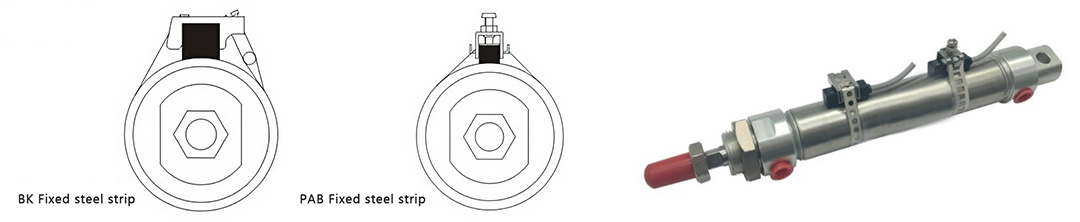

4. Suitable for Tie Rod Cylinders
Product Specifications
| Model | CS1-S | CS1-S-W | CS1-S-NPN | CS1-S-PNP |
| 2-Wire Type | 2-Wire Type | 3-Wire Type | ||
| Switching logic | SPST Normally Open | Electronic no contact type N.O. | ||
| Sensor type | With contact type | None contact type | None contact type NPN | None contact type PNP |
| Operating voltage | 5 to 240V DC/AC | 10 to 28V DC | 5 to 30V DC | |
| Max. switching current | 100mA max. | 4 to 40mA max. | 200mA max. | |
| Contact rating | 10 W max. | 1.5W max. | 6W max. | |
| Current consumption | - | 8 mA @24V DC max. | ||
| Voltage drop | 3.0 V max. | 1.5 V max. | ||
| Leakage current | - | 1 mA max. | 0.01 mA max. | |
| Indicator | Red LED | Red LED | Green LED | |
| Max. exchange frequency | 200Hz | 1000Hz | 1000Hz | |
| Temperature range | -10 ~ 70°C | |||
| Shock | 30G | 50G | 50G | |
| Vibration | 9G | |||
| Enclosure classification | IEC 529 IP 67 | |||
| Cable | Φ3.2, 2C, PVC | Φ3.2, 3C, PVC | ||
| Switch sensitive | 70G | 40G | 70G | |
| Protection circuit | None | Reverse polarity protection; Surge protection | ||
Note:
1. Do not exceed the contact rating (P = V x I).
2. Standard magnet used for measurement: Anisotropic rubber magnet (Dimensions: Ø15.5 x Ø8 x 5t mm).
3. Test condition for Shock: A sine wave pulse applied 3 times in each of the X, Y, and Z axes for a duration of 11 ms each.
4. Test condition for Vibration: Double amplitude of 1.5 mm, frequency swept from 10 to 55 to 10 Hz in 1-minute cycles. The test is performed for 1 hour in each of the X, Y, and Z axes.

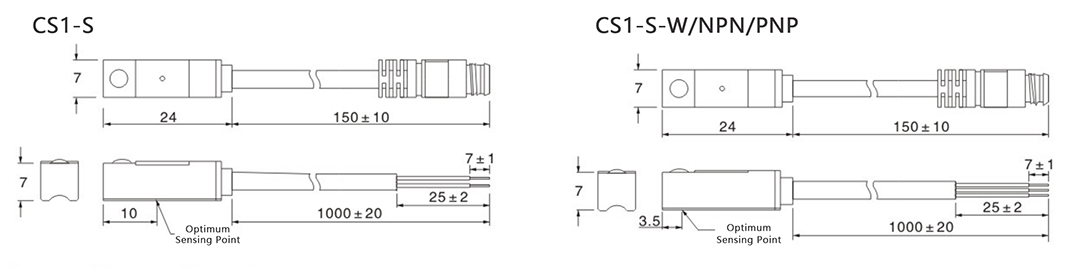

Main Dimensions
