| Material: | |
|---|---|
| Applicable cylinders: | |

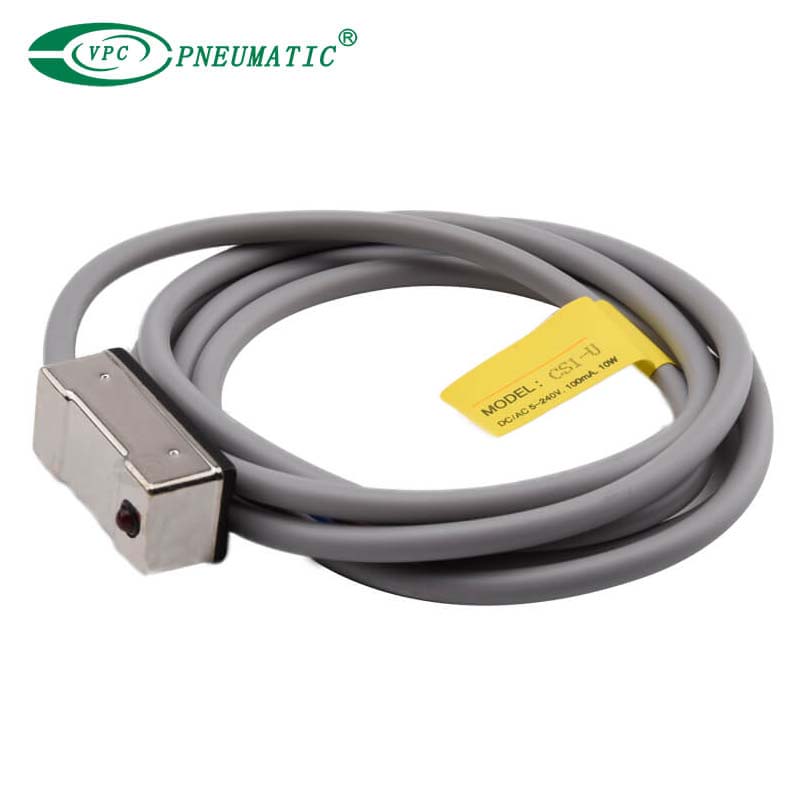

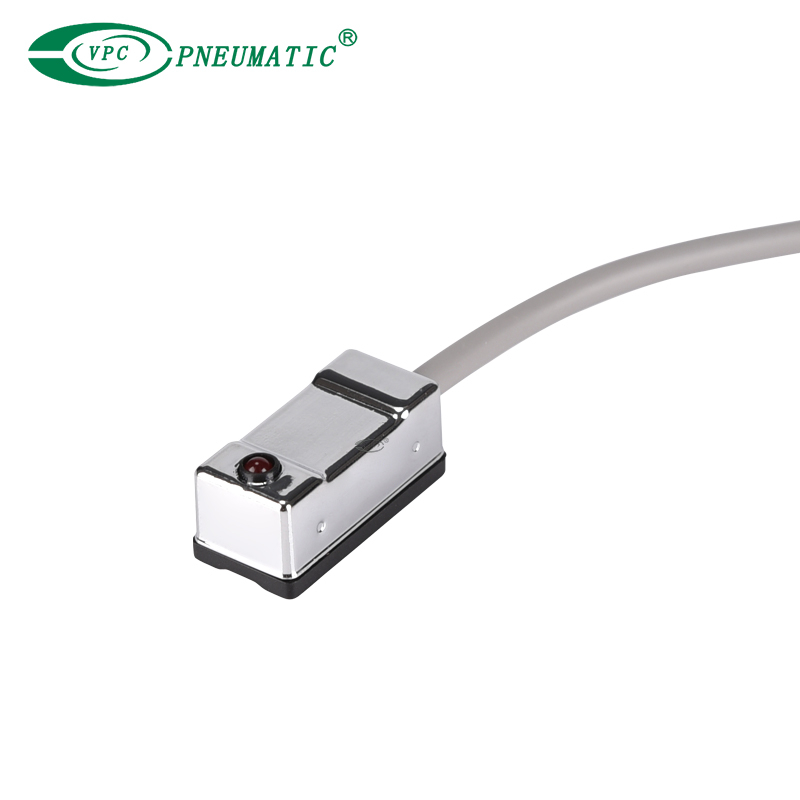

Product Description
1. Compact Design: Small and lightweight, suitable for space-constrained applications.
2. Magnetic Sensing Technology: Uses a magnetic sensor to detect the position of the piston inside a pneumatic cylinder.
3. High Sensitivity: Capable of detecting weak magnetic fields, ensuring precise position sensing.
4. Durability: Constructed with materials that offer high resistance to wear and environmental factors, such as dust and moisture.
5. Easy Installation: Can be easily mounted on pneumatic cylinders using clamps or other mounting accessories.
6. LED Indicator: Equipped with an LED indicator for visual confirmation of the switch status (on/off).
7. Wide Operating Voltage Range: Compatible with various voltage levels, typically ranging from 5V to 240V AC/DC.
8. Shock and Vibration Resistance: Designed to withstand industrial environments with high levels of shock and vibration.
9. Temperature Range: Operates efficiently within a wide temperature range, making it suitable for various industrial settings.
Product Specifications
| Model | CS1-U | CS1-UX |
| Switch logic | STSP Normally opened type | |
| Switch type | Reed switch with contact | |
| Operating voltage | 5 to 240 V AC/DC | |
| Max. Switching current | 100 mA | |
| Switching rating | Max. 10 W | |
| Current consumption | No | |
| Voltage drop | 2.5V Max.@100mA DC | |
| Cable | Ф4.0, 2C, Gray oil resistant PVC (Flame retarded) | |
| Indicator | Red LED | No |
| Leakage current | No | |
| Sensitivity | 60 to 75 Gauss | |
| Max. Frequency | 200 ㎐ | |
| Shock | 300 ㎨ | |
| Vibration | 90 ㎨ | |
| Working temperature | -10 to 70 ℃ | |
| Enclosure classification | IP67(NEMA6) | |
| Protection circuit | No | |
Note: Please contact us for high remperature resistant( 125°C), low remperature resistant(- 40~ - 25°C) and explosion-proof sensor switch.
Main Dimensions
