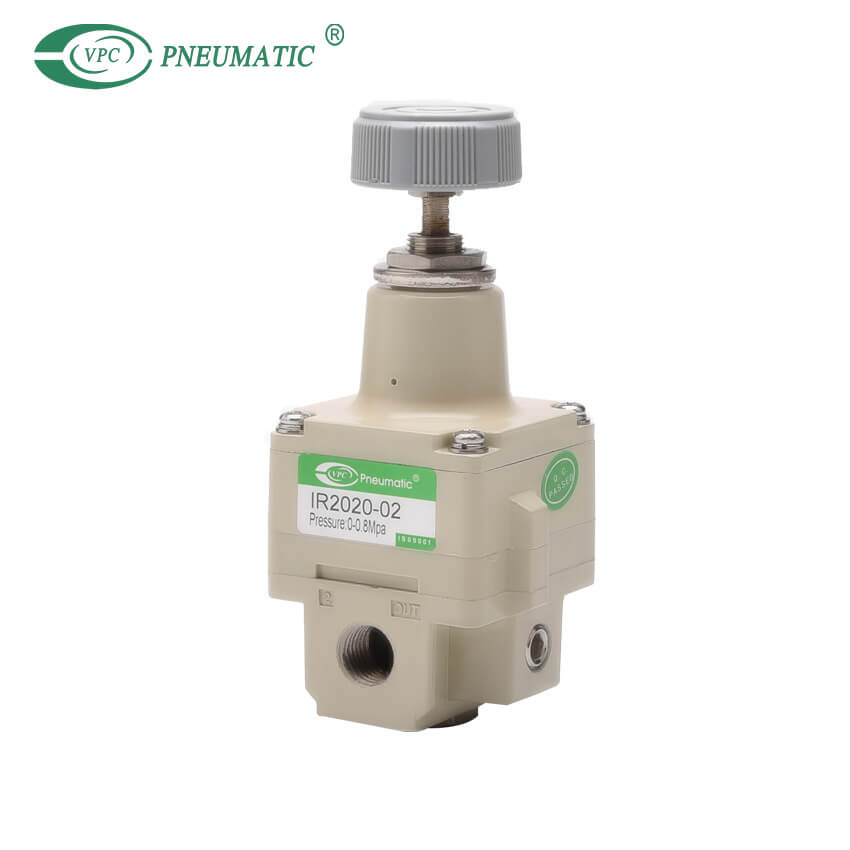

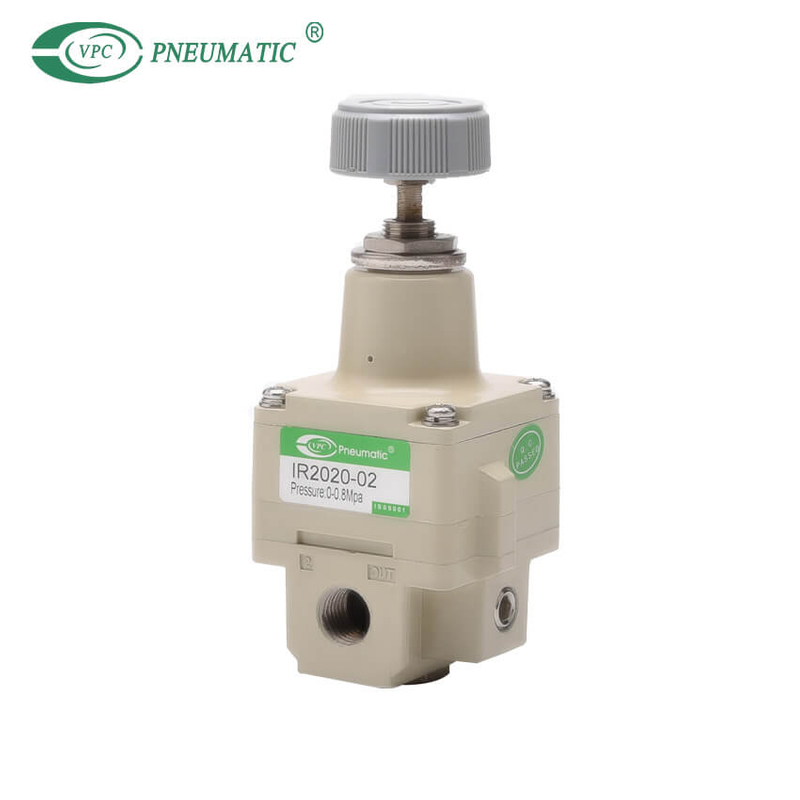

IR2020-02
VPC Pneumatic
8481804090
Working medium: | |
---|---|
Availability: | |
Product Specification
IR - 2① 0② 0③ 0 - □④ 02⑤ □⑥ - □⑦ - □⑧
① 2 → Body Size
1 | IR1000 series |
2 | IR2000 series |
3 | IR3000 series |
② 0 → Type of Setting
0 | Basic type(Knob) |
1Note1) | Air operated type |
③ 0 → Set Pressure Range
0 | 0.005 to 0.2 MPa |
1 | 0.01 to 0.4 MPa |
2 | 0.01 to 0.8 MPa |
0 | 0.01 to 0.2 MPa |
1 | 0.01 to 0.4 MPa |
2 | 0.01 to 0.8 MPa |
④ □ → Thread Type
Nil | Rc |
N | NPT※ |
F | G※ |
※Semi-standard
⑤ 02 → Port Size
Symbol | Size | Application | ||
IR1000 | IR2000 | IR3000 | ||
01 | 1/8 | ● | ||
02 | 1/4 | ● | ● | |
03 | 3/8 | ● | ||
04 | 1/2 | ● |
⑥ □ → Thread Type
Nil | None |
B | with bracket |
GNote2) | with pressure gauge |
⑦ □ → Suffix 1
Nil | – |
TNote3) | For high temp.environments(-5 to 100℃) |
LNote4),5) | For low temp.environments(-30 to 60℃) |
⑧ □ → Suffix 2
Nil | – |
RNote6) | Bracket,Name plate,Mounting on the opposite side |
⑨ □ → Made to OrderNote7)
Symbol | Specification |
X1 | Non-grease specifications |
X170 | Compatible with modular connection brackets (With modular adapter) |
X465 | With digital pressure switch (ISE30A) |
Note 1) Air operated type is IR2120 and IR3120 only.
Note 2) For the model with pressure gauge (G), the pressure gauge is shipped together, but not assembled.
Note 3) Max. 80°C for the high temperature environment specification T with pressure gauge (G)
Note 4) For the low temperature environment specification L, combinations with the pressure gauge (G) are not available.
Note 5) The low temperature environment specification L is not available for the IR1000 series.
Note 6) The standard mounting position of the name plate is on the front when viewing the precision regulator with the SUP side to the left and OUT side to the right. The bracket is attached to the back.
Note 7) The product for the following specifications is also available:
Prefix (10-): Clean series
Prefix (25A-): Secondary battery compatible
Prefix (80-): Ozone resistant (Fluororubber specification)
IRMOO: Manifold specifications (For IR1000 and IR2000 series only. Except air operated type and IR3000 series)
Product Description
Model | Basic type | Air operated type | |||
IR10□0 | IR20□0 | IR30□0 | IR2120 | IR3120 | |
Working medium | Air | ||||
Max. working pressure | 1.0MPa | ||||
Min. working pressure*1) | Set pressure + 0.05MPa | Set pressure + 0.1MPa | Set pressure + 0.05MPa | Set pressure + 0.1MPa | |
Set pressure range | IR1000: 0.005 to 0.2MPa IR1010: 0.01 to 0.4MPa IR1020: 0.01 to 0.8MPa | IR2000: 0.005 to 0.2MPa IR2010: 0.01 to 0.4MPa IR2020: 0.01 to 0.8MPa | IR3000: 0.01 to 0.2MPa IR3010: 0.01 to 0.4MPa IR3020: 0.01 to 0.8MPa | 0.01 to 0.8MPa | 0.01 to 0.8MPa |
Input signal pressure*2) | — | 0.01 to 0.8MPa | 0.01 to 0.8MPa | ||
Sensitivity*3) | Within 0.2% of full span | ||||
Repeatability*3) | Within ±0.5% of full span | ||||
Linearity*4) | — | Within ±1% of full span | |||
air consumption*5) (At supply pressure of 1.0MPa) | 4.4L/min (ANR) or less | 4.4L/min (ANR) or less | 11.5L/min (ANR) or less | 4.4L/min (ANR) or less | 11.5L/min (ANR) or less |
Port size | Rc1/8 | Rc1/4 | Rc1/4,3/8,1/2 | Rc1/4 | Rc1/4,3/8,1/2 |
Pressure gauge | Rc1/8 (2 locations) | ||||
Working temperature | -5 to 60℃ (No freezing) |
*1) With the condition of no flow on the output side. Together with the set pressure, be sure to maintain a minimum differntial pressure of 0.05 MPa for IR1000 and IR2000 series, and 0.1 MPa for IR3000 series.
*2) Applicable only to air operated types IR2120 and IR3120. The basic type is excepted.
*3) Characteristic values are subject to conditions where other characteristics, such as secular change and temperature change, are not included.
*4) Indicates the linearity of the output pressure with respect to the input signal pressure.
*5) Air is normally being discharged to the atmosphere from a bleed hole or an exhaust port.
Description | Part No. | ||||||||
IR1000 | IR1010 | IR1020 | IR2000 | IR2010 | IR2020/2120 | IR3000 | IR3010 | IR3020/3120 | |
Bracket | P36201023 | P36202028 | P362030-20* | ||||||
Pressure gauge (Rc, G) | G33-2-01 | G33-4-01 | G33-10-01 | G43-2-01 | G43-4-01 | G43-10-01 | G43-2-01 | G43-4-01 | G43-10-01 |
* A bracket and two mounting screws (M5 x 35). To mount the bracket, remove two body screws (M5 x 30) on the name plate on the opposite side and replace the attached two bracket mounting screws (M5 x 35).
Description | Applicable model | ||
IR10□0-□01□-X170 | IR2□□0-□02□-X170 | IR3□□0-□□□-X170 | |
①Air filter | AF20-A | AF30-A | AF40-A |
②Mist separator | AFM20-A | AFM30-A | AFM40-A |
③Interface | Y200-A | Y300-A | Y400-A |
④Interface with bracket | Y200T-A | Y300T-A | Y400T-A |
* The modular adapter attached to the Made-to-Order product (IR□□□□-□□-X170) is shipped together, but not assembled.
