Home / Products / Pneumatic Fitting / PC Male Elbow Air Connector 4mm to 12mm Stainless Steel Pneumatic pipe push in one touch Fitting

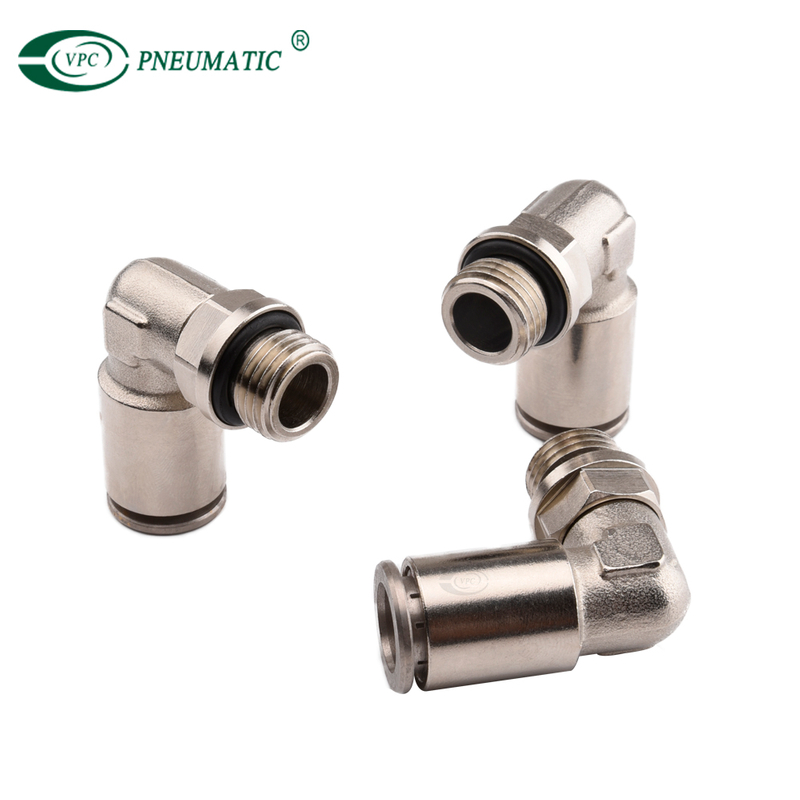

PC Male Elbow Air Connector 4mm to 12mm Stainless Steel Pneumatic pipe push in one touch Fitting

Share to:
* Fast installation,simple and smart,space-saving.
* In a variety of models,suitable for any tubes.
* Even after installation,the direction of the tube can be changed freey.
* Elliptical release ring design easy to dismantle.
* Once be inserted,the tube would not easily loose.
* All the taper pipe threads are pre-costed sealant, perfect sealing performance.
  • VMPL 04-G01
  • VPC
  • 39174000
Thread Size:

Product Description

Prouduct Description01

VMPU 海报

Working Medium

Air/Vacuum/Water

Working pressure range

0~1.0Mpa

Guaranteed pressure

3Mpa

Vacuum pressure

-100Kpa

Working temperature

Air:0~60℃,Water:0~40℃

Tube material

Nylon,PU Tube

OD of tube

Ф4/Ф6/Ф8/Ф10/Ф12

Perfect Sealing

Easy to install in narrow places

The pipe is not easy to loose after installation

All the taper pipe threads are Pre-coated sealant, nice sealing performance

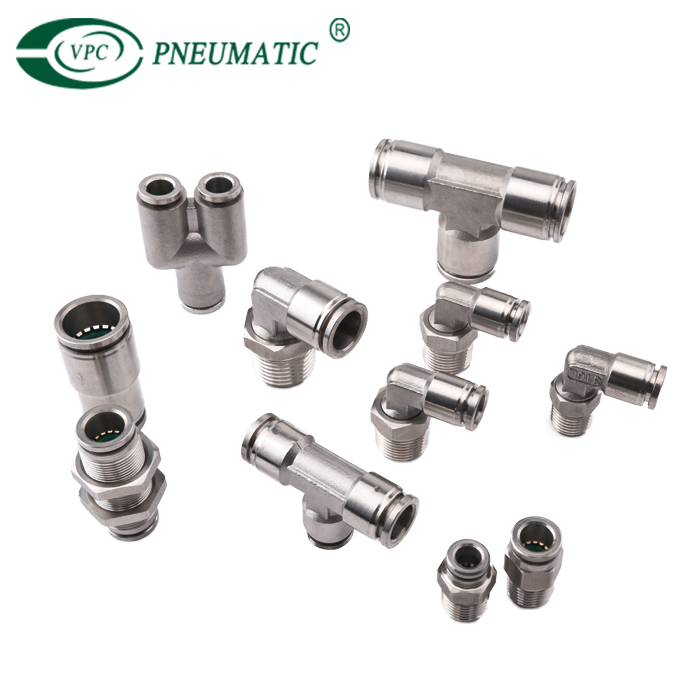

DSC_7604

Fast Installationg

Even after installation,the direction of the tube can be changed freey

Variety of models,suitable for any tubes,simple and smart,space-saving

Pneuamtic Fitting-气动接头

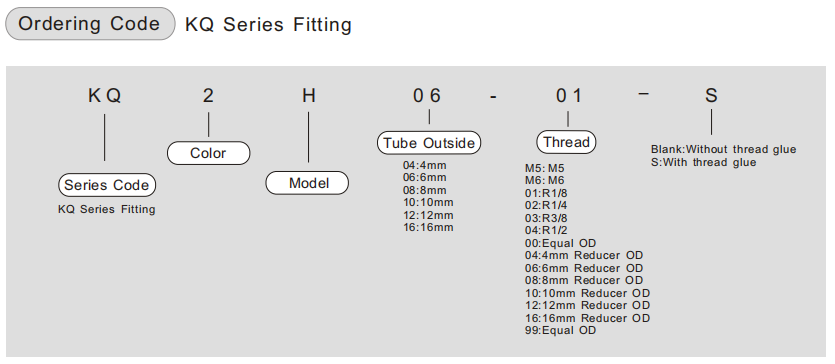

HOW TO ORDER 01

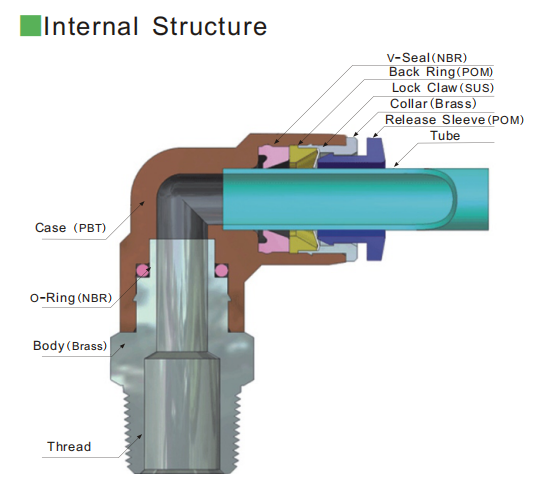

不锈钢接头参数-1

不锈钢接头参数

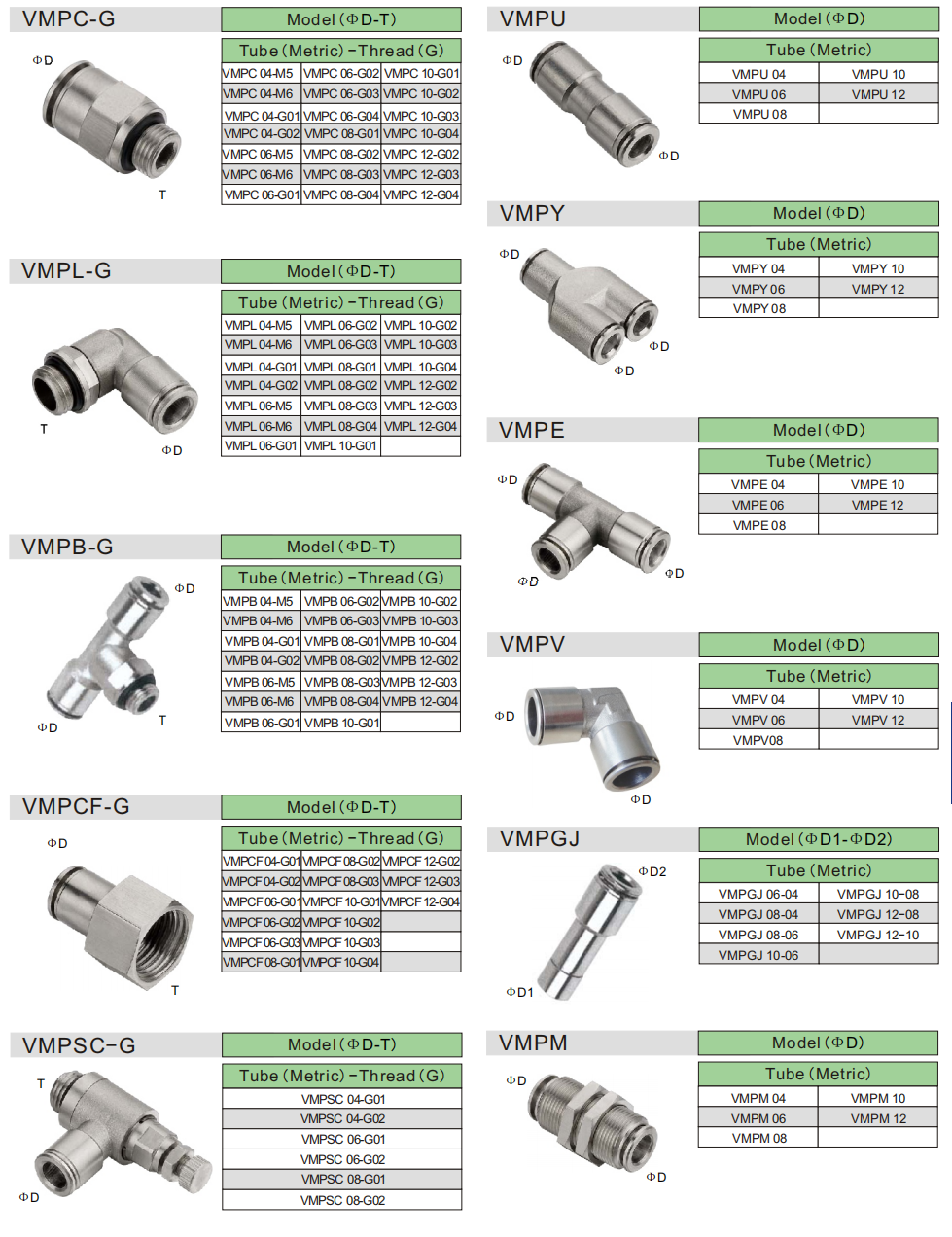

不锈钢接头参数-2

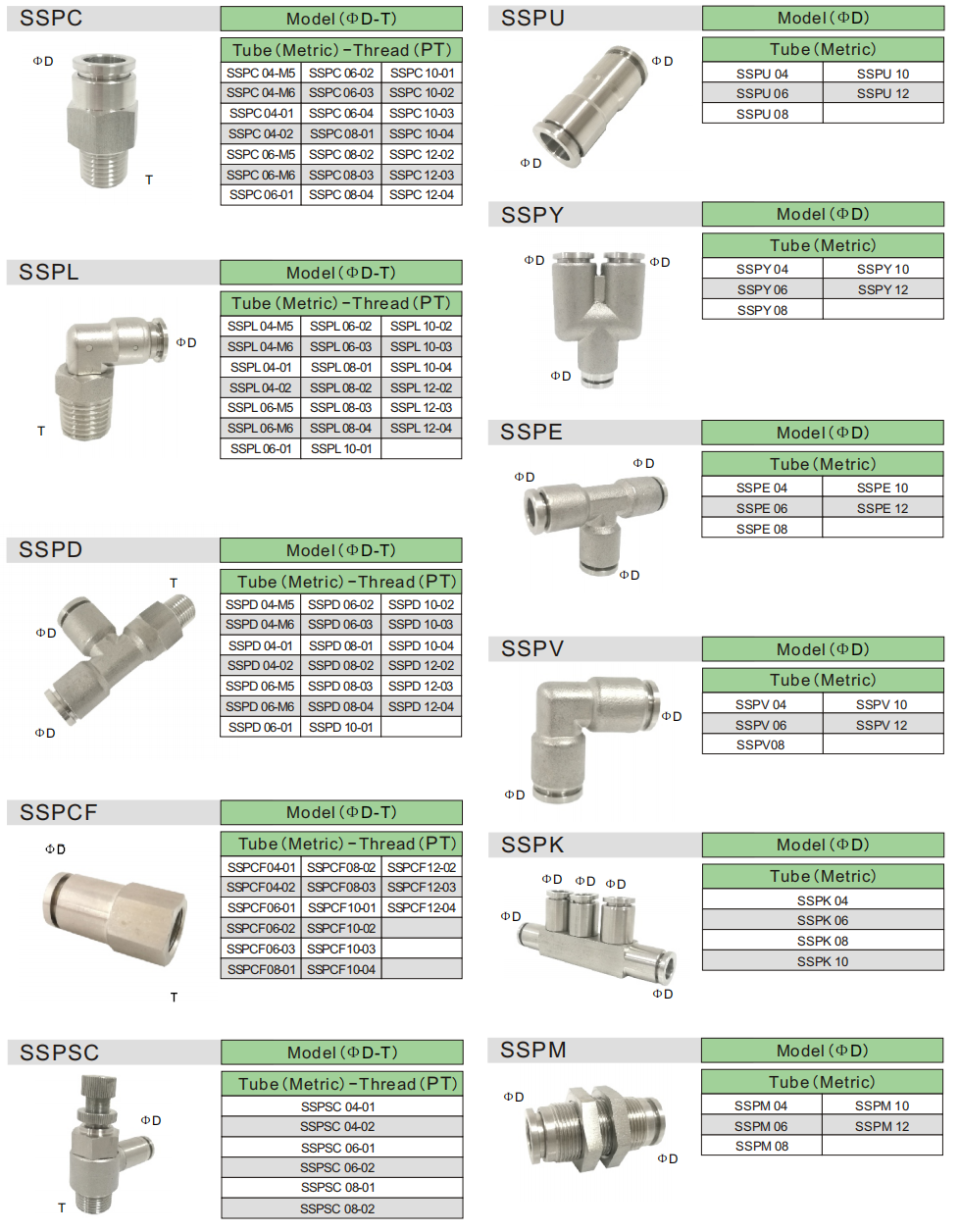

不锈钢接头参数-3

韦和详情页(9.12版)-1

OUR CERTIFICATE

2

FAQ

Q1:What is your quality assurance?

A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.


Q2:What is your terms of payment?

A: TT 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

B: Paypal payment, Alibaba Trade Assurance order also available.


Q3: How about the lead time?

A: It depends on your order quantity. Normally it will take 10-15 days for our routine products.


Q4:What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q5:How about the warranty?

A: 1 year
