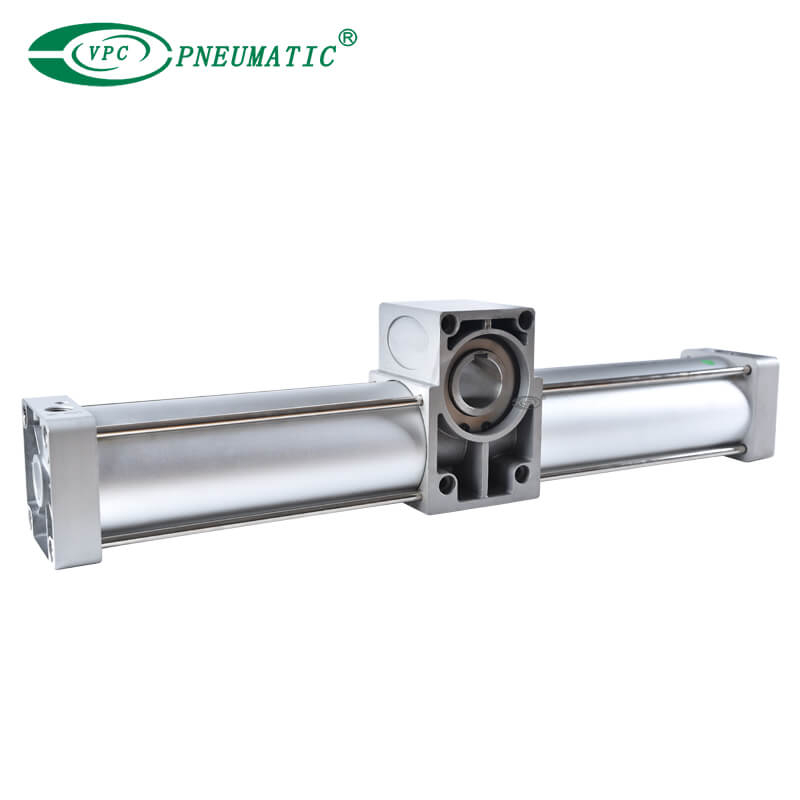

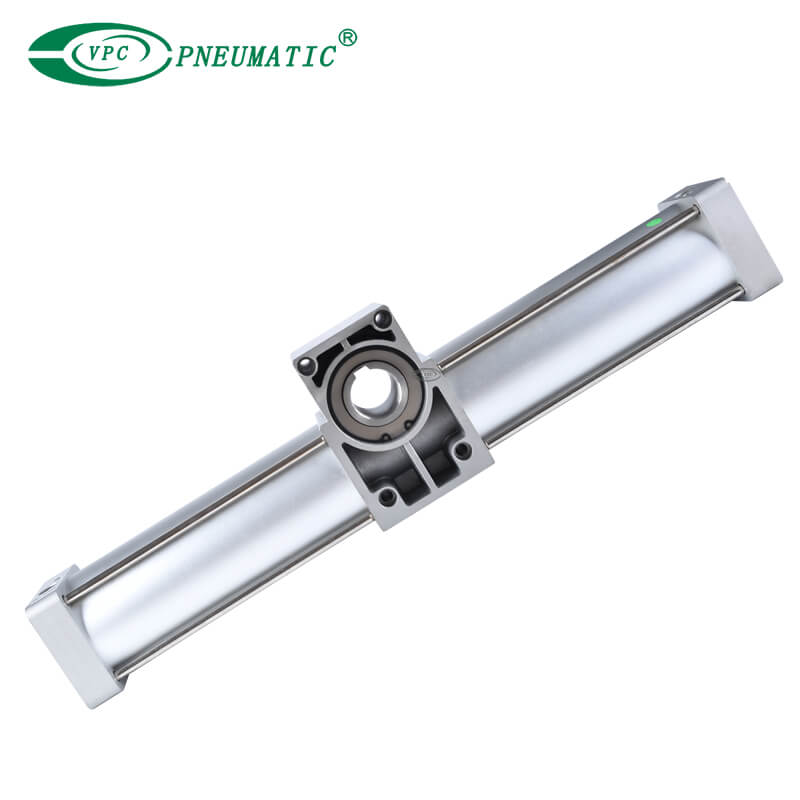

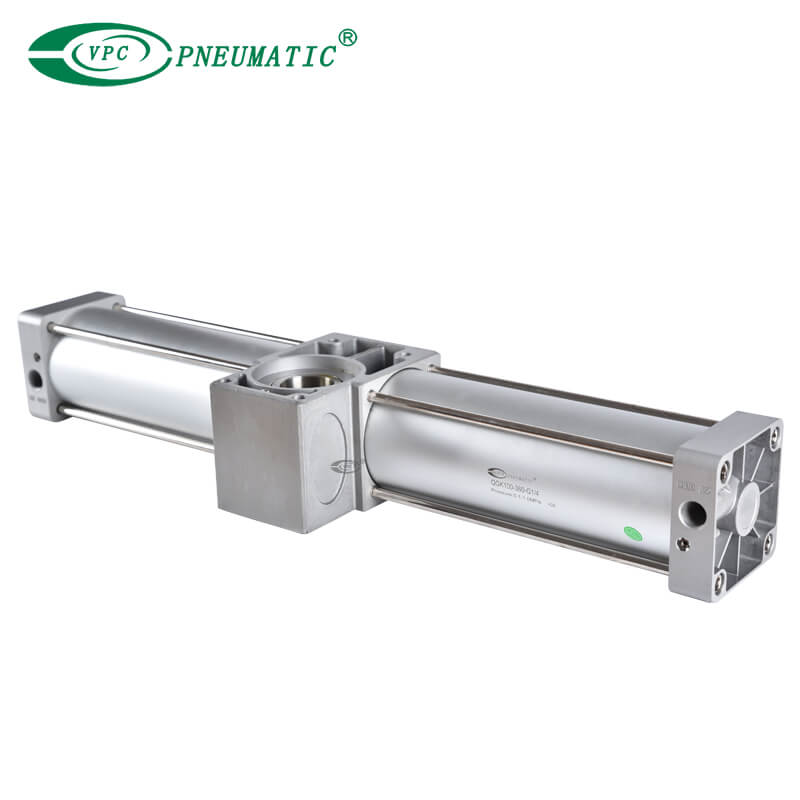

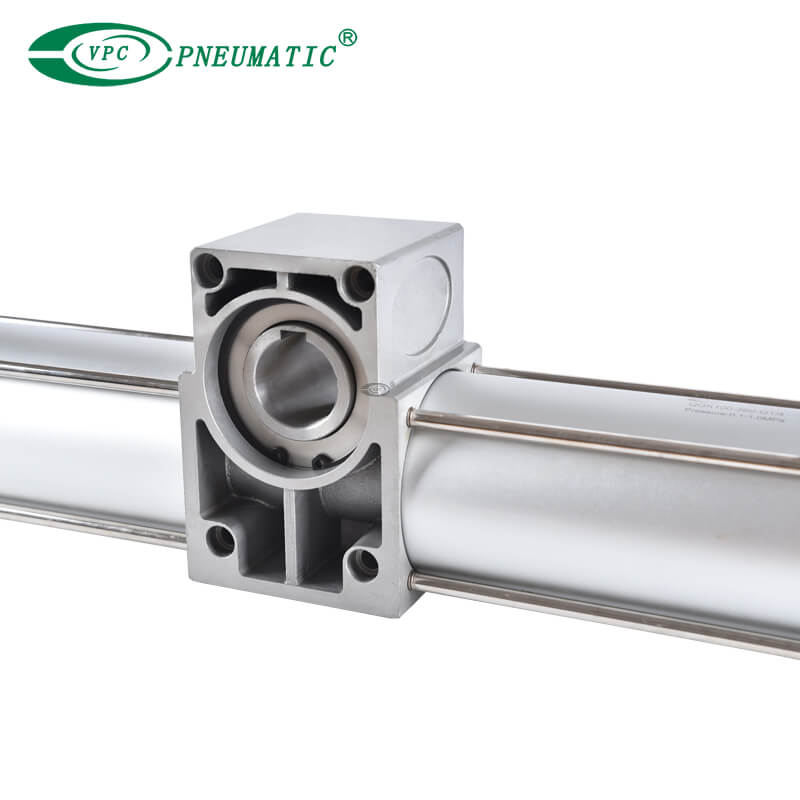

QGK Series Rack and Pinion Rotary Cylinder

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
GQK series rack and pinion rotary actuator are designed to convert the linear motion of the piston through the rack and pinion into the rotary motion of the cylinder on the output shaft (gear) by wear compensating the rack and pinion. Designed for precise positioning and motion control in a variety of industrial applications.

  • QGK100-360-G

  • VPC Pneumatic

Body material:
Bore:
Rotating angle:
Availability:

Product Description

Product Feature

1. Offers accurate rotational control for precise positioning applications.

2. Terminal with adjustable air buffer, no shock at the end of the rotary stroke.

3. Cylinder structure is compact, rotary angle can be selected according to standard, no oil lubrication, no exhaust pollution.

4. When QGKJ adjustable structure is selected, the rotation angle can be adjusted to +8°.

5. The cylinder can be installed with the specified magnetic switch, and the rotary box has a mounting port.

※ This is a custom air cylinder. Please contact VPC for other specifications.


Applications

1. Automation Systems: Ideal for robotic arms and automated assembly lines.

2. CNC Equipment: Used in precise machining and fabrication processes.

3. Packaging Machinery: Employed in filling, sealing, and labeling tasks.

4. Conveyor Systems: Facilitates movement and direction of products in material handling.

5. Textile and Printing: Supports accurate operations in fabric cutting and printing.

6. Food Processing: Applied in machinery that requires easy sanitization and maintenance.





Product Specifications

Specifications

Bore size3240506380100125
Acting typeRack and pinion(Double acting)
Working mediumAir(to be filtered by 40um filter element)
Working pressure0.2 to 1.0 MPa
Proof pressure1.5 MPa
Temperature﹣20 to 70 ℃
Angle adjustment range90°, 180°, 360°
0.5MPa Torque (Nm)69.5155589140346
Port sizeG1/8G1/4G3/8G1/2
Pinion mounting portsPinion shaft mountingPinion bore mounting

* For more information about QGK rotary actuators, please contact VPC.
