VMK20 Coaxial Valves, 2/2 Way Externally Controlled, Aluminium Valve Body

VMK Series coaxial valve manifold integrates multiple VMK coaxial valves on a single compact base plate, allowing one high-pressure pump to switch and control several coolant or lubrication lines. With a straight-through coaxial flow path, the manifold maintains low pressure loss across all channels, ensuring stable flow delivery even in high-pressure applications.

Model:
VMK20-10
Brand:
VPC Pneumatic

Module type:	2/2 way externally controlled valve
Valve type:	3/2 way internal guide valve
Pressure range:	0 to 150 bar
Orifice:	DN 20 to 25mm
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. Reliability in High-Pressure & Contaminated Media

·Diaphragm-free design, anti-clogging
·Pressure-balanced spool reduces sticking
·Long sealing life, less downtime

2. Fast & Stable Switching

·Light-load spool for rapid actuation
·Stable response for high-frequency cycles

3. High Flow, Low Pressure Loss

·Straight-through coaxial flow path
·Higher flow than poppet/diaphragm valves of same size

4. Modular Manifold Option

·Integrates 2–4 valves on one manifold
·One pump controls multiple outlets; compact and easy to service

5. Broad Media Compatibility

·Water- / oil-based coolants
·Emulsions, lubricants, medium-viscosity fluids

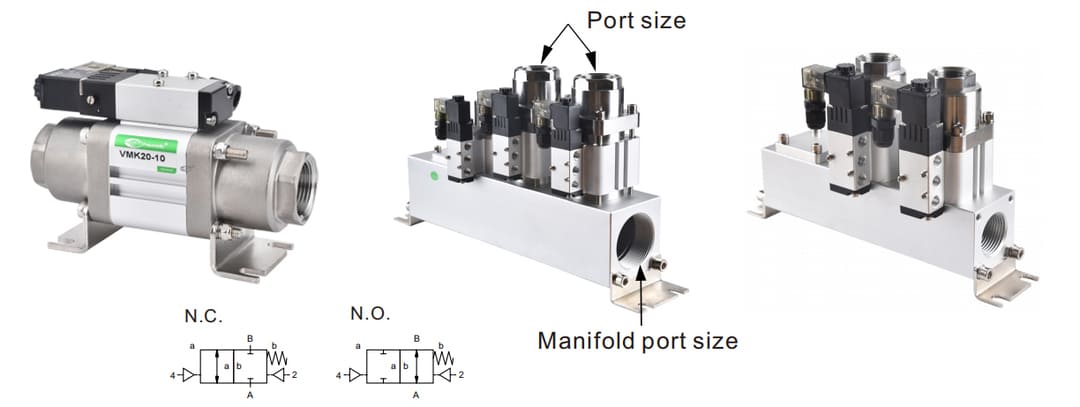

■ Symbol

pneumatic coaxial valve

Product Specifications

Model	VMK, VMK3V, VMK4V
Working medium	Liquid
Control type	Normal closed / Normal open
Working pressure	Low pressure: 0 to 1.0MPa, High pressure: 0 to 10MPa
Working temperature	-20 to 160 ℃
Switching times	50 to 3000 ms
Actuation	Standard pilot solenoid valve
Valve body	Aluminium or Stainless steel
Module body	Aluminium or Stainless steel
Seal materials	HNBR/TPU/PTFE
Energized protection	IP 65
Energized duty rating	ED 100%
Kv value (A→B)	8.8 to 13.3 m³/h

Product Dimensions

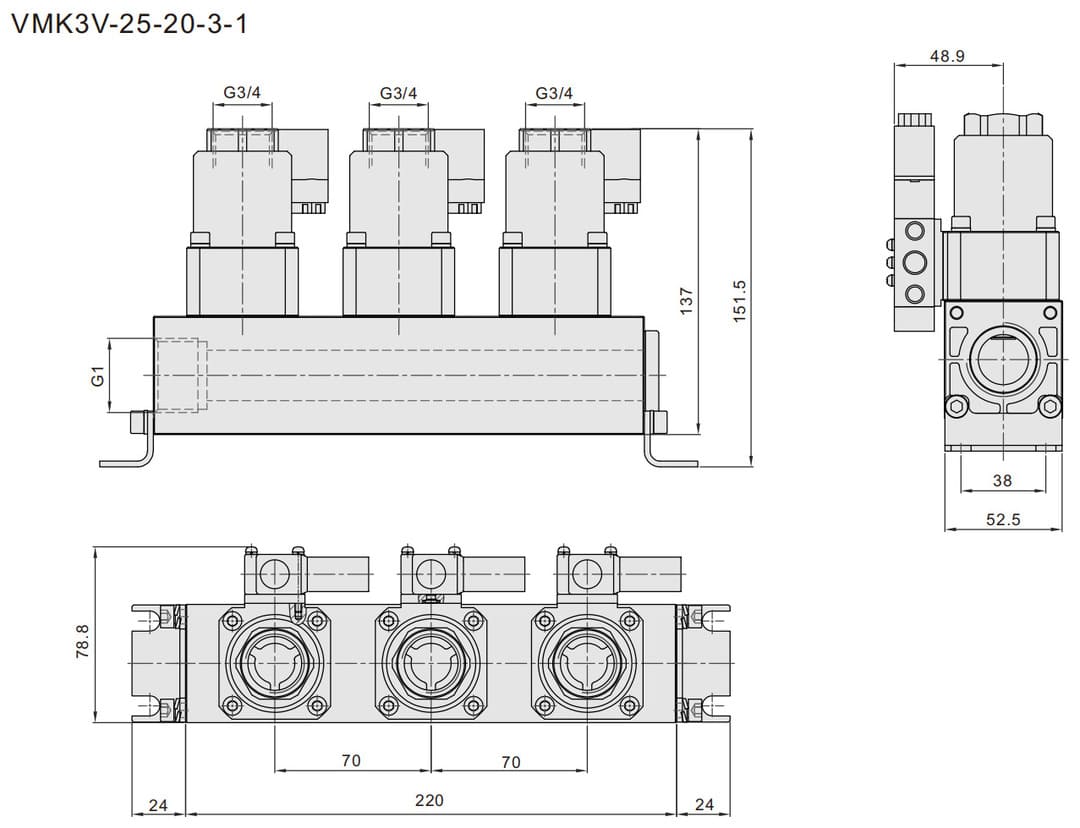

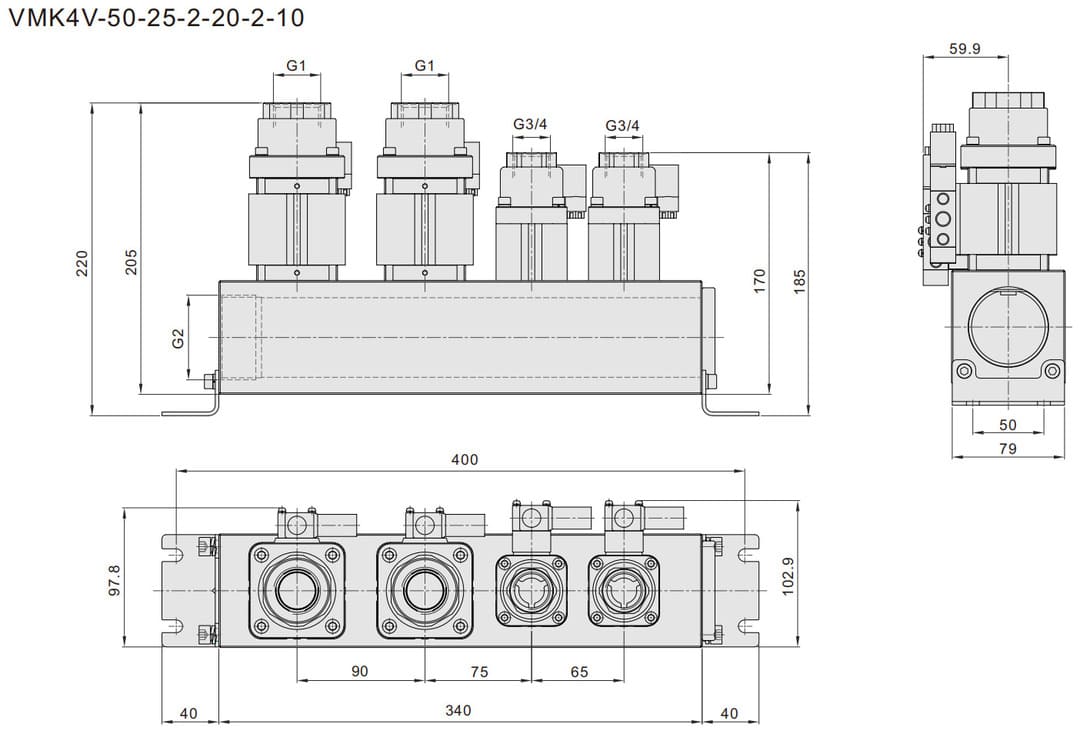

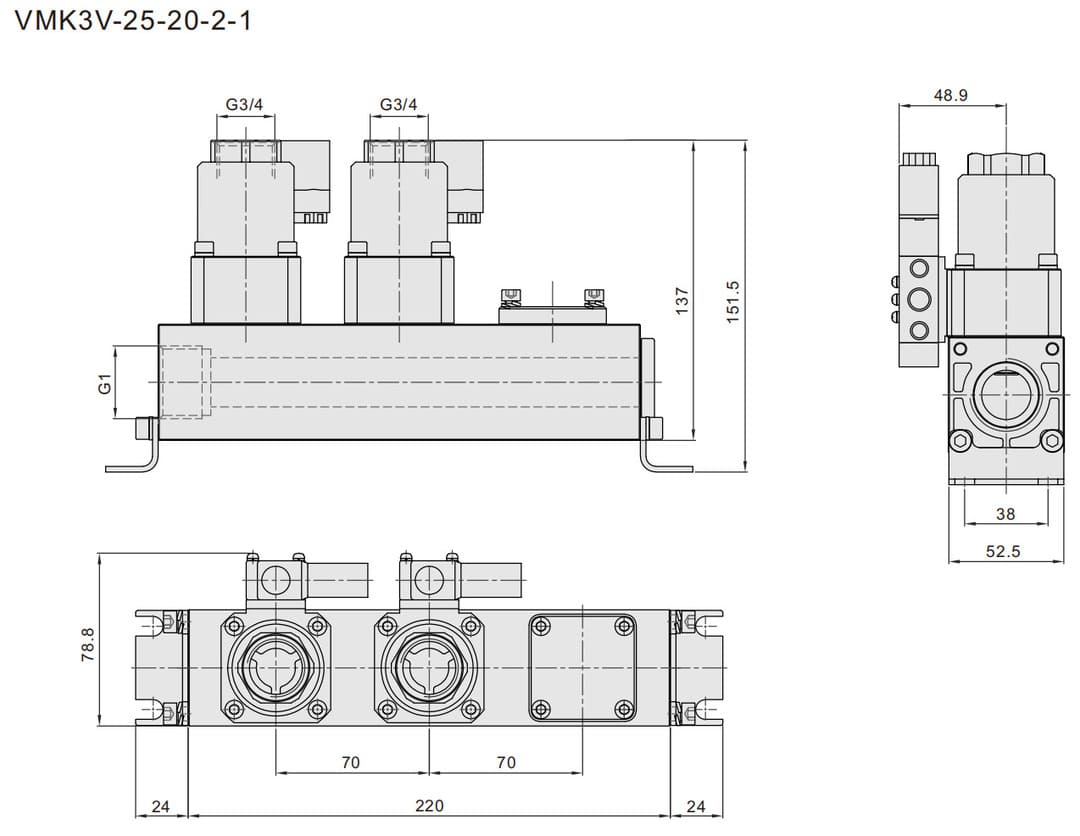

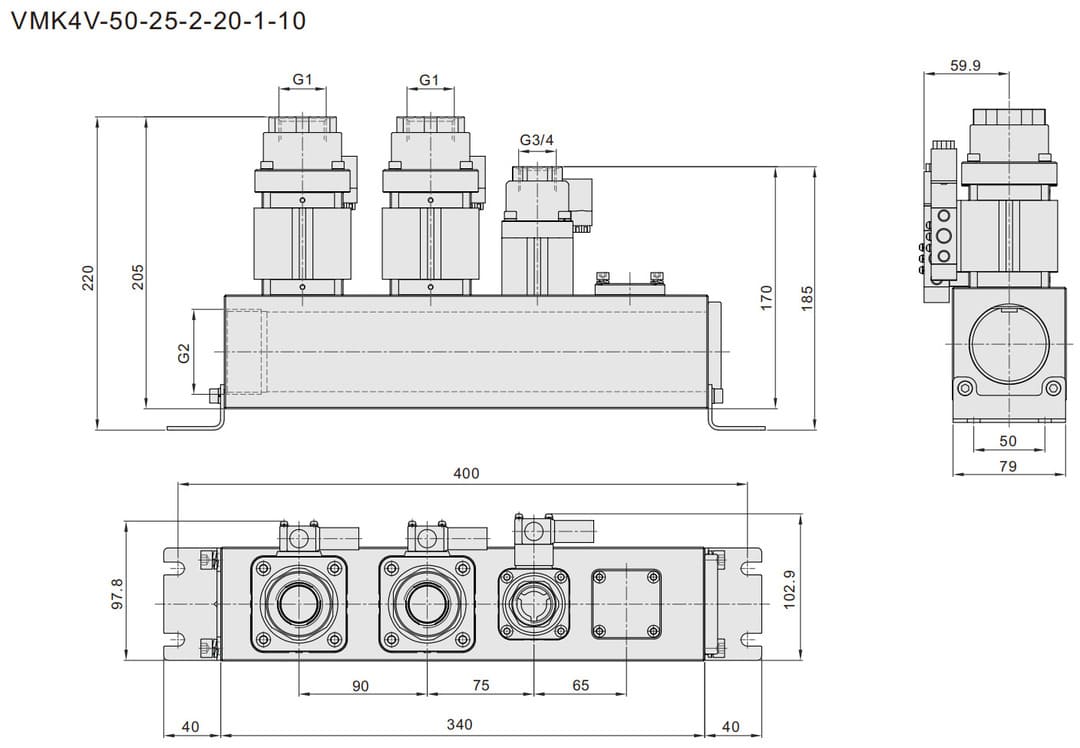

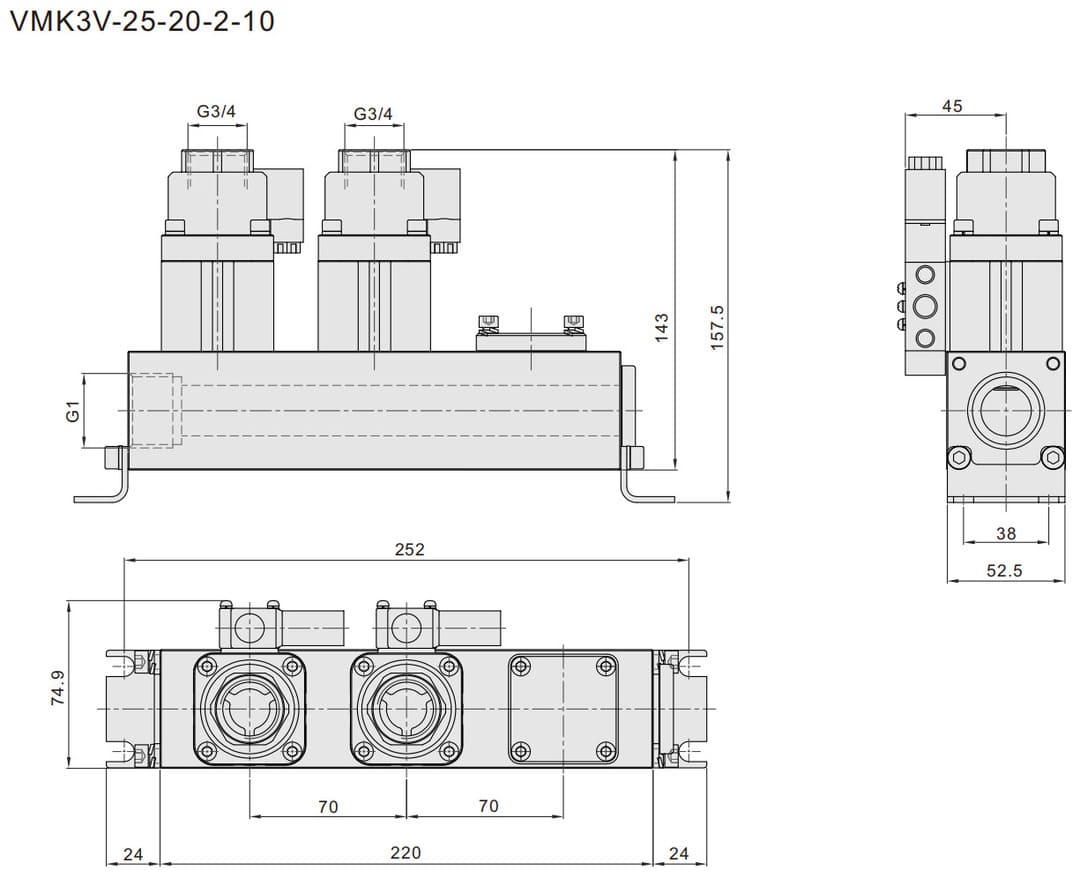

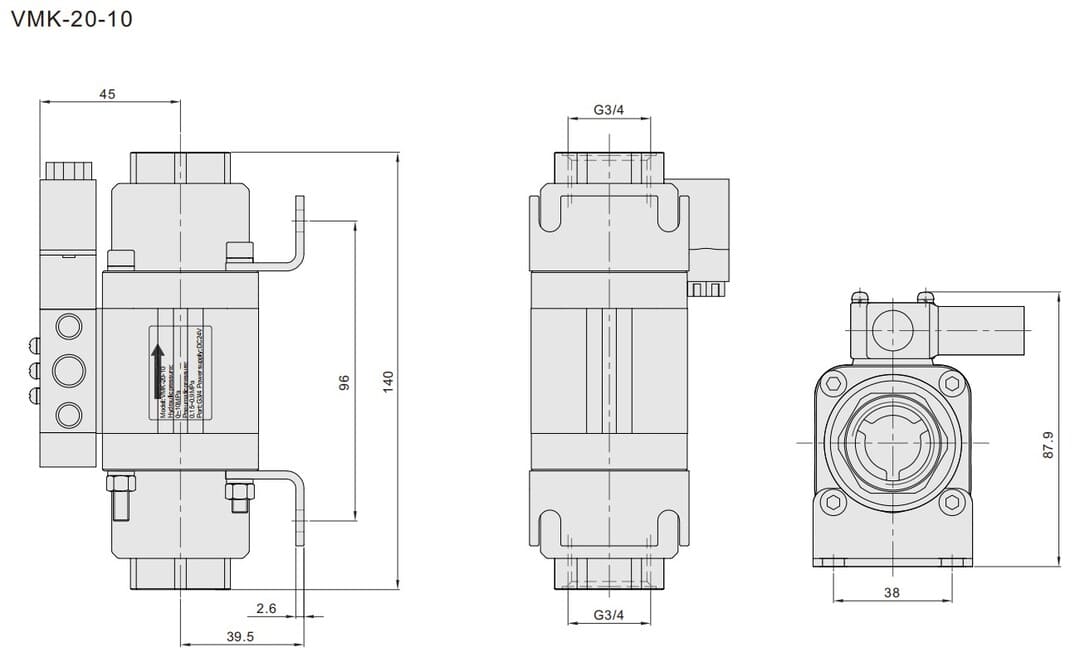

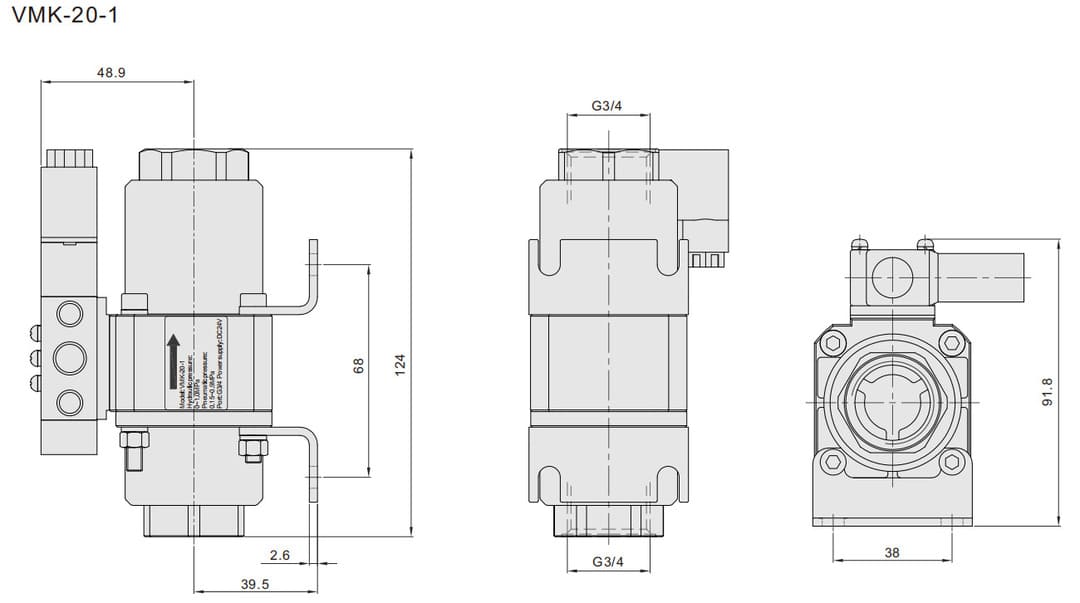

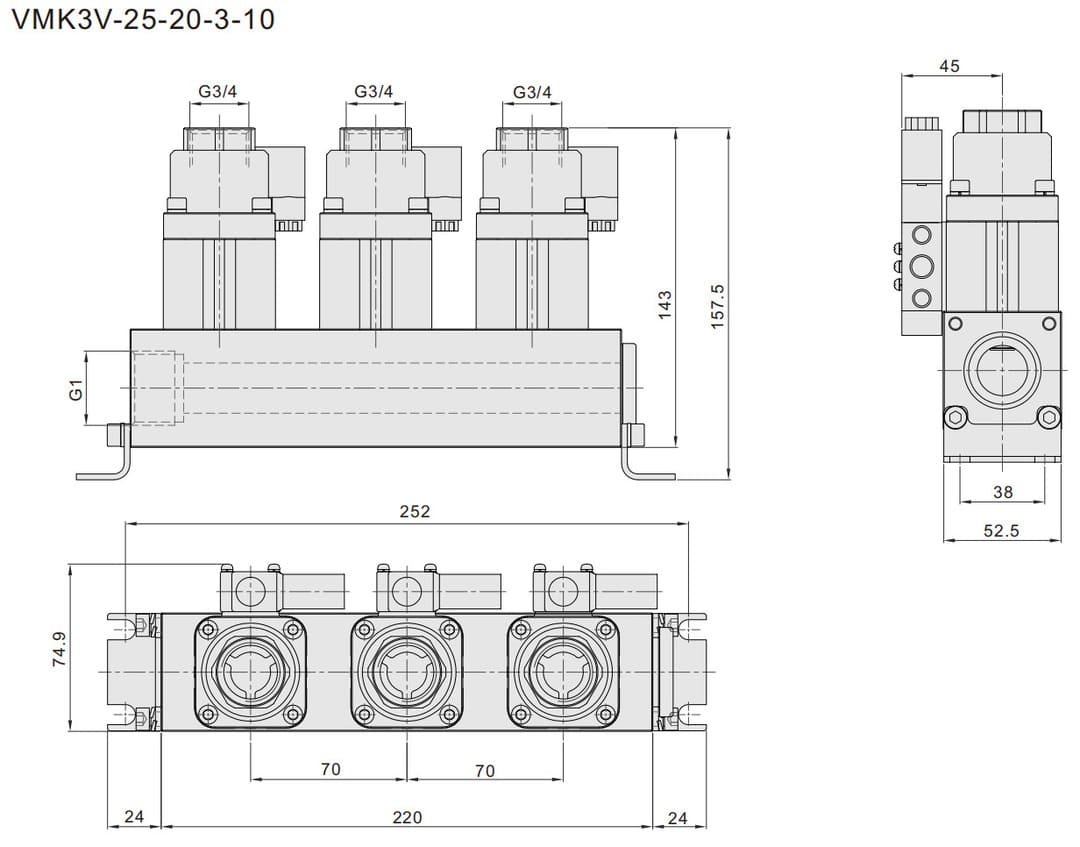

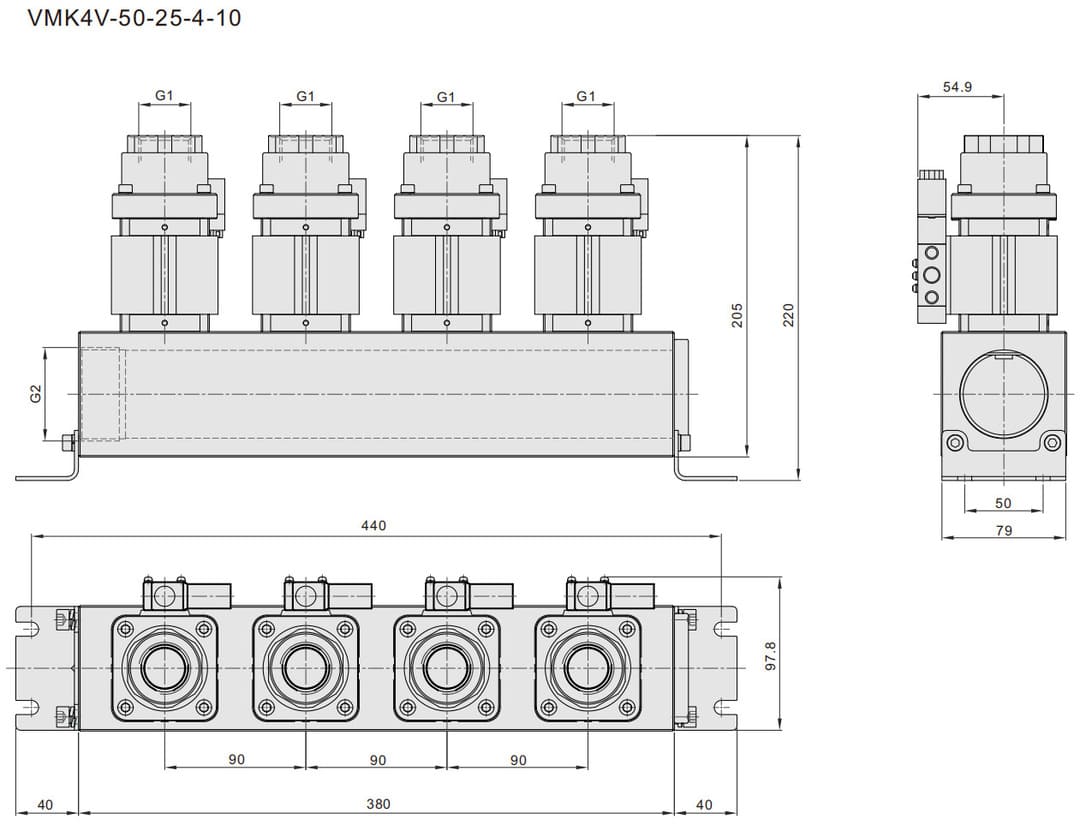

■ Main Dimensions
