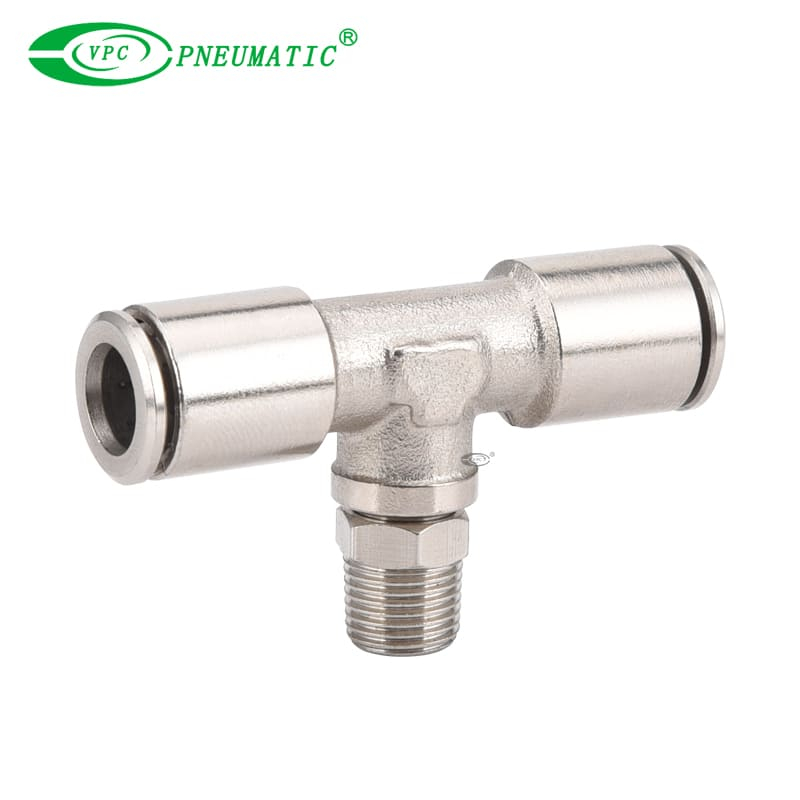

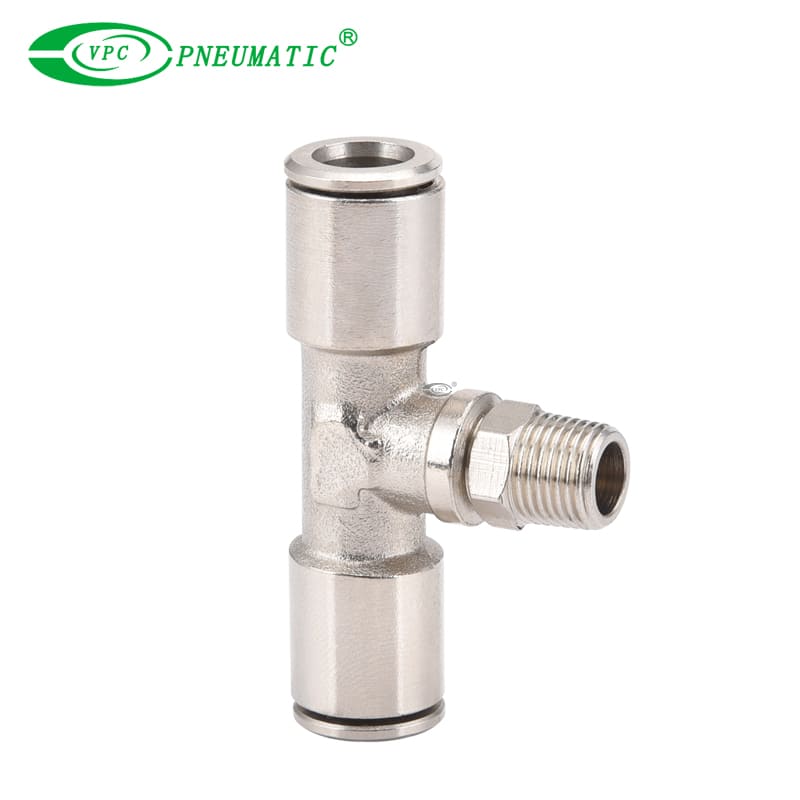

VMPB Brass Male Thread Tee Fitting

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Compact and lightweight, the VMPB one-touch fitting uses electroless nickel plated brass fittings as standard specification.
  2. VMPB fittings can be used with fluid, and in environments having a large temperature change. Applicable tube sizes are Ø3.2 to Ø16 and 1/8" to 1/2".
  3. VPMB is available with M, R, Rc, UNF, NPT or G connection threads.
  • VMPB04

  • VPC Pneumatic

  • 39174000

Applicable tube:
Thread:
Material:
Availability:

Product Description

Internal Structure

brass one touch fitting

Applicable fluid type Air, Water(No Drinking Water),Vacuum
Working pressure range -14 to 150 PSI -0.99 to 10Bar
Working temperature range -4 ℉ to 160℉ -15℃ to 71℃
Vacuum rating 0 to 28''Hg
Recommanded tubings PA,PE,PU,FEP,PFA

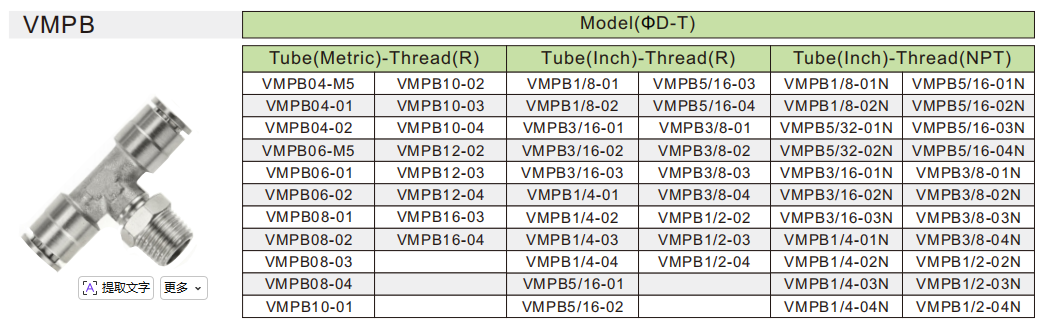

Product Specifications

ModelTube Size(MM)Thread
VMPB4-M54M5x8
VMPB4-M64M6x1.0
VMPB4-014R 1/8
VMPB4-024R 1/4
VMPB6-M56M5x8
VMPB6-M66M6x1.0
VMPB6-016R 1/8
VMPB6-026R 1/4
VMPB6-036R 3/8
VMPB6-046R 1/2
VMPB8-018R 1/8
VMPB8-028R 1/4
VMPB8-038R 3/8
VMPB8-048R 1/2
VMPB10-0110R 1/8
VMPB10-0210R 1/4
VMPB10-0310R 3/8
VMPB10-0410R 1/2
VMPB12-0112R 1/8
VMPB12-0212R 1/4
VMPB12-0312R 3/8
VMPB12-0412R 1/2
