| Applicable tube: | |
|---|---|
| Body Material: | |
Product Description

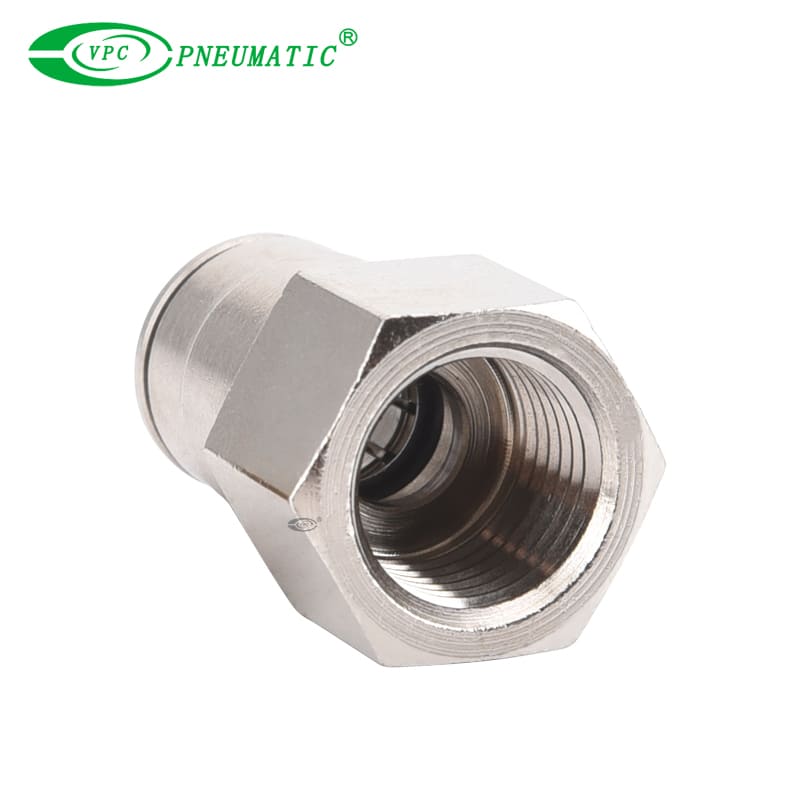

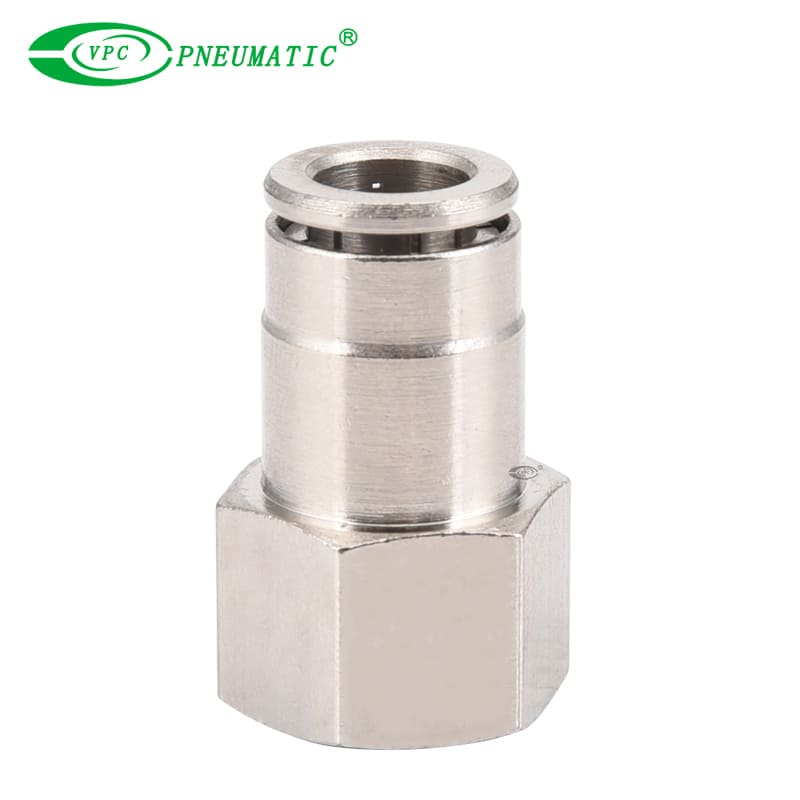

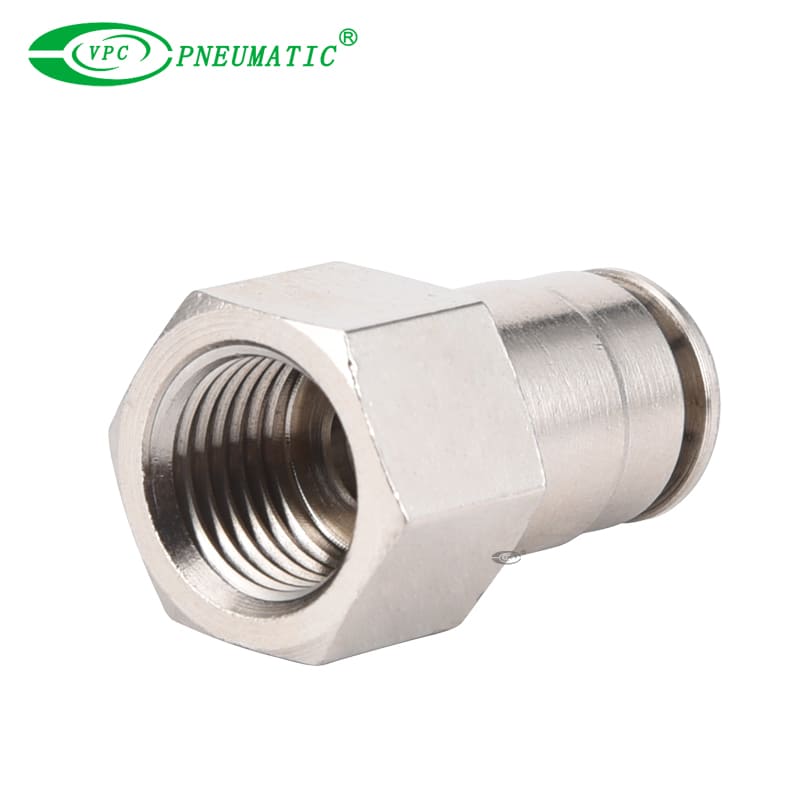

1. The main and auxiliary components of the pneumatic tubing fittings are made of brass.
2. These fittings offer excellent flame resistance, heat resistance, and spatter protection.
3. When connecting or disconnecting tubing, simply press down the release sleeve to insert or remove the tube easily without causing damage.
4. For straight, tee, and cross fittings, once installed, the fitting body can be rotated to conveniently adjust the tubing direction.
■ Tube Size
| Tube (Metric) | Tube (Inch) | ||||||||||||
| Code | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/14 | 5/16 | 3/8 | 1/2 |
| Tube Outside | Ф4 | Ф6 | Ф8 | Ф10 | Ф12 | Ф14 | Ф16 | Ф5/32 | Ф3/16 | Ф1/14 | Ф5/16 | Ф3/8 | Ф1/2 |
■ Thread
| Thread (Metric) | ||||||||
| Code | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Thread | M5×0.8 | M6×1.0 | M8×1.0 | M10×1.0 | M12×1.25 | M14×1.5 | M16×1.5 | M20×1.5 |
| 55° Thread (R) | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Thread | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| Thread (UNF) | US Thread 60° | |||||
| Code | U10 | 01N | 02N | 03N | 04N | 06N |
| Thread | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
Product Specifications
| Working medium | Air, Water |
| Working pressure | 0 to 1.0 Mpa |
| Vacuum pressure | -100 kPa |
| Working temperature | 0 to 60 ℃ |
| Applicable Tube | Nylon, PU, PE and other hose |

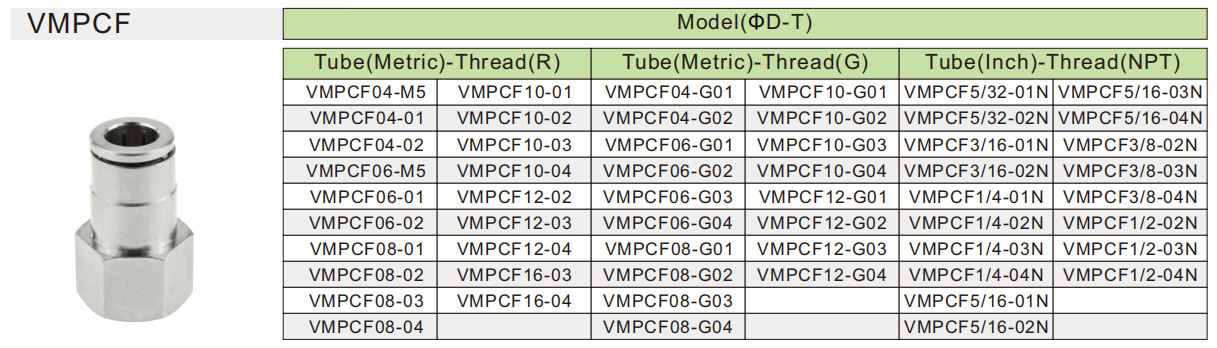

| Model (ΦD-T) | |
| Tube (Metric)-Thread (G) | |
| VMPCF04-M5 | VMPCF10-01 |
| VMPCF04-01 | VMPCF10-02 |
| VMPCF04-02 | VMPCF10-03 |
| VMPCF06-M5 | VMPCF10-04 |
| VMPCF06-01 | VMPCF12-02 |
| VMPCF06-02 | VMPCF12-03 |
| VMPCF08-01 | VMPCF12-04 |
| VMPCF08-02 | VMPCF16-03 |
| VMPCF08-03 | VMPCF16-04 |
| VMPCF08-04 | - |
