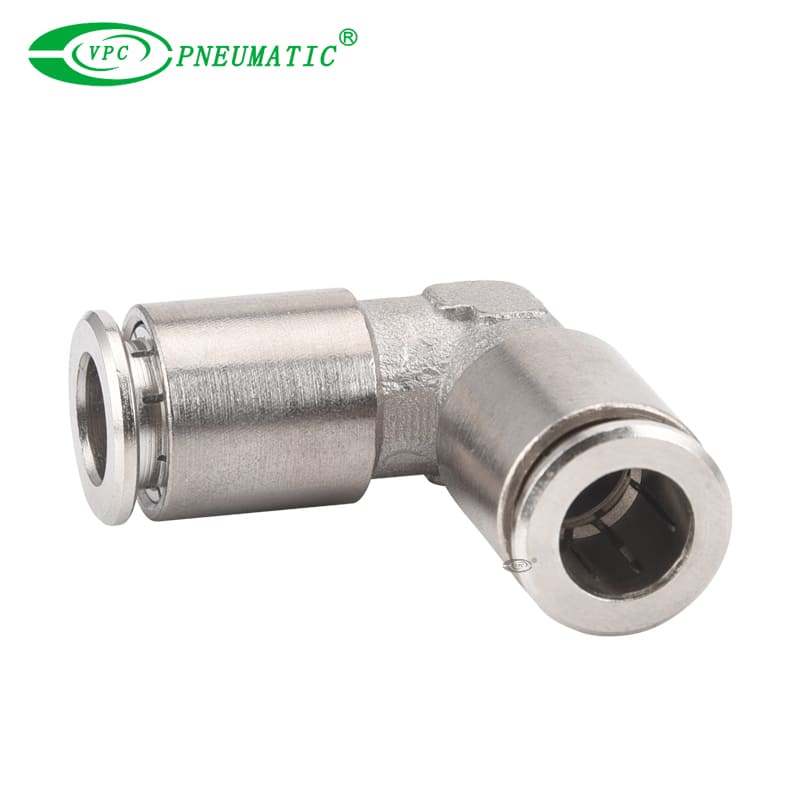

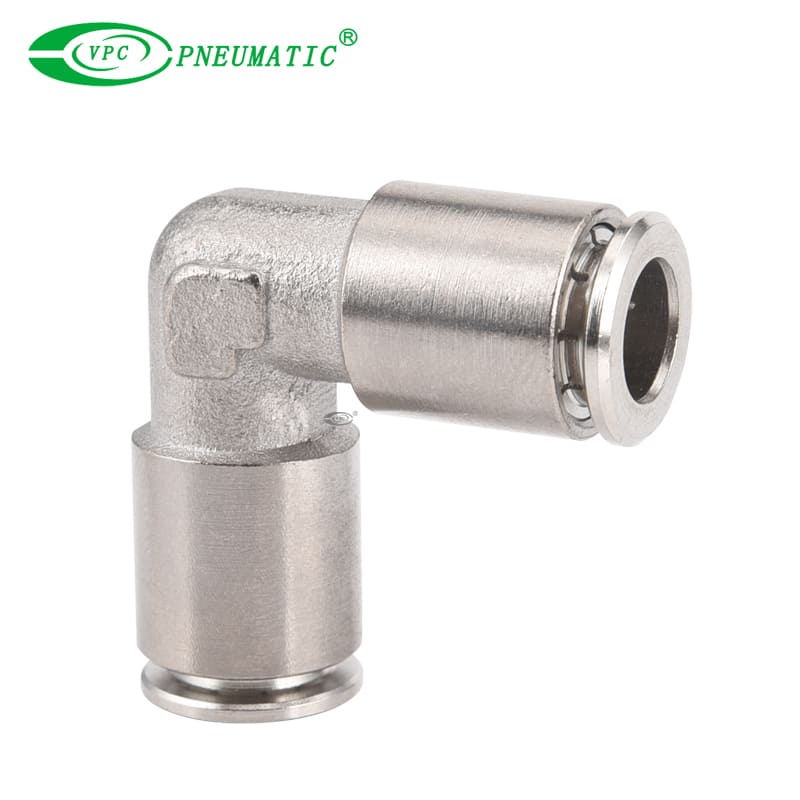

VMPV Brass Elbow Fitting

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Compact and lightweight, the VMPV one-touch fitting uses electroless nickel plated brass components as standard specification.
  2. VMPV fittings can be used with fluid, and in environments having a large temperature change. Applicable tube sizes are Ø3.2 to Ø16 and 1/8" to 1/2".

  • VMPV06

  • VPC Pneumatic

  • 39174000

Applicable tube:
PA,PE,PU,FEP,PFA
Material:
Nickel plated brass
Availability:
Inquire Add to Basket

Product Description

■Internal Structure

brass one touch fitting

Applicable fluid type Air, Water(No Drinking Water),Vacuum
Working pressure range -14 to 150 PSI -0.99 to 10Bar
Working temperature range -4 ℉ to 160℉ -15℃ to 71℃
Vacuum rating 0 to 28''Hg
Recommanded tubings PA,PE,PU,FEP,PFA

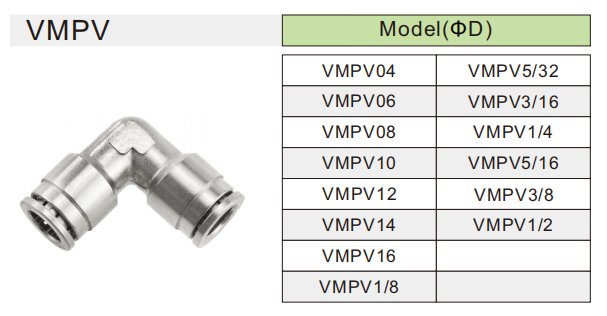

Product Specifications

ModelTube Size(MM)
VMPV044
VMPV066
VMPV088
VMPV1010
VMPV1212
ModelTube Size(Inch)
VMPV5/325/32
VMPV1/41/4
VMPV5/165/16
VMPV3/83/8
VMPV1/21/2

PDF Download

download Brass One Touch-in Fitting.pdf
