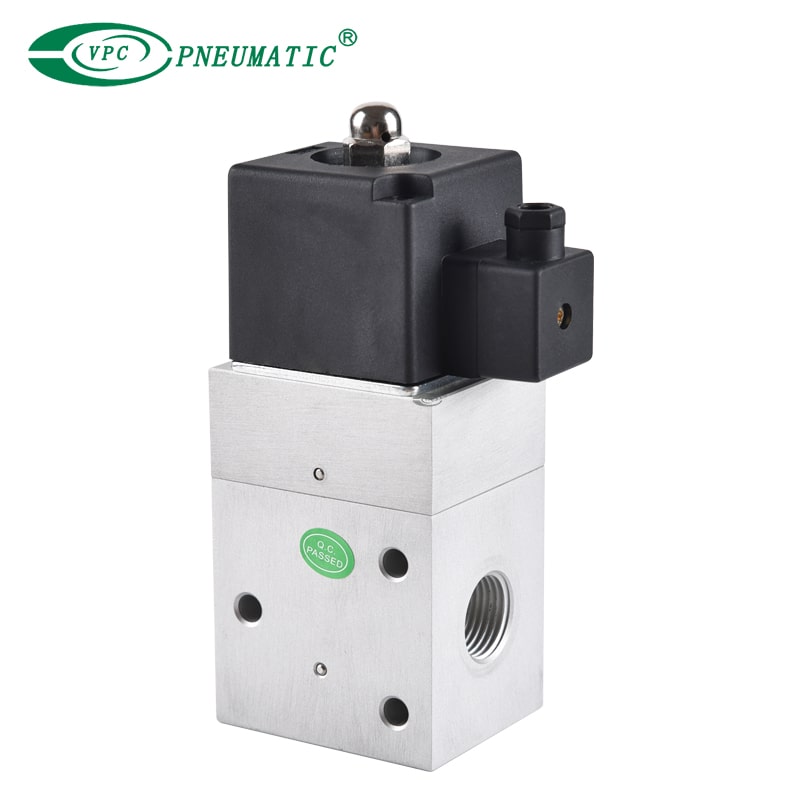

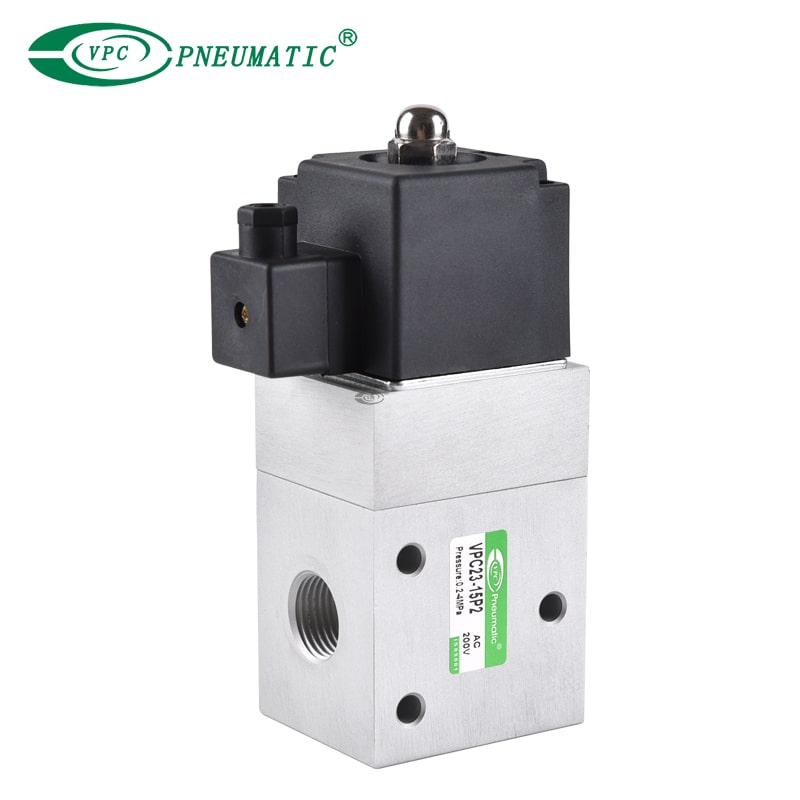

VPC Series 3/2 Way High Pressure Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
A high pressure aluminium 3-way 2 position normally closed air solenoid valve. With a pressure range of 1.5 to 35 Bar it is well suited to high pressure and high flow applications. Features nitrile seats, aluminium body and reinforced plastic end cap. It can handle media up to 50°C. Typical applications include: bottle blowing machines and air blasting.

  • VPC23-15P2

  • VPC

  • 8481804090

Standard voltage:
Guaranteed pressure:
Availability:

Product Description

ModelVPC23-8VPC23-8P2VPC23-15VPC23-15P2
Working mediumAir
Acting typeNormally closed
Working pressure0.15 to 3.5MPa (1.5 to 35Bar)
Working temperature-5 to 50℃
Orifice8mm15mm
BodyAluminium
SeatNBR
LubricationNot Required
Voltages availableDC12V, DC24V, AC110V, AC220V
Port sizeG1/4G1/2
